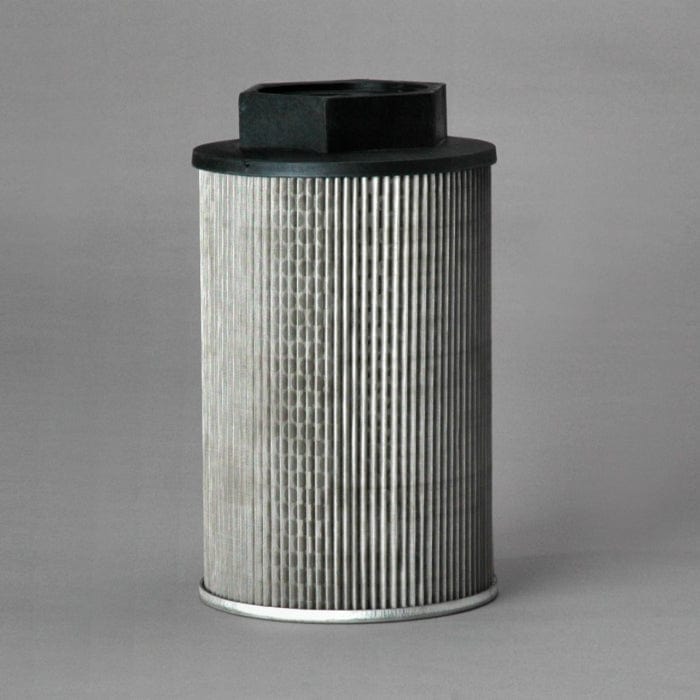

Hydraulic Filter, Strainer - Donaldson P562242

Hydraulic Filter, Strainer - Donaldson P562242

£47.72
£47.72
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P562242

Hydraulic Filter, Strainer
Outer Diameter 5.20 inch (132.1 mm)
Inner Diameter 3.30 inch (83.82 mm)
Thread Size 2 1/2 NPT
Length 7.60 inch (193.04 mm)
Efficiency Beta 2 149 micron
Style Strainer
Media Type Wire Mesh
View full details

Specifications

Attributes

  • Mesh Rating: 150 micron
  • Outer Diameter: 132.1 mm (5.20 inch)
  • Inner Diameter: 83.82 mm (3.30 inch)
  • Thread Size: 2 1/2 NPT
  • Length: 193.04 mm (7.60 inch)
  • Efficiency Beta 2: 149 micron
  • Style: Strainer
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.138 m (5.50 inch)
  • Packaged Width: 0.135 m (5.40 inch)
  • Packaged Height: 0.315 m (12.60 inch)
  • Packaged Weight: 0.613 kg (1.35 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330151228

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
FLOW EZY P75212100
LHA PEC75212100
