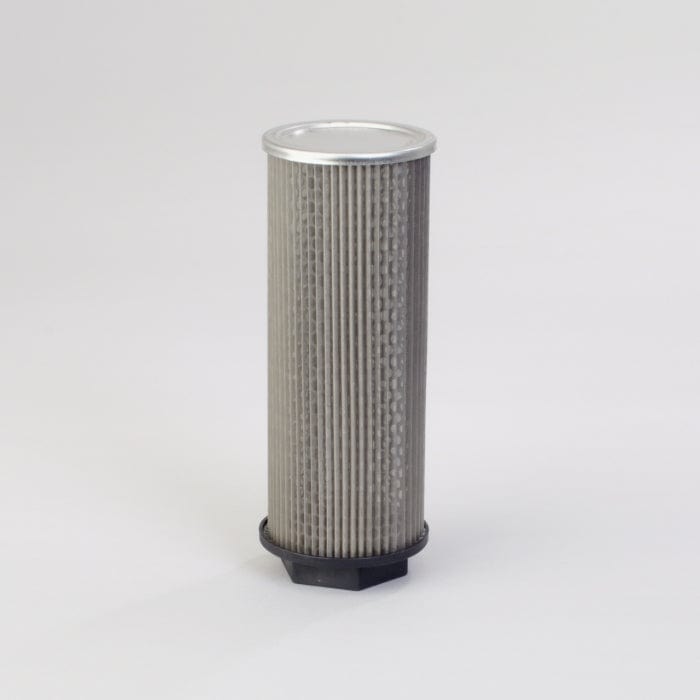

Hydraulic Filter, Strainer - Donaldson P562238

Hydraulic Filter, Strainer - Donaldson P562238

£35.41
£35.41
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P562238

Hydraulic Filter, Strainer
Outer Diameter 4.00 inch (101.6 mm)
Inner Diameter 2.80 inch (71.12 mm)
Thread Size 2 NPT
Length 9.70 inch (246.38 mm)
Efficiency Beta 2 149 micron
Style Strainer
Media Type Wire Mesh
View full details

Specifications

Attributes

  • Mesh Rating: 150 micron
  • Outer Diameter: 101.6 mm (4.00 inch)
  • Inner Diameter: 71.12 mm (2.80 inch)
  • Thread Size: 2 NPT
  • Length: 246.38 mm (9.70 inch)
  • Efficiency Beta 2: 149 micron
  • Style: Strainer
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.105 m (4.20 inch)
  • Packaged Width: 0.105 m (4.20 inch)
  • Packaged Height: 0.305 m (12.20 inch)
  • Packaged Weight: 0.445 kg (0.98 lb)
  • Packaged Volume: 0.003 m3 (0.12 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330151181

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ARGO AS09901
FLOW EZY P50112100
GROVE 212131
LHA PEC502100
MANITOU 77402

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
MANITOU ML 635 TURBO 2003 TELEHANDLER ML SERIES PERKINS 1104C-44T -
MANITOU MT 1235 S 2006 TELEHANDLER MT SERIES PERKINS 1104C-44 -
MANITOU MT 1235 S TURBO 2006 TELEHANDLER MT SERIES PERKINS 1104C-44T -
MANITOU MT 1335 SL 2003 TELEHANDLER MT SERIES PERKINS 1104C-44 -
MANITOU MT 1435 SL 2006 TELEHANDLER MT SERIES PERKINS 1104C-44 -
MANITOU MT 1740 SL TURBO 2003 TELEHANDLER MT SERIES PERKINS 1004C-44T -
MANITOU MT 1740 SL TURBO ULTRA 2003 TELEHANDLER MT SERIES PERKINS 1104C-44T -
MANITOU MT 940 L TURBO 2003 TELEHANDLER MT SERIES PERKINS 1104C-44T -
