• Donaldson Hydraulic Filter, Strainer - Donaldson P562212
1 1

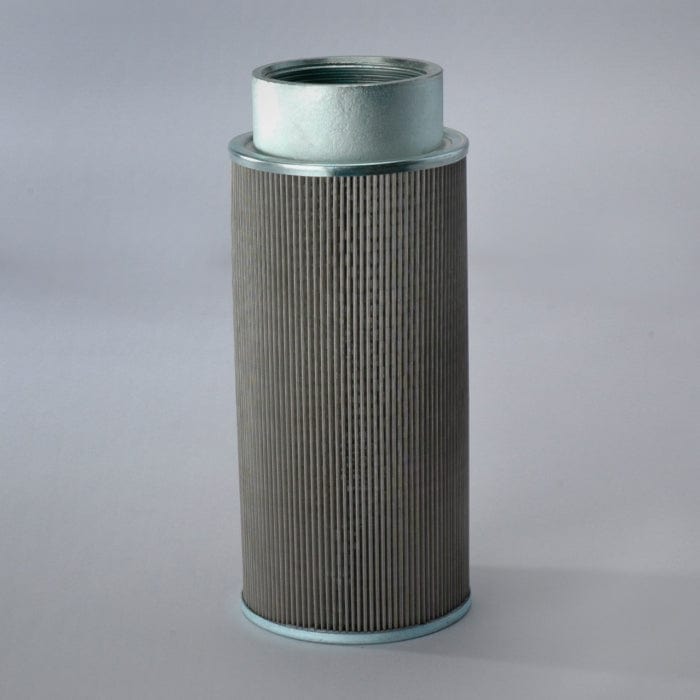

Hydraulic Filter, Strainer - Donaldson P562212

Hydraulic Filter, Strainer - Donaldson P562212

£100.13
£100.13
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P562212

Hydraulic Filter, Strainer
View full details

Specifications

Attributes

  • Mesh Rating: 250 micron
  • Outer Diameter: 130.1 mm (5.12 inch)
  • Inner Diameter: 101.6 mm (4.00 inch)
  • Thread Size: 3 NPT
  • Length: 299.72 mm (11.80 inch)
  • Efficiency Beta 2: 238 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.2 bar (3 psi)
  • Style: Strainer
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.138 m (5.50 inch)
  • Packaged Width: 0.138 m (5.50 inch)
  • Packaged Height: 0.315 m (12.60 inch)
  • Packaged Weight: 1.521 kg (3.35 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330150931

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
FLOW EZY AS100360RV3
FLOW EZY P100360
LHA SEC100360RV3
