• Donaldson Hydraulic Filter, Strainer - Donaldson P173917
1 1

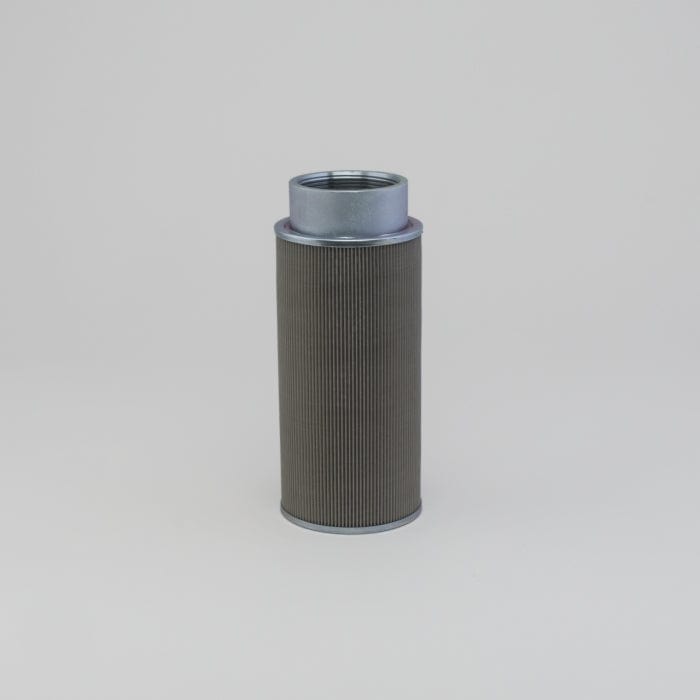

Hydraulic Filter, Strainer - Donaldson P173917

Hydraulic Filter, Strainer - Donaldson P173917

£117.63
£117.63
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P173917

Hydraulic Filter, Strainer
View full details

Specifications

Attributes

  • Mesh Rating: 150 micron
  • Outer Diameter: 130.1 mm (5.12 inch)
  • Thread Size: 3 NPT
  • Length: 261.62 mm (10.30 inch)
  • Overall Length: 299.72 mm (11.80 inch)
  • Efficiency Beta 2: 150 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.2 bar (3 psi)
  • Style: Strainer
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.318 m (12.70 inch)
  • Packaged Width: 0.135 m (5.40 inch)
  • Packaged Height: 0.135 m (5.40 inch)
  • Packaged Weight: 1.491 kg (3.29 lb)
  • Packaged Volume: 0.006 m3 (0.21 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421298090
  • UPC Code: 742330024386

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 3257435
FLOW EZY AS1003100RV3
FPC SE100100RB3
FPC ST100100RB3
HEIL 750959001
HEIL 0750959001
HEIL H10750959001
JOHN DEERE 700046000
JOHN DEERE 700046000J
LENZ 4920100
LHA SEC1003100RV3
MCNEILUS 1108790
VICKERS OF3243RV10

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
JOHN DEERE 753G - FELLER BUNCHER 700 SERIES JOHN DEERE 6081H -
JOHN DEERE 753GL - FELLER BUNCHER 700 SERIES JOHN DEERE 6081H -

Operation

Maintenance

Health And Safety
