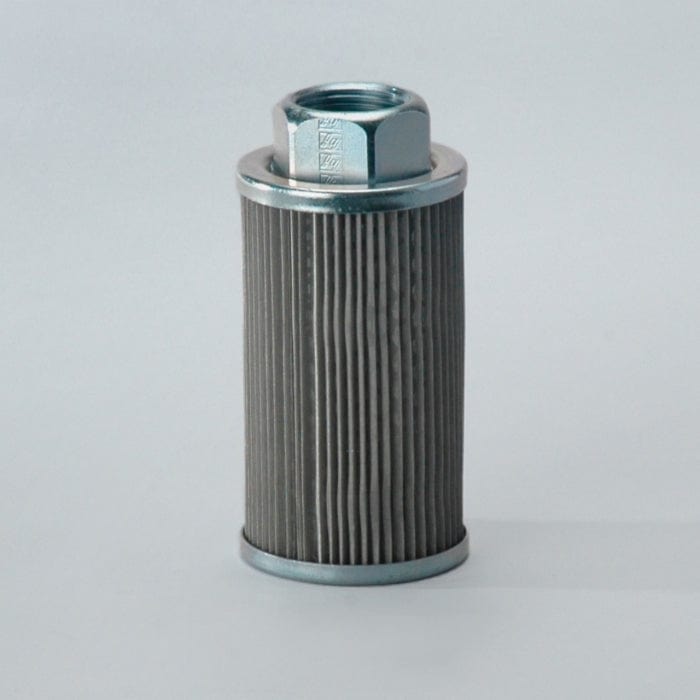

Hydraulic Filter, Strainer - Donaldson P173911

Attributes

• Mesh Rating: 150 micron
• Outer Diameter: 66.8 mm (2.63 inch)
• Thread Size: 1 NPT
• Length: 135.89 mm (5.35 inch)
• Efficiency Beta 2: 150 micron
• Bypass Valve: Yes
• Bypass Valve Setting LR: 0.2 bar (3 psi)
• Style: Strainer
• Media Type: Wire Mesh

Packaged Dimensions

• Packaged Length: 0.080 m (3.20 inch)
• Packaged Width: 0.075 m (3.00 inch)
• Packaged Height: 0.150 m (6.00 inch)
• Packaged Weight: 0.288 kg (0.64 lb)
• Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 133320
• HTS Code: 8421298090
• UPC Code: 742330024324
