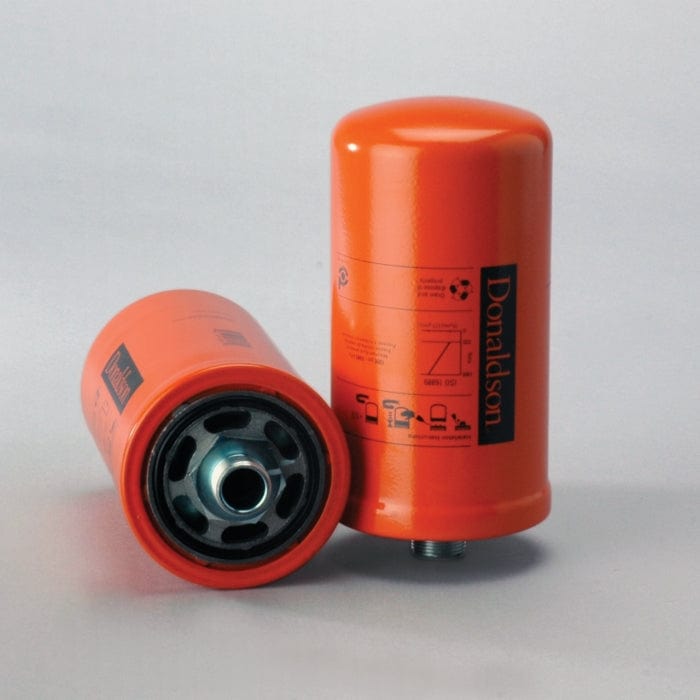

Hydraulic Filter, Spin-On Duramax - Donaldson P764729
Hydraulic Filter, Spin-On Duramax - Donaldson P764729
Regular price
£27.04
Regular price
Sale price
£27.04
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P764729
Hydraulic Filter, Spin-On DuramaxShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 94 mm (3.70 inch)
- Thread Size: M24 x 1.5
- Gasket OD: 70.15 mm (2.76 inch)
- Gasket ID: 63.1 mm (2.48 inch)
- Overall Length: 218 mm (8.58 inch)
- Efficiency Beta 2: 7 micron
- Efficiency Beta 1000: 23 micron
- Style: Spin-On
- Brand: Duramax®
- Media Type: Cellulose
- Primary Application: JCB 32925197
Packaged Dimensions
- Packaged Length: 0.246 m (9.84 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.099 m (3.94 inch)
- Packaged Weight: 1.030 kg (2.27 lb)
- Packaged Volume: 0.003 m3 (0.09 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069100-06
- HTS Code: 84212980 90
- UPC Code: 742330180358
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ASTRA | 126523 | |
| CASE/CASE IH | 8603535 | |
| CASE/CASE IH | 875194452 | |
| CASE/CASE IH | 47996857 | |
| CASE/CASE IH | 332202A1 | |
| DAEWOO | 47400021 | |
| DAEWOO | 501323154 | |
| DOOSAN | 97400021 | |
| DOOSAN | 47400021 | |
| DOOSAN | NR0501333764 | |
| DOOSAN | 40040900006 | |
| FAUN | 99707018315 | |
| HITACHI | 1050132354 | |
| HITACHI | 263G257011 | |
| HITACHI | YA00049017 | |
| HYDEMA | 590580 | |
| HYSTER | 4024304 | |
| HYUNDAI | ZGAQ02400 | |
| HYUNDAI | ZGAQ00001 | |
| HYUNDAI | HYZGAQ02400 | |
| JCB | 55041386 | |
| JCB | 32925905A | |
| JCB | 32925905 | |
| JCB | 32925197 | |
| JOHN DEERE | AT222005 | |
| JOHN DEERE | AT336140 | |
| JOHN DEERE | AT468647 | |
| KALMAR | 800821362 | |
| KALMAR | J022130100 | |
| KOMATSU | 42Y15HOV35 | |
| KOMATSU | 42Y15H0V35 | |
| LEKANG | 61096 | |
| LIEBHERR | 512600408 | |
| LIEBHERR | 11836791 | |
| NEW HOLLAND | 8900126523 | |
| TEREX | 15273572 | With Male Insert |
| TEREX | 15503244 | |
| TEREX | 42520612 | |
| ZF | 0501323154 | |
| ZF | 501323154 | With Connector Tube |
| ZF | 0750131061 | |
| ZF | 750131061 | |
| ZF | 0501333764 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| DOOSAN DL160 | - | LOADER WHEELED | DL SERIES | CUMMINS QSB4.5 | - |
| DOOSAN DL200 | - | LOADER WHEELED | DL SERIES | DOOSAN DL06 | - |
| DOOSAN DL250 | - | LOADER WHEELED | DL SERIES | DOOSAN DL06 | - |
| DOOSAN DL250TC | - | LOADER WHEELED | DL SERIES | DOOSAN DL06 | - |
| DOOSAN DL300 | - | LOADER WHEELED | DL SERIES | DOOSAN DL08 | - |
| DOOSAN DL400 | - | LOADER WHEELED | DL SERIES | CUMMINS QSL9 | - |
| DOOSAN DL450 | - | LOADER WHEELED | DL SERIES | CUMMINS QSM11 | - |
| DOOSAN DL500 | - | LOADER WHEELED | DL SERIES | CUMMINS QSM11 | - |
| DOOSAN MEGA 160 | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB58 | - |
| DOOSAN MEGA 160TC | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB58 | - |
| DOOSAN MEGA 200-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB58TIS | TIER 1 & 2 |
| DOOSAN MEGA 200-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB58TI | TIER 1 & 2 |
| DOOSAN MEGA 200TC-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB58TIS | - |
| DOOSAN MEGA 200TC-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB58TI | - |
| DOOSAN MEGA 250-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB1146T | - |
| DOOSAN MEGA 250-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN D1146T | - |
| DOOSAN MEGA 250-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB58TIS | - |
| DOOSAN MEGA 250-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DE08TIS | - |
| DOOSAN MEGA 300-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DE12TIA | TIER 1 |
| DOOSAN MEGA 300-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DE08TIS | - |
| FIAT KOBELCO AD25 | - | DUMP TRUCK | - | CUMMINS 6CTA8.3 | - |
| FIAT KOBELCO AD30 | - | DUMP TRUCK | - | CUMMINS QSM11 | - |
| HITACHI LX120-3 | - | LOADER WHEELED | - | JOHN DEERE 6068 | - |
| HITACHI LX150-3 | - | LOADER WHEELED | - | JOHN DEERE 6081 | - |
| HITACHI ZW180-5B | - | LOADER WHEELED | - | CUMMINS QSB6.7 | - |
| HITACHI ZW180PL | - | LOADER WHEELED | - | CUMMINS QSB6.7 | - |
| HYUNDAI HL730-7 | - | LOADER WHEELED | HL SERIES | CUMMINS 4B3.9 | - |
| HYUNDAI HL730TM-7 | - | LOADER WHEELED | HL SERIES | CUMMINS 4B3.9 | - |
| HYUNDAI HL740-7 | - | LOADER WHEELED | HL SERIES | CUMMINS QSB5.9 | - |
| HYUNDAI HL740TM-7 | - | LOADER WHEELED | HL SERIES | CUMMINS QSB5.9 | - |
| HYUNDAI HL757-7 | - | LOADER WHEELED | HL SERIES | CUMMINS QSB5.9 | - |
| HYUNDAI HL757TM-7 | - | LOADER WHEELED | HL SERIES | CUMMINS QSB5.9 | - |
| HYUNDAI HL760 | - | LOADER WHEELED | HL SERIES | CUMMINS 6CT8.3 | - |
| HYUNDAI HL770-7 | - | LOADER WHEELED | HL SERIES | CUMMINS QSC8.3 | - |
| HYUNDAI HL770-7A | - | LOADER WHEELED | HL SERIES | CUMMINS QSL9 | - |
| HYUNDAI HL780-3A | - | LOADER WHEELED | HL SERIES | CUMMINS QSM11 | - |
| JOHN DEERE 444H | - | LOADER | - | JOHN DEERE 4045 | - |
| JOHN DEERE 444H LL | - | LOADER | - | JOHN DEERE 4045 | - |
| JOHN DEERE 444H TC | - | LOADER | - | JOHN DEERE 4045 | - |
| JOHN DEERE 444J | - | LOADER | - | JOHN DEERE 4045H | - |
| JOHN DEERE 544H | - | LOADER WHEELED | - | JOHN DEERE 6068 | - |
| JOHN DEERE 544H LL | - | LOADER | - | JOHN DEERE 6068 | - |
| JOHN DEERE 544H TC | - | LOADER | - | - 544H TC | - |
| JOHN DEERE 544J | - | LOADER WHEELED | - | JOHN DEERE 6068H | - |
| JOHN DEERE 624H | - | LOADER WHEELED | - | JOHN DEERE 6068HT | - |
| JOHN DEERE 624H LL | - | LOADER | - | JOHN DEERE 6068 | - |
| JOHN DEERE 624J | - | LOADER | - | - 624J | - |
| JOHN DEERE 644H | - | LOADER WHEELED | - | - 644H | - |
| JOHN DEERE 644J | - | LOADER | - | - 644J | - |
| JOHN DEERE 724J | - | LOADER WHEELED | - | - 724J | - |
| JOHN DEERE 744J | - | LOADER WHEELED | - | JOHN DEERE 6125A | - |
| JOHN DEERE 824J | - | LOADER WHEELED | - | JOHN DEERE 6125 | - |
| JOHN DEERE TC44H | - | LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE TC54H | - | LOADER | - | - TC54H | - |
| JOHN DEERE TC62H | - | LOADER | - | JOHN DEERE 6068T | - |
| KAWASAKI 70Z7 | - | LOADER WHEELED | - | CUMMINS QSB6.7 | - |
| NEW HOLLAND F106.7 | - | GRADER | F SERIES | IVECO 667TA/EDE | TIER 3 |
| NEW HOLLAND F106.7A | - | GRADER | F SERIES | IVECO 667TA/EDE | TIER 3 |
| NEW HOLLAND F156.7 | - | GRADER | F SERIES | IVECO 667TA/EEE | TIER 3 |
| NEW HOLLAND F156.7A | - | GRADER | F SERIES | IVECO 667TA/EEE | TIER 3 |
| NEW HOLLAND W110 | - | LOADER WHEELED | W SERIES | NEW HOLLAND 445A/M2 | - |
| NEW HOLLAND W110TC | - | LOADER WHEELED | W SERIES | NEW HOLLAND 445A/M2 | - |
| NEW HOLLAND W130 | - | LOADER WHEELED | W SERIES | NEW HOLLAND 668TA/M2 | - |
| NEW HOLLAND W130C | - | LOADER WHEELED | W SERIES | IVECO F4HFE613Z | TIER 4 |
| NEW HOLLAND W130TC | - | LOADER WHEELED | W SERIES | NEW HOLLAND 668TA/M2 | - |
| NEW HOLLAND W170C | - | LOADER WHEELED | W SERIES | IVECO F4HFE613Y | TIER 4 |
| NEW HOLLAND W190C | - | LOADER WHEELED | W SERIES | IVECO F4HFE613X | TIER 4 |
| NEW HOLLAND W230C | - | LOADER WHEELED | W SERIES | IVECO FAHFE6131 | TIER 4 |
| NEW HOLLAND W270C | - | LOADER WHEELED | W SERIES | NEW HOLLAND F2CFE614C | TIER 4 |
| NEW HOLLAND W300C | - | LOADER WHEELED | W SERIES | NEW HOLLAND F2CFE614B | TIER 4 |
| TEREX TA25 | - | DUMP TRUCK ARTICULATED | - | CUMMINS QSC8.3 | - |
| TEREX TA27 | - | DUMP TRUCK ARTICULATED | TA SERIES | CUMMINS QSM11 | - |
| TEREX TA27 | - | DUMP TRUCK ARTICULATED | - | CUMMINS QSL9 | - |
| TEREX TA30 | - | DUMP TRUCK ARTICULATED | TA SERIES | CUMMINS QSM11 | - |
