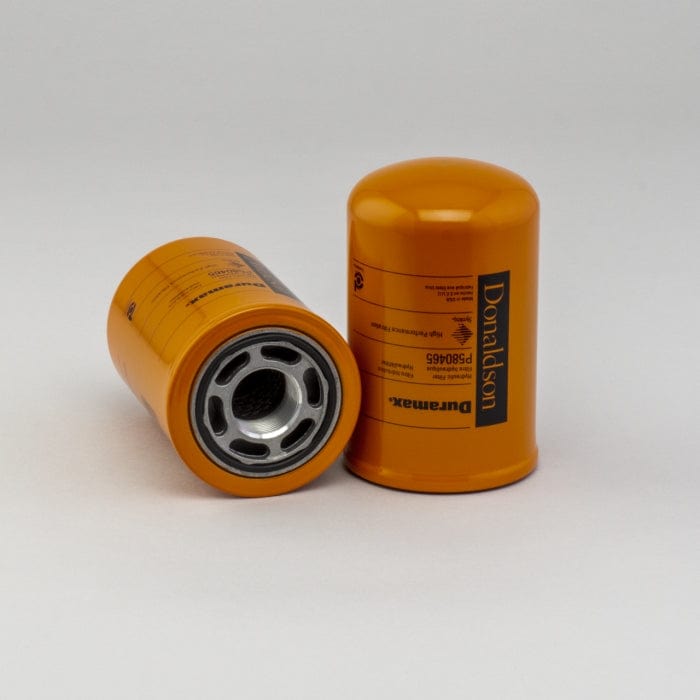

Hydraulic Filter, Spin-On Duramax - Donaldson P580465

Hydraulic Filter, Spin-On Duramax - Donaldson P580465

£49.29
£49.29
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P580465

Hydraulic Filter, Spin-On Duramax
Outer Diameter 3.82 inch (97 mm)
Thread Size 1 3/8-12 UN
Length 5.97 inch (151.6 mm)
Efficiency Beta 1000 23 micron
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.72 bar)
Series HMK04
Media Brand Synteq™
Media Type Synthetic
Primary Application Bobcat 6677652
View full details

Specifications

Attributes

  • Outer Diameter: 97 mm (3.82 inch)
  • Thread Size: 1 3/8-12 UN
  • Length: 151.6 mm (5.97 inch)
  • Efficiency Beta 1000: 23 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.72 bar (25 psi)
  • Series: HMK04
  • Media Brand: Synteq™
  • Media Type: Synthetic
  • Primary Application: Bobcat 6677652

Packaged Dimensions

  • Packaged Length: 0.103 m (4.10 inch)
  • Packaged Width: 0.103 m (4.10 inch)
  • Packaged Height: 0.173 m (6.90 inch)
  • Packaged Weight: 0.840 kg (1.85 lb)
  • Packaged Volume: 116.00 IN3

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330232187

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BOBCAT 6677652
FILPRO FP1035895

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
BOBCAT 463 - SKID STEER LOADER 400 SERIES KUBOTA D722E -
BOBCAT 463 - SKID STEER LOADER - KUBOTA D1005-E -
BOBCAT MT52 - LOADER COMPACT TRACKED MT SERIES KUBOTA D722-E -
BOBCAT MT55 - LOADER TRACKED MT SERIES KUBOTA D902 -
BOBCAT MT85 - LOADER TRACKED MT SERIES - MT85 -
BOBCAT S70 - SKID STEER LOADER - KUBOTA D1005-E -
