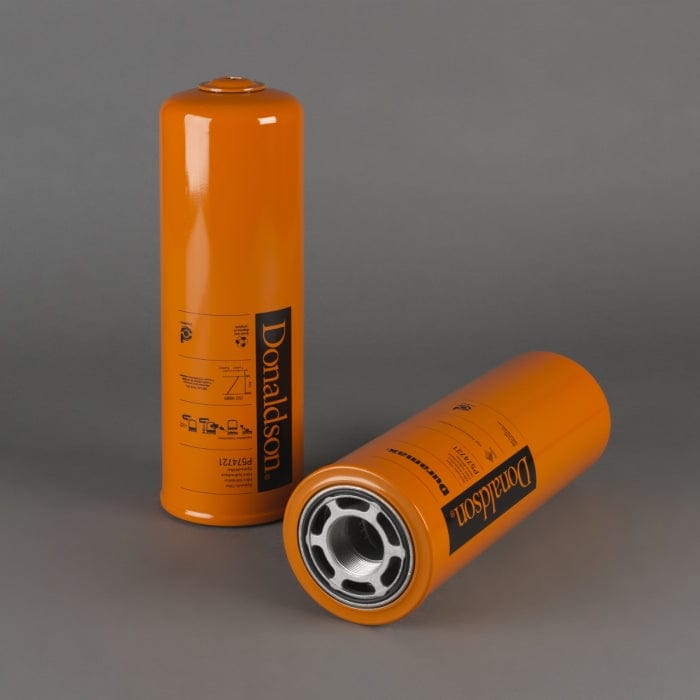

Hydraulic Filter, Spin-On Duramax - Donaldson P574721

Hydraulic Filter, Spin-On Duramax - Donaldson P574721

£82.18
£82.18
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P574721

Hydraulic Filter, Spin-On Duramax
View full details

Specifications

Attributes

  • Outer Diameter: 119.4 mm (4.70 inch)
  • Thread Size: 1 3/4-12 UN
  • Length: 367.9 mm (14.48 inch)
  • Gasket OD: 86.03 mm (3.39 inch)
  • Gasket ID: 78.97 mm (3.11 inch)
  • Efficiency Beta 1000: 9 micron
  • Style: Spin-On
  • Brand: Duramax®
  • Media Type: Synteq XP

Packaged Dimensions

  • Packaged Length: 0.42 FT
  • Packaged Width: 0.42 FT
  • Packaged Height: 1.25 FT
  • Packaged Weight: 2.288 kg (5.04 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330979013

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 51508555
CASE/CASE IH 277311A1
CASE/CASE IH 84356072
CASE/CASE IH 84487937
CASE/CASE IH 87417086
NEW HOLLAND 87413809

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CASE/CASE IH MAGNUM 340 - TRACTOR - CASE/CASE IH FPT8.7L -
