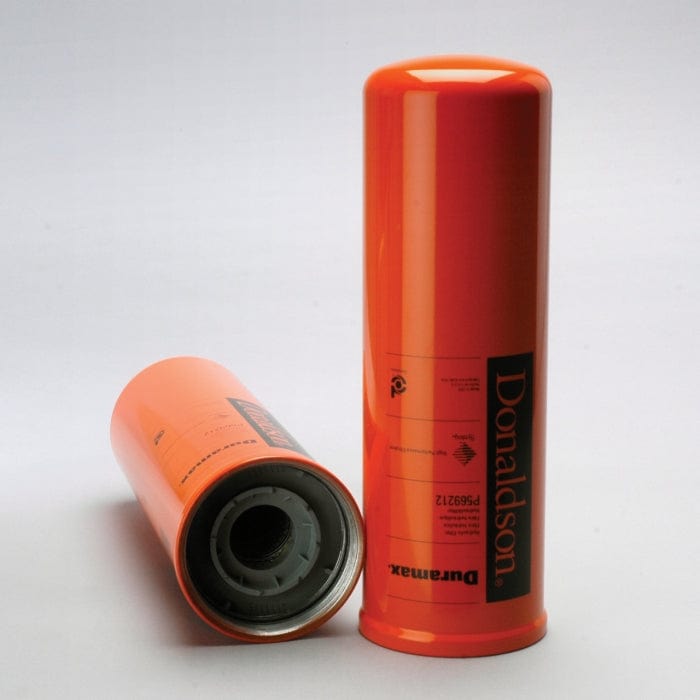

Hydraulic Filter, Spin-On Duramax - Donaldson P569212
Hydraulic Filter, Spin-On Duramax - Donaldson P569212
Regular price
£94.88
Regular price
Sale price
£94.88
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P569212
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 4.55 inch (115.57 mm) |
| Thread Size | M108 x 2.5 |
| Length | 14.24 inch (361.69 mm) |
| Gasket ID | 4.06 inch (103 mm) |
| Efficiency Beta 1000 | 11 micron |
| Style | Spin-On |
| Series | HNK04/05 |
| Brand | Duramax® |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 115.57 mm (4.55 inch)
- Thread Size: M108 x 2.5
- Length: 361.69 mm (14.24 inch)
- Gasket ID: 103 mm (4.06 inch)
- Efficiency Beta 1000: 11 micron
- Style: Spin-On
- Series: HNK04/05
- Brand: Duramax®
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.125 m (5.00 inch)
- Packaged Width: 0.125 m (5.00 inch)
- Packaged Height: 0.373 m (14.90 inch)
- Packaged Weight: 2.036 kg (4.49 lb)
- Packaged Volume: 0.006 m3 (0.22 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330194225
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CASE/CASE IH | 84162480 | |
| CASE/CASE IH | 84189327 | Without square nut for loosening |
| CASE/CASE IH | 84189328 | |
| CASE/CASE IH | 84240234 | |
| JOHN DEERE | RE577060 | |
| JOHN DEERE | RE577612 | |
| JOHN DEERE | RE589304 | |
| JOHN DEERE | RE590270 | |
| JOHN DEERE | RE310653 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| JOHN DEERE 7200R | - | TRACTOR | 7R SERIES | JOHN DEERE 6068 | - |
| JOHN DEERE 7215R | - | TRACTOR | 7R SERIES | JOHN DEERE 6068 | - |
| JOHN DEERE 7230R | - | TRACTOR | 7R SERIES | JOHN DEERE 6068 | - |
| JOHN DEERE 7230R | - | TRACTOR | 7R SERIES | JOHN DEERE 6090 | - |
| JOHN DEERE 7260R | - | TRACTOR | 7R SERIES | JOHN DEERE 6090 | - |
| JOHN DEERE 7280R | - | TRACTOR | 7R SERIES | JOHN DEERE 6090 | - |
| JOHN DEERE 9360R | - | TRACTOR | 9R SERIES | JOHN DEERE 6090 | - |
| JOHN DEERE 9410R | - | TRACTOR | 9R SERIES | JOHN DEERE 6135 | - |
| JOHN DEERE 9460R | - | TRACTOR | 9R SERIES | JOHN DEERE 6135 | - |
| JOHN DEERE 9510R | - | TRACTOR | 9R SERIES | JOHN DEERE 6135 | - |
| JOHN DEERE 9510RT | - | TRACTOR TRACKED | 9RT SERIES | JOHN DEERE 6135 | - |
| JOHN DEERE 9560R | - | TRACTOR | 9R SERIES | JOHN DEERE 6135 | - |
| JOHN DEERE 9560RT | - | TRACTOR TRACKED | 9RT SERIES | JOHN DEERE 6135 | - |
| JOHN DEERE 9640RT | - | TRACTOR | 9RT SERIES | JOHN DEERE 6135 | - |
