• Donaldson Hydraulic Filter, Spin-On Duramax - Donaldson P569205
1 1

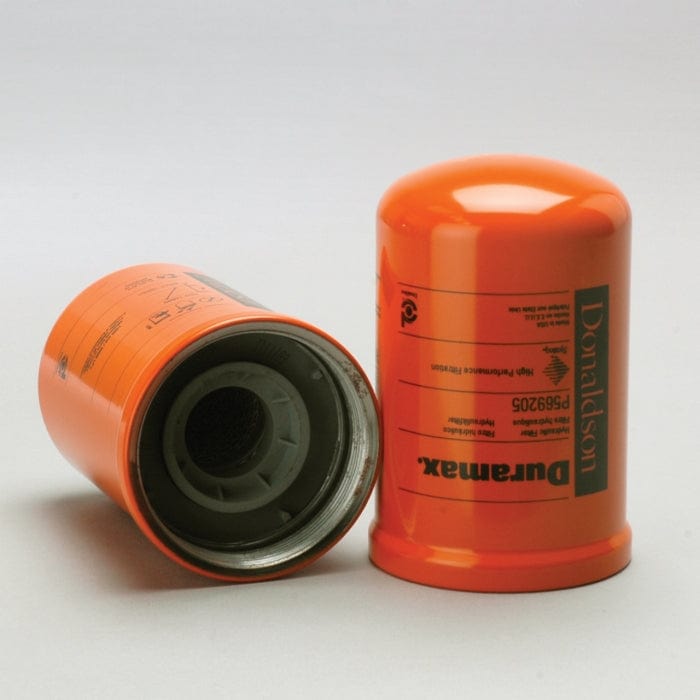

Hydraulic Filter, Spin-On Duramax - Donaldson P569205

Hydraulic Filter, Spin-On Duramax - Donaldson P569205

£58.89
£58.89
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P569205

Hydraulic Filter, Spin-On Duramax
Outer Diameter 3.69 inch (93.8 mm)
Thread Size M87 x 2.5
Length 5.97 inch (151.6 mm)
Gasket ID 3.27 inch (83 mm)
Efficiency Beta 1000 11 micron
Style Spin-On
Series HNK04/05
Brand Duramax®
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 93.8 mm (3.69 inch)
  • Thread Size: M87 x 2.5
  • Length: 151.6 mm (5.97 inch)
  • Gasket ID: 83 mm (3.27 inch)
  • Efficiency Beta 1000: 11 micron
  • Style: Spin-On
  • Series: HNK04/05
  • Brand: Duramax®
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.103 m (4.10 inch)
  • Packaged Width: 0.103 m (4.10 inch)
  • Packaged Height: 0.170 m (6.80 inch)
  • Packaged Weight: 0.795 kg (1.75 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330194058

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 47862588
CASE/CASE IH 84479005
NEW HOLLAND 84476005
NEW HOLLAND 87528218
