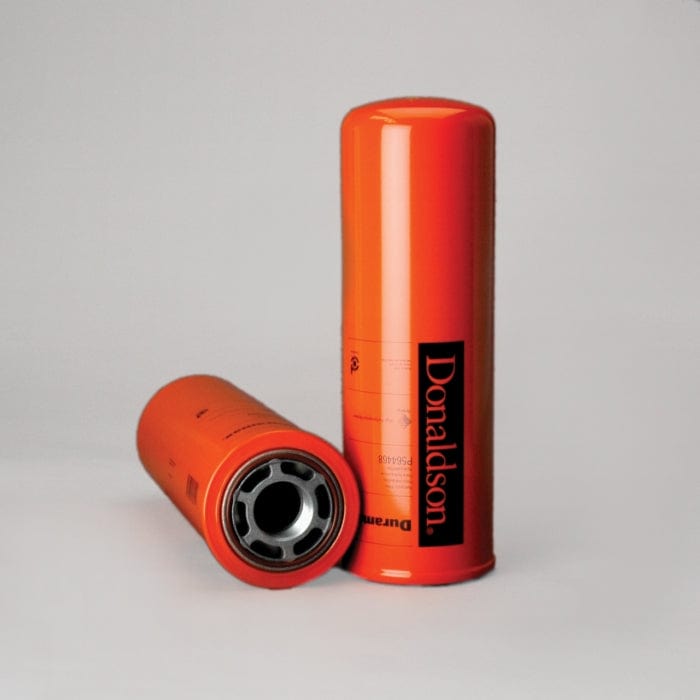

Hydraulic Filter, Spin-On Duramax - Donaldson P564468

Hydraulic Filter, Spin-On Duramax - Donaldson P564468

£112.63
£112.63
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P564468

Hydraulic Filter, Spin-On Duramax
Outer Diameter 4.7 inch (119.4 mm)
Thread Size 1 3/4-12 UN
Length 14.24 inch (361.69 mm)
Gasket OD 3.39 inch (86 mm)
Gasket ID 3.11 inch (79 mm)
Efficiency Beta 1000 4 micron
Style Spin-On
Series HMK05/25
Brand Duramax®
Media Type Synthetic
View full details

Specifications

Attributes

  • Filter Note: Water Glycol Compatibility with Fluorocarbon Seals
  • Outer Diameter: 119.4 mm (4.7 inch)
  • Thread Size: 1 3/4-12 UN
  • Length: 361.69 mm (14.24 inch)
  • Gasket OD: 86 mm (3.39 inch)
  • Gasket ID: 79 mm (3.11 inch)
  • Efficiency Beta 1000: 4 micron
  • Style: Spin-On
  • Series: HMK05/25
  • Brand: Duramax®
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.130 m (5.20 inch)
  • Packaged Width: 0.128 m (5.10 inch)
  • Packaged Height: 0.373 m (14.90 inch)
  • Packaged Weight: 2.306 kg (5.08 lb)
  • Packaged Volume: 0.006 m3 (0.23 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330162194
