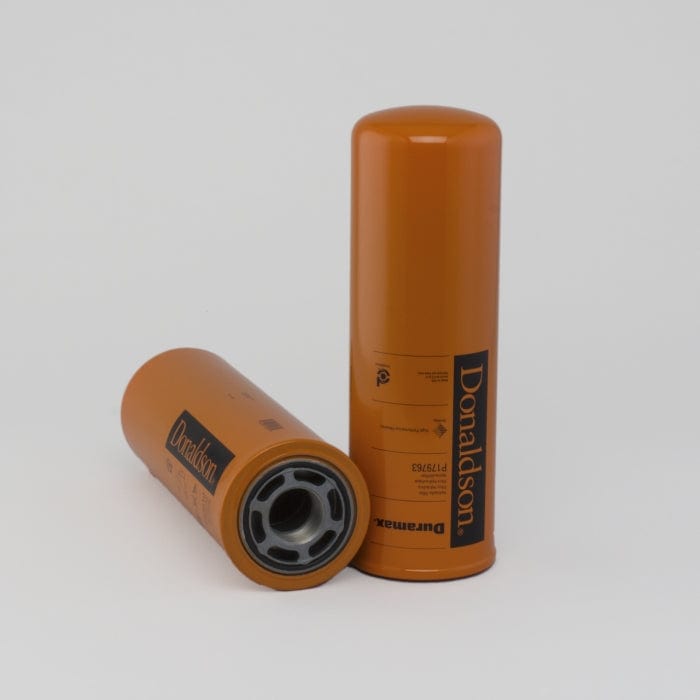

Hydraulic Filter, Spin-On Duramax - Donaldson P179763

Hydraulic Filter, Spin-On Duramax - Donaldson P179763

£75.00
£75.00
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P179763

Hydraulic Filter, Spin-On Duramax
Outer Diameter 4.70 inch (119.4 mm)
Thread Size 1 3/4-12 UN
Length 14.24 inch (361.6 mm)
Gasket OD 3.39 inch (86 mm)
Gasket ID 3.11 inch (78.97 mm)
Efficiency Beta 1000 6 micron
Style Spin-On
Series HMK05/25
Brand Duramax®
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 119.4 mm (4.70 inch)
  • Thread Size: 1 3/4-12 UN
  • Length: 361.6 mm (14.24 inch)
  • Gasket OD: 86 mm (3.39 inch)
  • Gasket ID: 78.97 mm (3.11 inch)
  • Efficiency Beta 1000: 6 micron
  • Style: Spin-On
  • Series: HMK05/25
  • Brand: Duramax®
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.130 m (5.20 inch)
  • Packaged Width: 0.128 m (5.10 inch)
  • Packaged Height: 0.373 m (14.90 inch)
  • Packaged Weight: 2.059 kg (4.54 lb)
  • Packaged Volume: 0.006 m3 (0.23 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330112700

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AGCO 534039D1
AGCO 2075035
AGCO 501766C2
AGCO 501766D2
AGCO 2075035
BUHLER VERSATILE 86034346
CATERPILLAR 2075035
CATERPILLAR 4658903
CATERPILLAR 2075035
SUNSOURCE 2075035
SUNSOURCE 2075035

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 450E - BACKHOE LOADER 400 SERIES CATERPILLAR C4.4TA ACERT -
CATERPILLAR 793D - DUMP TRUCK 700 SERIES CATERPILLAR 3516BTA -
CATERPILLAR 854K - DOZER WHEELED 800 SERIES CATERPILLAR C32TA ACERT -
CATERPILLAR 992K - LOADER WHEELED 900 SERIES CATERPILLAR C32 ACERT -
CATERPILLAR TK370 - FELLER BUNCHER - CATERPILLAR 3126 -
CATERPILLAR TK380 - FELLER BUNCHER - CATERPILLAR 3126 -
