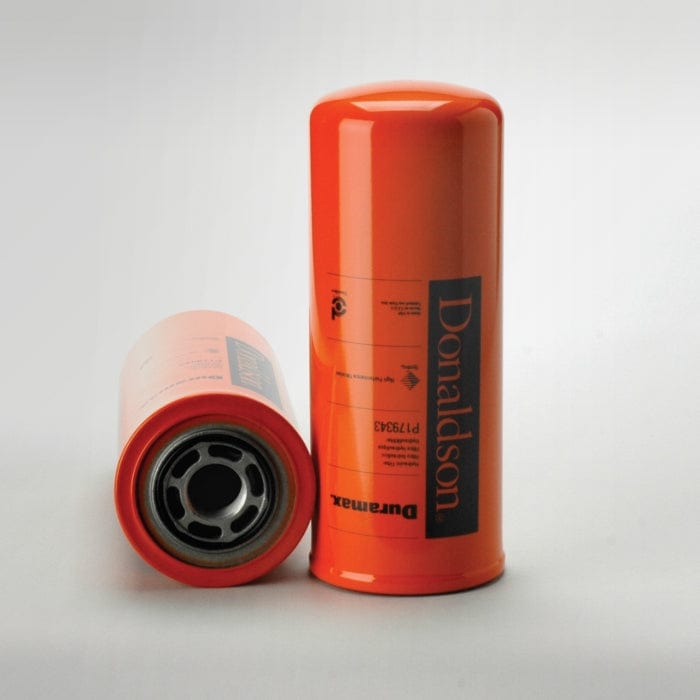

Hydraulic Filter, Spin-On Duramax - Donaldson P179343
Hydraulic Filter, Spin-On Duramax - Donaldson P179343
Regular price
£50.25
Regular price
Sale price
£50.25
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P179343
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 4.76 inch (121 mm) |
| Thread Size | 1 3/8-12 UN |
| Length | 11.63 inch (295.4 mm) |
| Gasket OD | 2.76 inch (70.15 mm) |
| Gasket ID | 2.48 inch (63 mm) |
| Efficiency Beta 1000 | 11 micron |
| Style | Spin-On |
| Brand | Duramax® |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 121 mm (4.76 inch)
- Thread Size: 1 3/8-12 UN
- Length: 295.4 mm (11.63 inch)
- Gasket OD: 70.15 mm (2.76 inch)
- Gasket ID: 63 mm (2.48 inch)
- Efficiency Beta 1000: 11 micron
- Style: Spin-On
- Brand: Duramax®
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.138 m (5.51 inch)
- Packaged Width: 0.138 m (5.51 inch)
- Packaged Height: 0.315 m (12.60 inch)
- Packaged Weight: 2.000 kg (4.41 lb)
- Packaged Volume: 0.006 m3 (0.22 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069095-02
- HTS Code: 84212980 90
- UPC Code: 742330111734
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | 534045D1 | |
| AGCO | 1261818 | |
| CASE/CASE IH | 25435A1 | |
| CASE/CASE IH | 84285044 | |
| CASE/CASE IH | 47131178 | |
| CASE/CASE IH | 418237A1 | |
| CASE/CASE IH | 86991559 | |
| CASE/CASE IH | 431588A1 | |
| CATERPILLAR | 12691818 | |
| CATERPILLAR | 6E6408 | |
| CATERPILLAR | 3788331 | |
| NEW HOLLAND | 48142232 | |
| NEW HOLLAND | 86018758 | |
| NEW HOLLAND | 48139857 | |
| NEW HOLLAND | 86989778 | |
| NEW HOLLAND | 435141A1 | |
| NEW HOLLAND | 84226263 | |
| NEW HOLLAND | NP86018758 | |
| VAPORMATIC | CPK5547 | |
| VMC | HF179343 | |
| VOLVO | 11809003 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH PUMA 165 | 05/15 - 02/18 | TRACTOR | Tier 4b - My15 (made In Basildon) | - - | - |
| CASE/CASE IH PUMA 185 | 09/17 | TRACTOR | Tier 4b - made In Basildon - MY18 | - - | - |
| CASE/CASE IH PUMA 185 | 05/15 - 01/18 | TRACTOR | Tier 4b - My15 (made In Basildon) | - - | - |
| CASE/CASE IH PUMA 185 CVT | 04/14 - 10/15 | TRACTOR | Tier 4b | - - | - |
| CASE/CASE IH PUMA 200 | 05/15 - 01/18 | TRACTOR | Tier 4b - My15 (made In Basildon) | - - | - |
| CASE/CASE IH PUMA 200 | 09/17 | TRACTOR | Tier 4b (made In Basildon) - My 18 | - - | - |
| CASE/CASE IH PUMA 200 CVT | 04/14 - 09/15 | TRACTOR | Tier 4B | - - | - |
| CASE/CASE IH PUMA 220 | 05/15 - 11/17 | TRACTOR | Tier 4b - My15 (made In Basildon) | - - | - |
| CASE/CASE IH PUMA 220 | 09/17 | TRACTOR | Tier 4b (made In Basildon) - My18 | - - | - |
| CASE/CASE IH PUMA 220 CVT | 04/14 - 06/15 | TRACTOR | Tier 4B | - - | - |
| CASE/CASE IH Puma 150 | 05/15 - 04/18 | TRACTOR | Tier 4b - My15 (made In Basildon) | - - | - |
| CASE/CASE IH Puma 165 | 01/09 - 10/18 | TRACTOR | Serial Number Z*be 40001 --> 50000 And 60001 --> ... | - - | - |
| CASE/CASE IH STX280 | - | TRACTOR | STX SERIES | CUMMINS QSC8.3 | - |
| CASE/CASE IH STX280 | - | TRACTOR | STX STEIGER SERIES | - STX280 | - |
| CASE/CASE IH STX380 | - | TRACTOR | STX SERIES | IVECO CURSOR 13 | - |
| CASE/CASE IH STX425 | - | TRACTOR | STX SERIES | CUMMINS QSX15 | - |
| CASE/CASE IH STX430 | - | TRACTOR | STX SERIES | IVECO CURSOR 13 | - |
| CASE/CASE IH STX450 | - | TRACTOR | STX SERIES | CUMMINS QSX15 | - |
| CASE/CASE IH STX485 | - | TRACTOR TRACKED | STX STEIGER SERIES | - STX485 | - |
| CASE/CASE IH STX530 | - | TRACTOR | STX SERIES | CUMMINS QSX15 | - |
| CATERPILLAR D7E | - | DOZER TRACKED | D SERIES | CATERPILLAR C9.3 ACERT | - |
| CATERPILLAR D7E LGP | - | DOZER TRACKED | D SERIES | CATERPILLAR C9.3 ACERT | - |
| NEW HOLLAND G170 | - | TRACTOR | - | - G170 | - |
| NEW HOLLAND G190 | - | TRACTOR | - | - G190 | - |
| NEW HOLLAND G210 | - | TRACTOR | - | - G210 | - |
| NEW HOLLAND T6.120 | - | TRACTOR | T6 SERIES | FPT INDUSTRIAL NEF | TIER 4A |
| NEW HOLLAND T6.140 | - | TRACTOR | T6 SERIES, AUTOCOMMAND | FPT INDUSTRIAL NEF | TIER 4 |
| NEW HOLLAND T6.140 | - | TRACTOR | T6 SERIES | FPT INDUSTRIAL NEF | TIER 4A |
| NEW HOLLAND T6.150 | - | TRACTOR | T6 SERIES | FPT INDUSTRIAL NEF | TIER 4 |
| NEW HOLLAND T6.155 | - | TRACTOR | T6 SERIES | FPT INDUSTRIAL NEF | TIER 4A |
| NEW HOLLAND T6.160 | - | TRACTOR | T6 SERIES | FPT INDUSTRIAL NEF | TIER 4 |
| NEW HOLLAND T6.165 | - | TRACTOR | T6 SERIES | FPT INDUSTRIAL NEF | TIER 4A |
| NEW HOLLAND T6.175 | - | TRACTOR | T6 SERIES | FPT INDUSTRIAL NEF | TIER 4A |
| NEW HOLLAND T6010 | - | TRACTOR | T6000 SERIES | NEW HOLLAND NEF445T/MM1 | - |
| NEW HOLLAND T6020 | - | TRACTOR | T6000 SERIES | NEW HOLLAND NEF445TA EGD | - |
| NEW HOLLAND T6030 | - | TRACTOR | T6000 SERIES | NEW HOLLAND NEF667TA/MEA | - |
| NEW HOLLAND T6030 | - | TRACTOR | T6000 SERIES, POWER COMMAND | NEW HOLLAND NEF667TA | - |
| NEW HOLLAND T6040 | - | TRACTOR | T6000 SERIES | NEW HOLLAND NEF445TA/EGC | - |
| NEW HOLLAND T6050 | - | TRACTOR | T6000 SERIES | NEW HOLLAND NEF667TA | - |
| NEW HOLLAND T6060 | - | TRACTOR | T6000 SERIES | NEW HOLLAND NEF445TA | - |
| NEW HOLLAND T6070 | - | TRACTOR | T6000 SERIES | NEW HOLLAND NEF667TA | - |
| NEW HOLLAND T6080 | - | TRACTOR | T6000 SERIES, POWER COMMAND | NEW HOLLAND NEF667TA | - |
| NEW HOLLAND T6090 | - | TRACTOR | T6000 SERIES, AUTO COMMAND | NEW HOLLAND NEF | TIER 3 |
| NEW HOLLAND T6090 | - | TRACTOR | T6000 SERIES, POWER COMMAND | NEW HOLLAND NEF667TA | - |
| NEW HOLLAND T7030 | - | TRACTOR | - | FPT INDUSTRIAL N67ENT | - |
| NEW HOLLAND T7030 | - | TRACTOR | T7000 SERIES | NEW HOLLAND NEF667TA/EBN | - |
| NEW HOLLAND T7040 | - | TRACTOR | T7000 SERIES | NEW HOLLAND NEF667TA/EBE | - |
| NEW HOLLAND T7040 | - | TRACTOR | - | FPT INDUSTRIAL N67ENT | - |
| NEW HOLLAND T7050 | - | TRACTOR | T7000 SERIES | NEW HOLLAND NEF667TA/EBC | - |
| NEW HOLLAND T7050 | - | TRACTOR | - | FPT INDUSTRIAL N67ENT | - |
| NEW HOLLAND T7060 | - | TRACTOR | T7000 SERIES | NEW HOLLAND NEF667TA/EBH | - |
| NEW HOLLAND T7060 | - | TRACTOR | - | FPT INDUSTRIAL N67ENT | - |
| NEW HOLLAND T9010 | - | TRACTOR | T9000 SERIES | - T9010 | - |
| NEW HOLLAND T9020 | - | TRACTOR | T9000 SERIES | - T9020 | - |
| NEW HOLLAND T9030 | - | TRACTOR | T9000 SERIES | NEW HOLLAND 12.9L | - |
| NEW HOLLAND T9030HD | - | TRACTOR | T9000 SERIES | NEW HOLLAND 12.9L | - |
| NEW HOLLAND T9040 | - | TRACTOR | T9000 SERIES | NEW HOLLAND 12.9L | - |
| NEW HOLLAND T9040HD | - | TRACTOR | T9000 SERIES | NEW HOLLAND 12.9L | - |
| NEW HOLLAND T9050 | - | TRACTOR | T9000 SERIES | NEW HOLLAND 12.9L | - |
| NEW HOLLAND T9050 | - | TRACTOR | T9000 SERIES | CUMMINS QSX15 | - |
| NEW HOLLAND T9050HD | - | TRACTOR | T9000 SERIES | NEW HOLLAND 12.9L | - |
| NEW HOLLAND T9060 | - | TRACTOR | T9000 SERIES | CUMMINS QSX15 | - |
| NEW HOLLAND T9060HD | - | TRACTOR | T9000 SERIES | CUMMINS QSX15 | - |
| NEW HOLLAND TJ430 | - | TRACTOR | - | NEW HOLLAND 12.9L | - |
| NEW HOLLAND TJ430HD | - | SCRAPER | - | NEW HOLLAND 12.9L | - |
| NEW HOLLAND TJ460HD | - | TRACTOR | FWD, POWERSHIFT | NEW HOLLAND 12.9L | - |
| NEW HOLLAND TM190 | - | TRACTOR | - | NEW HOLLAND 456 | - |
| NEW HOLLAND TS100A | - | TRACTOR | - | NEW HOLLAND 4273 | - |
| NEW HOLLAND TS115A | - | TRACTOR | - | IVECO F4CE0684C | - |
| NEW HOLLAND TS125A | - | TRACTOR | - | IVECO F4DE0684B | - |
| VERSATILE 2145 | - | TRACTOR | - | NEW HOLLAND GSD675T | - |
| VERSATILE 2160 | - | TRACTOR | - | NEW HOLLAND GSD675T | - |
| VERSATILE 2210 | - | TRACTOR | - | NEW HOLLAND GSD675T | - |
| VOLVO CONSTRUCTION EQUIPMENT EC35C | - | EXCAVATOR TRACKED | EC SERIES | VOLVO D2.2A | - |
| VOLVO CONSTRUCTION EQUIPMENT ECR48C | - | EXCAVATOR TRACKED | ECR SERIES | VOLVO D2.2A | - |
