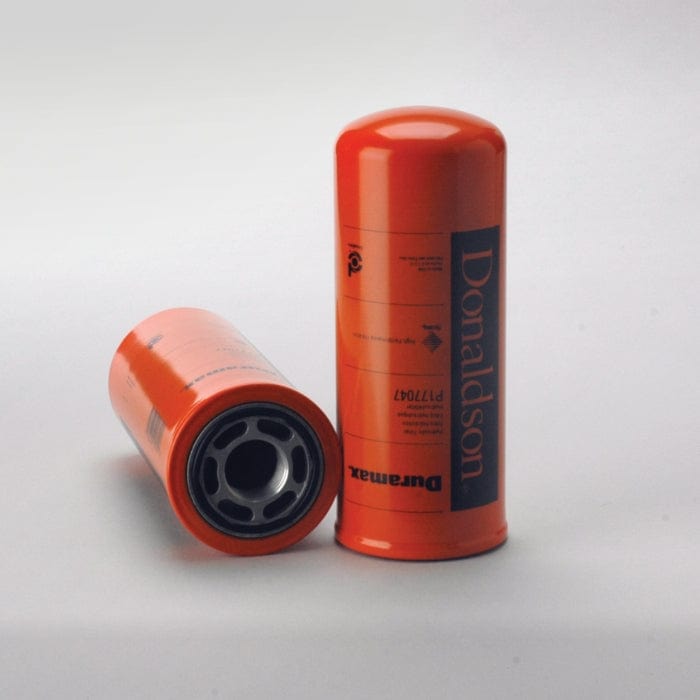

Hydraulic Filter, Spin-On Duramax - Donaldson P177047
Hydraulic Filter, Spin-On Duramax - Donaldson P177047
Regular price
£29.53
Regular price
Sale price
£29.53
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P177047
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 3.82 inch (97 mm) |
| Thread Size | 1 3/8-12 UN |
| Length | 9.44 inch (239.78 mm) |
| Gasket OD | 2.76 inch (70.15 mm) |
| Gasket ID | 2.48 inch (63 mm) |
| Efficiency Beta 1000 | 14 micron |
| Efficiency Test Std | ISO 16889 |
| Style | Spin-On |
| Series | HMK04/24 |
| Brand | Duramax® |
| Media Type | Synthetic |
| Primary Application | JOHN DEERE T175002 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 97 mm (3.82 inch)
- Thread Size: 1 3/8-12 UN
- Length: 239.78 mm (9.44 inch)
- Gasket OD: 70.15 mm (2.76 inch)
- Gasket ID: 63 mm (2.48 inch)
- Efficiency Beta 1000: 14 micron
- Efficiency Test Std: ISO 16889
- Style: Spin-On
- Series: HMK04/24
- Brand: Duramax®
- Media Type: Synthetic
- Primary Application: JOHN DEERE T175002
Packaged Dimensions
- Packaged Length: 0.103 m (4.10 inch)
- Packaged Width: 0.103 m (4.10 inch)
- Packaged Height: 0.245 m (9.80 inch)
- Packaged Weight: 1.271 kg (2.80 lb)
- Packaged Volume: 0.003 m3 (0.10 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069095-02
- HTS Code: 8421298090
- UPC Code: 742330107058
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF2202 | |
| ADVANCE MIXER | 496209 | |
| ADVANCE MIXER | 46209 | |
| AG CHEM EQUIPMENT | 609934 | |
| AMERICAN PARTS | 92492 | |
| BIG A | 92817 | |
| BOBCAT | 6668819 | |
| BOSCH-REXROTH | F026404005 | |
| CAMECO | T175002 | |
| CASE/CASE IH | D126922 | |
| CASE/CASE IH | D120594 | |
| CASE/CASE IH | 402652A1 | |
| CATERPILLAR | 1919784 | |
| CATERPILLAR | 3I1761 | |
| CATERPILLAR | 3416643 | |
| CATERPILLAR | 3I0610 | |
| CATERPILLAR | 3I0554 | |
| CATERPILLAR | 3I0548 | |
| CETCO INCORPORATED | 1281327H1 | |
| CLARK | 4328079 | |
| CLARK | 6598903 | |
| CLARK | C4328079 | |
| CLARK | 6598903 | |
| COMPACTION AMERICA | 398706 | |
| DRESSER | 1281327H1 | |
| FIAT | 81863799 | |
| FIAT | 818637990 | |
| FORD | 18637992 | |
| FORD | 81863799 | |
| FORD | 818637990 | |
| FORD | F0NN6714CA | |
| FORD | F0NN6714CA12H | |
| FUNK | T175002 | |
| HAYES DANA | L485 | |
| HITACHI | 73131887 | |
| HYSTER | 398706 | |
| JCB | 32909200 | |
| JOHN DEERE | T175002 | |
| KNECHT | HC112 | |
| KRALINATOR | L1817 | |
| LOESING | 21977 | |
| MCCORMICK | D120594 | |
| MORBARK | 26838667 | |
| NACCO MATERIALS | 398706 | |
| NEW HOLLAND | FONN6714CA12H | |
| NEW HOLLAND | 81863799 | |
| NEW HOLLAND | 818637990 | |
| NEW HOLLAND | F0NN6714CA12H | |
| NEW HOLLAND | 9821387 | |
| NEW HOLLAND | 73131887 | |
| NEW HOLLAND | 87417087 | |
| NEW HOLLAND | 89821387 | |
| NEW HOLLAND | 818663799 | |
| P & H | 10462554 | |
| PEL-JOB | E6050119 | |
| TORO | 1271220 | |
| VERSATILE | 9821387 | |
| VOLVO | 16563975 | |
| VOLVO | 110366077 | |
| WALGAHN-MOTORENTECHN | 810947 | |
| WALGAHN-MOTORENTECHN | 810941 | |
| WALGAHN-MOTORENTECHN | 810491 |
