• Donaldson Hydraulic Filter, Spin-On Duramax - Donaldson P174552
1 1

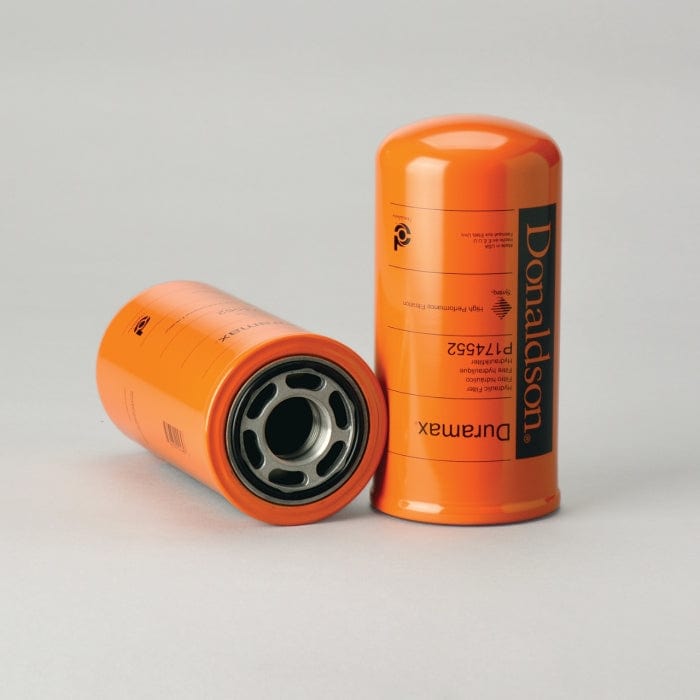

Hydraulic Filter, Spin-On Duramax - Donaldson P174552

Hydraulic Filter, Spin-On Duramax - Donaldson P174552

£47.23
£47.23
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P174552

Hydraulic Filter, Spin-On Duramax
View full details

Specifications

Attributes

  • Outer Diameter: 97 mm (3.82 inch)
  • Thread Size: 1 3/8-12 UN
  • Length: 200.2 mm (7.88 inch)
  • Gasket OD: 70.16 mm (2.76 inch)
  • Gasket ID: 63.1 mm (2.48 inch)
  • Efficiency Beta 1000: 11 micron
  • Style: Spin-On
  • Brand: Duramax®
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.35 FT
  • Packaged Width: 0.35 FT
  • Packaged Height: 0.69 FT
  • Packaged Weight: 1.026 kg (2.26 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-11
  • HTS Code: 8421298090
  • UPC Code: 742330024898

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 87014887
CASE/CASE IH 89842392
CASE/CASE IH 9842392
FIAT 9842392
JOHN DEERE KV12276
JOHN DEERE AT314164
JOHN DEERE M124541
JOHN DEERE MG9800633
JOHN DEERE MG9800663
JOHN DEERE AT367635
M.D.F. SARL MDH4943
NEW HOLLAND L9842392
NEW HOLLAND 9800633
NEW HOLLAND 9842392
VERSATILE 9842392
VMC HF174552

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CASE/CASE IH LS170 - SKID STEER LOADER - CASE/CASE IH N844T -
CASE/CASE IH LS180 - SKID STEER LOADER - NEW HOLLAND BSD332T -
HITACHI SL55B - SKID STEER LOADER SL SERIES - SL55B -
JOHN DEERE 240 II - SKID STEER LOADER - JOHN DEERE 3029D -
JOHN DEERE 250 - SKID STEER LOADER - JOHN DEERE 3029D -
