• Donaldson Hydraulic Filter, Spin-On Duramax - Donaldson P173943
1 1

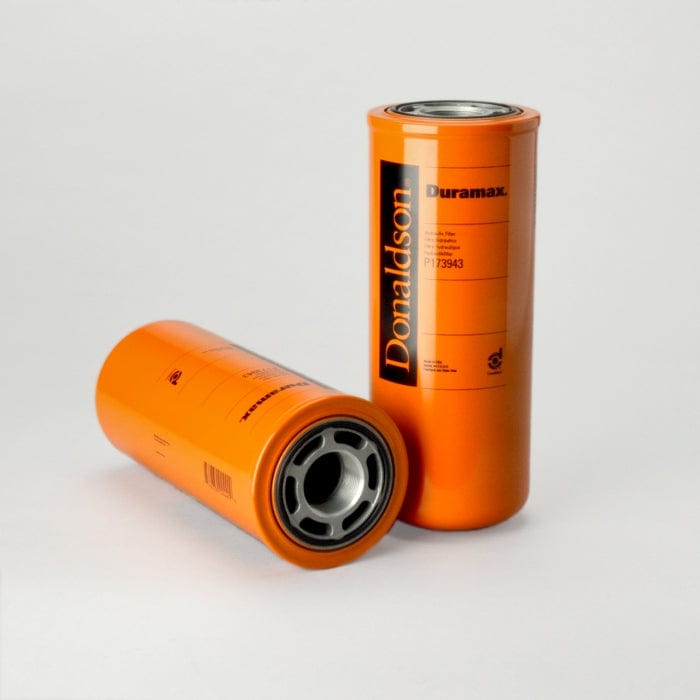

Hydraulic Filter, Spin-On Duramax - Donaldson P173943

Hydraulic Filter, Spin-On Duramax - Donaldson P173943

£81.27
£81.27
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P173943

Hydraulic Filter, Spin-On Duramax
View full details

Specifications

Attributes

  • Mesh Rating: 149 micron
  • Outer Diameter: 119.4 mm (4.7 inch)
  • Thread Size: 1 3/4-12 UN
  • Length: 295.4 mm (11.63 inch)
  • Gasket OD: 86 mm (3.39 inch)
  • Gasket ID: 78.97 mm (3.11 inch)
  • Efficiency Beta 2: 150 micron
  • Style: Spin-On
  • Series: HMK05/25
  • Brand: Duramax®
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.125 m (5.00 inch)
  • Packaged Width: 0.130 m (5.20 inch)
  • Packaged Height: 0.305 m (12.20 inch)
  • Packaged Weight: 1.807 kg (3.98 lb)
  • Packaged Volume: 0.005 m3 (0.18 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330024409

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ALLIED SYSTEM 253696
P & H R55632D2
