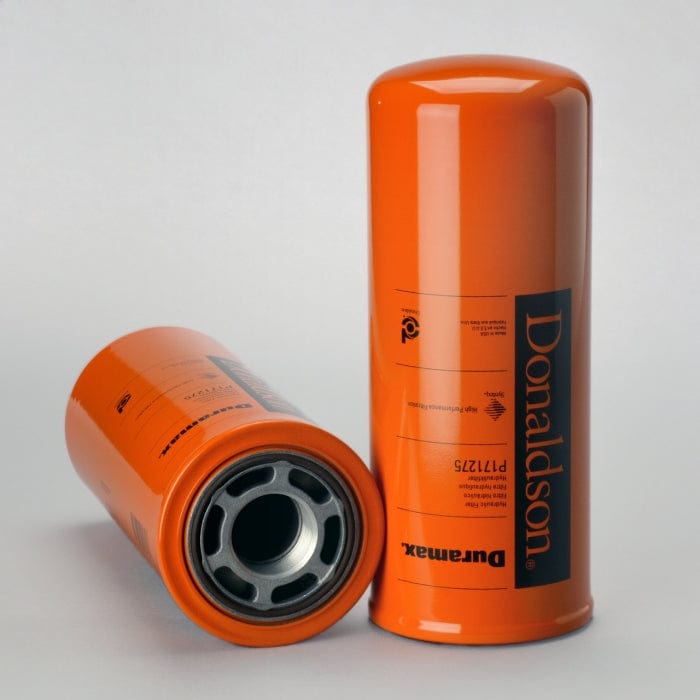

Donaldson P171275

Hydraulic Filter, Spin-On Duramax
Seal Material Viton
Outer Diameter 4.70 inch (119.38 mm)
Thread Size 1 3/4-12 UN
Length 11.63 inch (295.4 mm)
Gasket OD 3.39 inch (86 mm)
Gasket ID 3.11 inch (79 mm)
Efficiency Beta 1000 11 micron
Style Spin-On
Series HMK05/25
Brand Duramax®
Media Type Synthetic
Primary Application With Epoxy bonding
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Filter Note: Water Glycol Compatibility with Fluorocarbon Seals
  • Outer Diameter: 119.38 mm (4.70 inch)
  • Thread Size: 1 3/4-12 UN
  • Length: 295.4 mm (11.63 inch)
  • Gasket OD: 86 mm (3.39 inch)
  • Gasket ID: 79 mm (3.11 inch)
  • Efficiency Beta 1000: 11 micron
  • Style: Spin-On
  • Series: HMK05/25
  • Brand: Duramax®
  • Media Type: Synthetic
  • Primary Application: With Epoxy bonding

Packaged Dimensions

  • Packaged Length: 0.130 m (5.20 inch)
  • Packaged Width: 0.128 m (5.10 inch)
  • Packaged Height: 0.305 m (12.20 inch)
  • Packaged Weight: 1.823 kg (4.02 lb)
  • Packaged Volume: 0.005 m3 (0.19 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330021323

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 87403734
CASE/CASE IH 87409961
INGERSOLL RAND 36897346
INGERSOLL RAND 39856836
INGERSOLL RAND 39911631
SULLAIR 02250153933

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
INGERSOLL RAND 7/170 - COMPRESSOR - JOHN DEERE 6IRF8TE -
