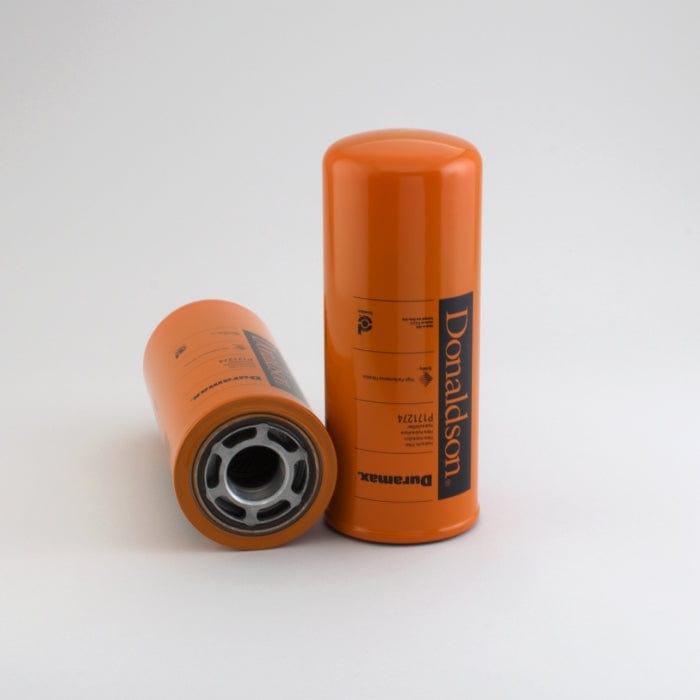

Hydraulic Filter, Spin-On Duramax - Donaldson P171274

Hydraulic Filter, Spin-On Duramax - Donaldson P171274

£108.49
£108.49
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171274

Hydraulic Filter, Spin-On Duramax
Outer Diameter 4.7 inch (119.38 mm)
Thread Size 1 3/4-12 UN
Length 11.63 inch (295.4 mm)
Gasket OD 3.39 inch (86 mm)
Gasket ID 3.11 inch (79 mm)
Efficiency Beta 1000 6 micron
Style Spin-On
Series HMK05/25
Brand Duramax®
Media Type Synthetic
View full details

Specifications

Attributes

  • Filter Note: Water Glycol Compatibility with Fluorocarbon Seals
  • Outer Diameter: 119.38 mm (4.7 inch)
  • Thread Size: 1 3/4-12 UN
  • Length: 295.4 mm (11.63 inch)
  • Gasket OD: 86 mm (3.39 inch)
  • Gasket ID: 79 mm (3.11 inch)
  • Efficiency Beta 1000: 6 micron
  • Style: Spin-On
  • Series: HMK05/25
  • Brand: Duramax®
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.125 m (5.00 inch)
  • Packaged Width: 0.128 m (5.10 inch)
  • Packaged Height: 0.303 m (12.10 inch)
  • Packaged Weight: 1.886 kg (4.16 lb)
  • Packaged Volume: 0.005 m3 (0.18 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330021316

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BUHLER VERSATILE 86034346
CASE/CASE IH 51652736
