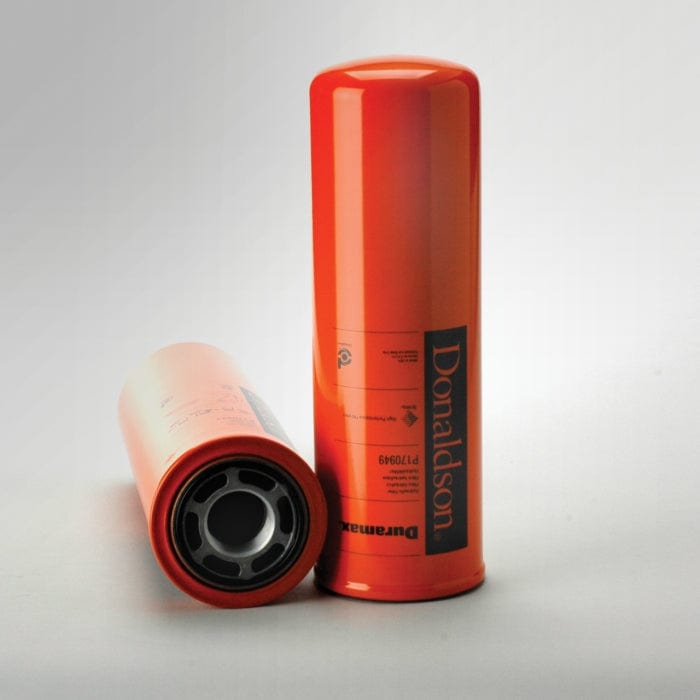

Hydraulic Filter, Spin-On Duramax - Donaldson P170949
Hydraulic Filter, Spin-On Duramax - Donaldson P170949
Regular price
£88.13
Regular price
Sale price
£88.13
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P170949
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 4.70 inch (119.4 mm) |
| Thread Size | 1 3/4-12 UN |
| Length | 14.24 inch (361.6 mm) |
| Gasket OD | 3.39 inch (86 mm) |
| Gasket ID | 3.11 inch (79 mm) |
| Efficiency Beta 1000 | 11 micron |
| Style | Spin-On |
| Series | HMK05/25 |
| Brand | Duramax® |
| Media Type | Synthetic |
| Primary Application | CASE/CASE IH 1971728C1 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 119.4 mm (4.70 inch)
- Thread Size: 1 3/4-12 UN
- Length: 361.6 mm (14.24 inch)
- Gasket OD: 86 mm (3.39 inch)
- Gasket ID: 79 mm (3.11 inch)
- Efficiency Beta 1000: 11 micron
- Style: Spin-On
- Series: HMK05/25
- Brand: Duramax®
- Media Type: Synthetic
- Primary Application: CASE/CASE IH 1971728C1
Packaged Dimensions
- Packaged Length: 0.133 m (5.30 inch)
- Packaged Width: 0.128 m (5.10 inch)
- Packaged Height: 0.375 m (15.00 inch)
- Packaged Weight: 2.179 kg (4.80 lb)
- Packaged Volume: 0.007 m3 (0.23 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-09
- HTS Code: 8421298090
- UPC Code: 742330020586
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AG CHEM EQUIPMENT | 718573 | |
| AGCO | 534039D1 | |
| AMERICAN PARTS | 92729 | |
| BIG A | 92729 | |
| BUHLER VERSATILE | 500386 | |
| CAMECO | RE174130 | |
| CASE/CASE IH | 191728C1 | |
| CASE/CASE IH | 1971728C1 | |
| CASE/CASE IH | 277311A1 | |
| CATERPILLAR | 3I1946 | P574721 is Version with Removal Plate |
| CATERPILLAR | 1526902 | |
| CLAAS | 03663870 | |
| CLAAS | 0003663870 | |
| FUNK | RE174130 | |
| GREYFRIARS | HS7694 | |
| INTERNATIONAL | 191728C1 | |
| INTERNATIONAL | 1971728C1 | |
| JOHN DEERE | RE70079 | |
| JOHN DEERE | RE152658 | |
| JOHN DEERE | RE51797A | |
| JOHN DEERE | RE51797 | |
| JOHN DEERE | RE159084 | |
| LOESING | 020344 | |
| LOESING | 20344 | P574721 is Version with Removal Plate |
| MCCORMICK | 1971728C1 | |
| MCNEILUS | 1460481 | |
| NEW HOLLAND | 87413809 | |
| NEW WAY | 119238 | P574721 is Version with Removal Plate |
| NEW WAY | NA119238 | P574721 is Version with Removal Plate |
| SUNSOURCE | 1526902 | |
| VAPORMATIC | CPK1531 | P574721 is Version with Removal Plate |
| VAPORMATIC | VPK1531 | |
| VERSATILE | 86040230 | P574721 is Version with Removal Plate |
| VMC | HF170949 | |
| WALGAHN-MOTORENTECHN | 00811881 | |
| WALGAHN-MOTORENTECHN | 811881 | |
| Y2K FLUID POWER | P1063 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AG CHEM EQUIPMENT 3104 | - | SPRAYER | TERRAGATOR | JOHN DEERE 6081H | - |
| AG CHEM EQUIPMENT 8103 | - | SPRAYER | TERRAGATOR | JOHN DEERE 6081H | - |
| AG CHEM EQUIPMENT 8104 | - | SPRAYER | TERRAGATOR | JOHN DEERE 6081H | - |
| AG CHEM EQUIPMENT 9105 | - | SPRAYER | TERRAGATOR | CATERPILLAR 3176C | - |
| CASE/CASE IH 7110 | - | TRACTOR | 7000 MAGNUM SERIES | CUMMINS 6CT8.3 | - |
| CASE/CASE IH 7130 | - | TRACTOR | 7000 MAGNUM SERIES | CUMMINS 6CT8.3 | - |
| CASE/CASE IH 7140 | - | TRACTOR | 7000 MAGNUM SERIES | CUMMINS 6CT8.3 | - |
| CASE/CASE IH 7150 | - | TRACTOR | 7000 MAGNUM SERIES | CUMMINS 6CT8.3 | - |
| CASE/CASE IH 7210 | - | TRACTOR | 7000 MAGNUM SERIES | CUMMINS 6C8.3 | - |
| CASE/CASE IH 7220 | - | TRACTOR | 7000 MAGNUM SERIES | CUMMINS 6CT8.3 | - |
| CASE/CASE IH 7220 | - | TRACTOR | 7000 MAGNUM SERIES, PRO | - 7220 | - |
| CASE/CASE IH 7230 | - | TRACTOR | 7000 MAGNUM SERIES | CUMMINS 6CT8.3 | - |
| CASE/CASE IH 7240 | - | TRACTOR | 7000 MAGNUM SERIES | CUMMINS 6CTA8.3 | - |
| CASE/CASE IH 7250 | - | TRACTOR | 7000 MAGNUM SERIES | CUMMINS 6CTA8.3 | - |
| CASE/CASE IH 8010 | - | COMBINE | 8000 SERIES | CASE/CASE IH 10.3L | - |
| CASE/CASE IH 8910 | - | TRACTOR | 8000 SERIES | CUMMINS 6CT8.3 | - |
| CASE/CASE IH 8920 | - | TRACTOR | - | CUMMINS 6CT8.3 | - |
| CASE/CASE IH 8940 | - | TRACTOR | 8000 SERIES | CUMMINS 6CTA8.3 | - |
| CASE/CASE IH 8950 | - | TRACTOR | 8000 SERIES | CUMMINS 6CTA8.3 | - |
| CASE/CASE IH 9010 | - | COMBINE | 9000 SERIES | CASE/CASE IH 13.0L | - |
| CASE/CASE IH AF8010 | - | COMBINE | - | IVECO 3VEXL | - |
| CASE/CASE IH AFX8010 | - | COMBINE | AFX SERIES | CASE/CASE IH 10.3L | - |
| CASE/CASE IH MAGNUM 220 | - | TRACTOR | MAGNUM MX SERIES | CUMMINS 6CT8.3 | - |
| CASE/CASE IH MAGNUM 225 | - | TRACTOR | MAGNUM SERIES | - MAGNUM 225 | - |
| CASE/CASE IH MAGNUM 250 | - | TRACTOR | MAGNUM SERIES | - MAGNUM 250 | - |
| CASE/CASE IH MAGNUM 310 | - | TRACTOR | MAGNUM SERIES | - MAGNUM 310 | - |
| CASE/CASE IH MX180 | - | TRACTOR | MX SERIES | CUMMINS 6CT8.3 | - |
| CASE/CASE IH MX200 | - | TRACTOR | MX SERIES | CUMMINS 6CTA8.3 | - |
| CASE/CASE IH MX210 | - | TRACTOR | MX SERIES | CUMMINS 6CT8.3 | - |
| CASE/CASE IH MX215 | - | TRACTOR | - | CUMMINS QSC8.3 | - |
| CASE/CASE IH MX220 | - | TRACTOR | MX SERIES | CUMMINS 6CTA8.3 | - |
| CASE/CASE IH MX230 | - | TRACTOR | MX SERIES | CUMMINS 6CT8.3 | - |
| CASE/CASE IH MX240 | - | TRACTOR | MX SERIES | CUMMINS QSC8.3 | - |
| CASE/CASE IH MX245 | - | TRACTOR | - | CUMMINS QSC8.3 | - |
| CASE/CASE IH MX255 | - | TRACTOR | MX SERIES | CUMMINS 6CT8.3 | - |
| CASE/CASE IH MX255 | - | TRACTOR | MAGNUM SERIES | - MX255 | - |
| CASE/CASE IH MX270 | - | TRACTOR | MX SERIES | CUMMINS QSC8.3 | - |
| CASE/CASE IH MX275 | - | TRACTOR | - | CUMMINS QSC8.3 | - |
| CASE/CASE IH MX285 | - | TRACTOR | MAGNUM MX SERIES | - MX285 | - |
| CASE/CASE IH MX285 | - | TRACTOR | MX SERIES | CUMMINS 6CTA8.3 | - |
| CASE/CASE IH MX305 | - | TRACTOR | - | CUMMINS QSL330 | - |
| CATERPILLAR 525B | - | SKIDDER | - | CATERPILLAR 3126 | - |
| CATERPILLAR 533 | - | FORESTRY EQUIPMENT | - | CATERPILLAR 3126 | - |
| CATERPILLAR 543 | - | FORESTRY EQUIPMENT | - | CATERPILLAR 3126 | - |
| CATERPILLAR 545 | - | FORESTRY EQUIPMENT | - | - 545 | - |
| CATERPILLAR 793D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 797B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3524B | - |
| CATERPILLAR CHALLENGER 35 | - | TRACTOR | - | CATERPILLAR 3116 | - |
| JOHN DEERE 8100 | - | TRACTOR | 8000 SERIES | JOHN DEERE 6081H | - |
| JOHN DEERE 8110 | - | TRACTOR | 8000 SERIES | JOHN DEERE 6081H | - |
| JOHN DEERE 8200 | - | TRACTOR | 8000 SERIES | JOHN DEERE 6076H | - |
| JOHN DEERE 8210 | - | TRACTOR | 8000 SERIES | JOHN DEERE 6081H | - |
| JOHN DEERE 8300 | - | TRACTOR | 8000 SERIES | JOHN DEERE 6081H | - |
| JOHN DEERE 8310 | - | TRACTOR | 8000 SERIES | JOHN DEERE 6081H | - |
| JOHN DEERE 8400 | - | TRACTOR | 8000 SERIES | JOHN DEERE 6081H | - |
| JOHN DEERE 8410 | - | TRACTOR | 8000 SERIES | JOHN DEERE 6081H | - |
| JOHN DEERE 9100T | - | TRACTOR | - | JOHN DEERE 6081 | - |
| JOHN DEERE 9300T | - | TRACTOR TRACKED | 9000 SERIES | JOHN DEERE 6125H | - |
| JOHN DEERE 9400T | - | TRACTOR TRACKED | 9000 SERIES | JOHN DEERE 6125H | - |
| NEW HOLLAND T8010 | - | TRACTOR | T8000 SERIES | CUMMINS 6CTAA8.3 | - |
| NEW HOLLAND T8020 | - | TRACTOR | T8000 SERIES | CUMMINS 6CTAA8.3 | - |
| NEW HOLLAND T8030 | - | TRACTOR | T8000 SERIES | CUMMINS 6CTAA8.3 | - |
| NEW HOLLAND T8040 | - | TRACTOR | T8000 SERIES | CUMMINS 6CTAA8.3 | - |
| NEW HOLLAND T8050 | - | TRACTOR | T8000 SERIES | - T8050 | - |
| NEW HOLLAND TG210 | - | TRACTOR | - | - TG210 | - |
| NEW HOLLAND TG255 | - | TRACTOR | - | CUMMINS 6CT8.3 | - |
| NEW HOLLAND TG285 | - | TRACTOR | - | - P164378 | - |
| VERSATILE 320 | - | TRACTOR | - | CUMMINS QSC8.3 | - |
| VERSATILE 400 | - | TRACTOR | - | CUMMINS QSL9 | - |
| VERSATILE 520 | - | TRACTOR | - | CUMMINS QSX15 | - |
