• Donaldson Hydraulic Filter, Spin-On Duramax - Donaldson P170906
1 1

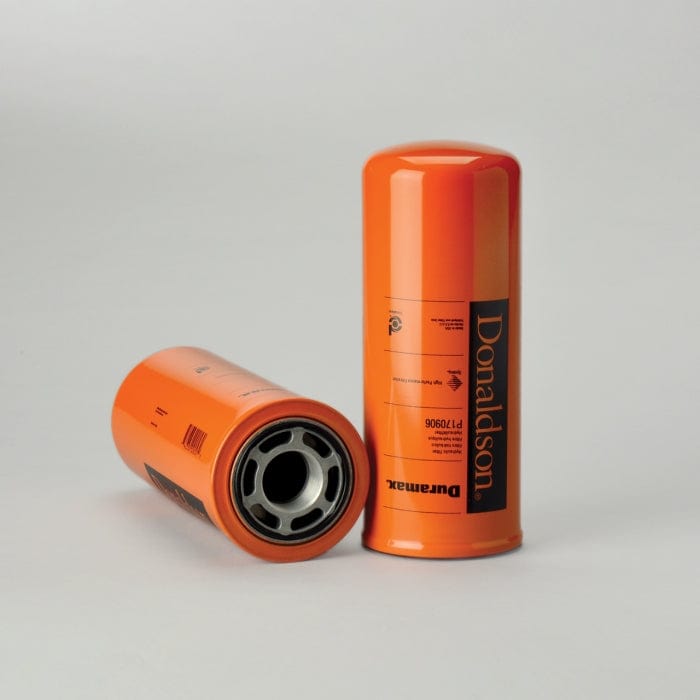

Hydraulic Filter, Spin-On Duramax - Donaldson P170906

Hydraulic Filter, Spin-On Duramax - Donaldson P170906

£102.92
£102.92
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P170906

Hydraulic Filter, Spin-On Duramax
Outer Diameter 4.7 inch (119.4 mm)
Thread Size 1 3/4-12 UN
Length 11.63 inch (295.4 mm)
Gasket OD 3.39 inch (86 mm)
Gasket ID 3.11 inch (79 mm)
Efficiency Beta 1000 7 micron
Style Spin-On
Series HMK05/25
Brand Duramax®
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 119.4 mm (4.7 inch)
  • Thread Size: 1 3/4-12 UN
  • Length: 295.4 mm (11.63 inch)
  • Gasket OD: 86 mm (3.39 inch)
  • Gasket ID: 79 mm (3.11 inch)
  • Efficiency Beta 1000: 7 micron
  • Style: Spin-On
  • Series: HMK05/25
  • Brand: Duramax®
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.45 FT
  • Packaged Width: 0.45 FT
  • Packaged Height: 1.01 FT
  • Packaged Weight: 1.875 kg (4.13 lb)
  • Packaged Volume: 0.006 m3 (0.20 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330020579
