• Donaldson Hydraulic Filter, Spin-On Duramax - Donaldson P170546
1 1

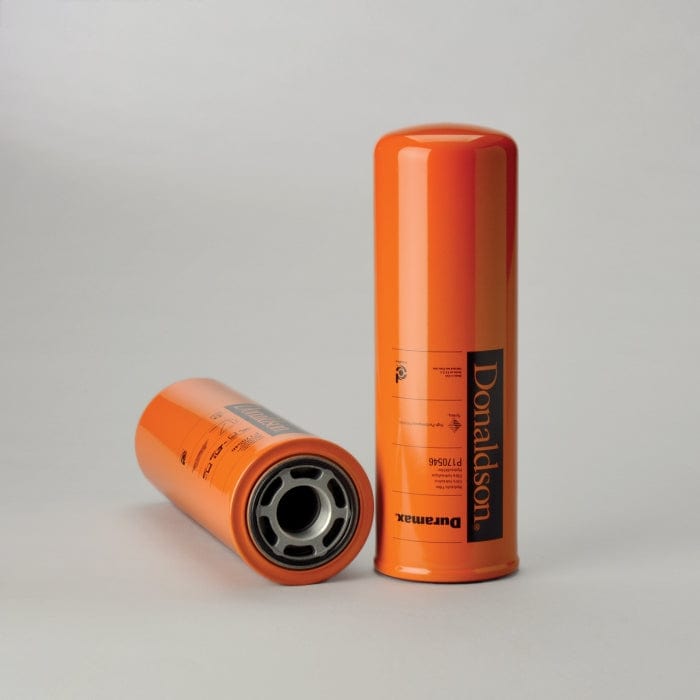

Hydraulic Filter, Spin-On Duramax - Donaldson P170546

Hydraulic Filter, Spin-On Duramax - Donaldson P170546

£125.20
£125.20
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P170546

Hydraulic Filter, Spin-On Duramax
View full details

Specifications

Attributes

  • Outer Diameter: 119.38 mm (4.70 inch)
  • Thread Size: 1 3/4-12 UN
  • Length: 361.69 mm (14.24 inch)
  • Gasket OD: 86 mm (3.39 inch)
  • Gasket ID: 79 mm (3.11 inch)
  • Efficiency Beta 1000: 50 micron
  • Style: Spin-On
  • Brand: Duramax®
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.128 m (5.10 inch)
  • Packaged Width: 0.133 m (5.30 inch)
  • Packaged Height: 0.373 m (14.90 inch)
  • Packaged Weight: 2.179 kg (4.80 lb)
  • Packaged Volume: 0.007 m3 (0.23 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-07
  • HTS Code: 8421298090
  • UPC Code: 742330128169

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CUMMINS HF35438
HAVAM HD0546
OSHKOSH 3HB242
