• Donaldson Hydraulic Filter, Spin-On Duramax - Donaldson P170480
1 1

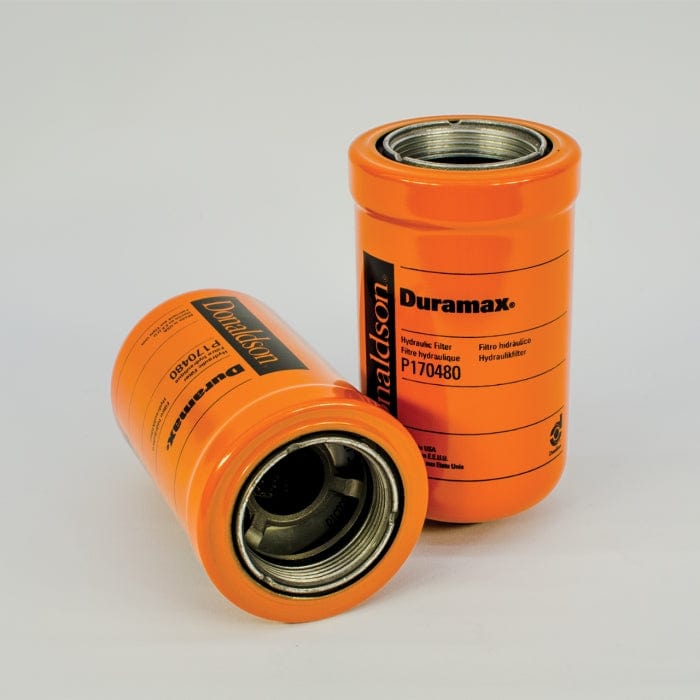

Hydraulic Filter, Spin-On Duramax - Donaldson P170480

Hydraulic Filter, Spin-On Duramax - Donaldson P170480

£51.29
£51.29
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P170480

Hydraulic Filter, Spin-On Duramax
View full details

Specifications

Attributes

  • Outer Diameter: 79.5 mm (3.13 inch)
  • Thread Size: 2-12 UN
  • Length: 140.2 mm (5.52 inch)
  • Gasket OD: 76.2 mm (3.00 inch)
  • Gasket ID: 47 mm (1.85 inch)
  • Efficiency Beta 2: 7 micron
  • Efficiency Beta 1000: 23 micron
  • Style: Spin-On
  • Brand: Duramax®
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.105 m (4.20 inch)
  • Packaged Width: 0.103 m (4.10 inch)
  • Packaged Height: 0.170 m (6.80 inch)
  • Packaged Weight: 0.665 kg (1.47 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330020104

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 92720
BRADEN CARCO GEARMATIC 29645
CATERPILLAR 413948
CATERPILLAR 3I1773
CATERPILLAR 4I3948
CATERPILLAR 4L3948
IHIMER 4010000847
LOESING 140091
VMC HF170480

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 320 - EXCAVATOR TRACKED 300 SERIES CATERPILLAR 3066T -
CATERPILLAR 320B - EXCAVATOR TRACKED 300 SERIES CATERPILLAR 3116T -
CATERPILLAR 320BL - EXCAVATOR TRACKED 300 SERIES CATERPILLAR 3066T -
CATERPILLAR 320BLN - EXCAVATOR TRACKED 300 SERIES CATERPILLAR 3116T -
CATERPILLAR 320BLU - EXCAVATOR TRACKED 300 SERIES CATERPILLAR 3066 -
