• Donaldson Hydraulic Filter, Spin-On Duramax - Donaldson P170313
1 1

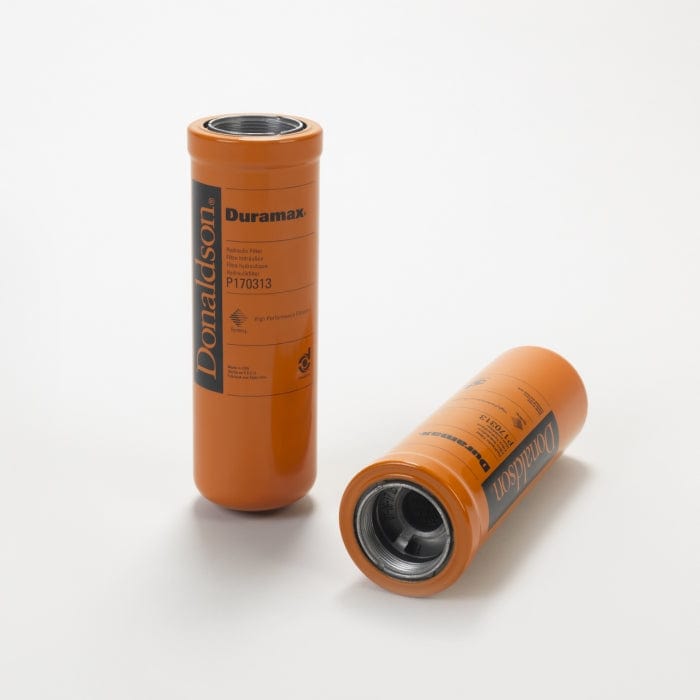

Hydraulic Filter, Spin-On Duramax - Donaldson P170313

Hydraulic Filter, Spin-On Duramax - Donaldson P170313

£83.40
£83.40
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P170313

Hydraulic Filter, Spin-On Duramax
View full details

Specifications

Attributes

  • Outer Diameter: 79.5 mm (3.13 inch)
  • Thread Size: 2-12 UN
  • Length: 241.81 mm (9.52 inch)
  • Gasket OD: 76.2 mm (3.00 inch)
  • Gasket ID: 47 mm (1.85 inch)
  • Efficiency Beta 1000: 23 micron
  • Style: Spin-On
  • Series: HMK03
  • Brand: Duramax®
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.100 m (4.00 inch)
  • Packaged Width: 0.105 m (4.20 inch)
  • Packaged Height: 0.255 m (10.20 inch)
  • Packaged Weight: 1.062 kg (2.34 lb)
  • Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-07
  • HTS Code: 8421298090
  • UPC Code: 742330020050

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ATLAS COPCO 2657622300
BIG A 91119
BIG A 91119
CATERPILLAR P169901
CATERPILLAR 413950
CATERPILLAR P169901
CATERPILLAR 4I3950
CATERPILLAR 1342206
CATERPILLAR 3I1772
CATERPILLAR 4I3950
CATERPILLAR 413950
INGERSOLL RAND 57622300
LOESING 020931
LOESING 20931
LOESING 20931
PETTIBONE TCAY066
TIGERCAT AY066
VMC HF170089
VMC HF170089

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 24H - GRADER 24 SERIES CATERPILLAR 3412TAE1 -
CATERPILLAR 350 - EXCAVATOR TRACKED 300 SERIES CATERPILLAR 3306TA -
CATERPILLAR 350L - EXCAVATOR TRACKED 300 SERIES CATERPILLAR 3306 ATAAC -
CATERPILLAR 365B - EXCAVATOR TRACKED 300 SERIES CATERPILLAR 3196 -
CATERPILLAR 365BL - EXCAVATOR TRACKED 300 SERIES CATERPILLAR 3196 -
