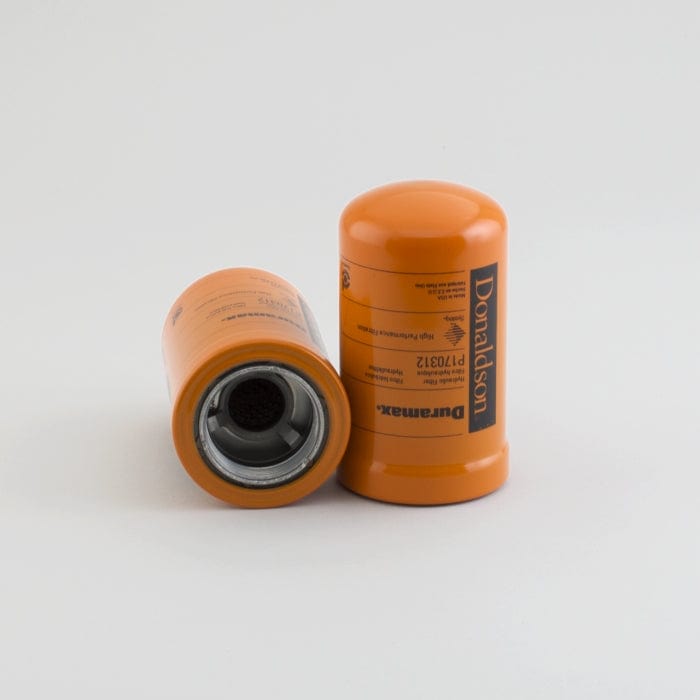

Hydraulic Filter, Spin-On Duramax - Donaldson P170312

Hydraulic Filter, Spin-On Duramax - Donaldson P170312

£81.96
£81.96
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P170312

Hydraulic Filter, Spin-On Duramax
View full details

Specifications

Attributes

  • Outer Diameter: 79.5 mm (3.13 inch)
  • Thread Size: 2-12 UN
  • Length: 140.2 mm (5.52 inch)
  • Gasket OD: 76.2 mm (3.00 inch)
  • Gasket ID: 47.22 mm (1.86 inch)
  • Efficiency Beta 1000: 23 micron
  • Style: Spin-On
  • Series: HMK03
  • Brand: Duramax®
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.103 m (4.10 inch)
  • Packaged Width: 0.103 m (4.10 inch)
  • Packaged Height: 0.170 m (6.80 inch)
  • Packaged Weight: 0.672 kg (1.48 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330020043

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 3I1771
JOHN DEERE RE162577
TCM 2675447001

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
JOHN DEERE 9000 - TRACTOR - - 9000 -
