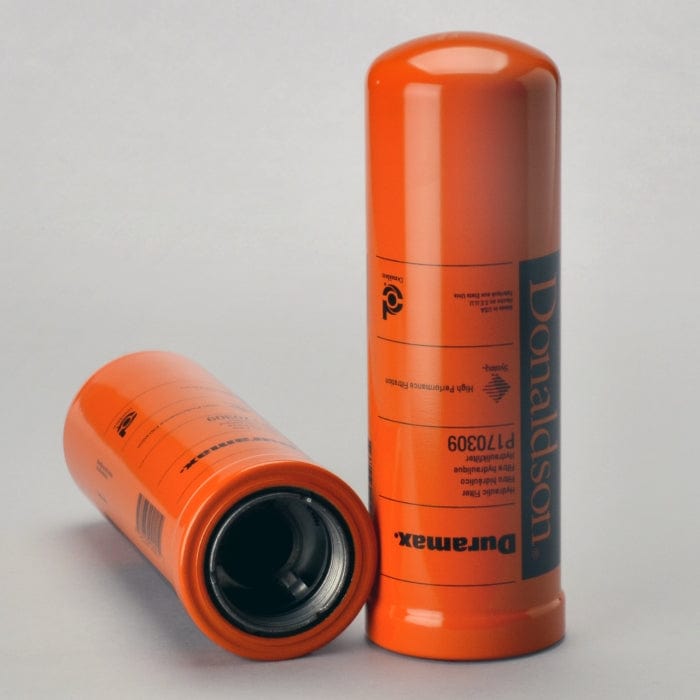

Hydraulic Filter, Spin-On Duramax - Donaldson P170309
Hydraulic Filter, Spin-On Duramax - Donaldson P170309
Regular price
£84.11
Regular price
Sale price
£84.11
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P170309
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 3.13 inch (79.5 mm) |
| Thread Size | 2-12 UN |
| Length | 9.52 inch (241.81 mm) |
| Gasket OD | 3.13 inch (79.5 mm) |
| Gasket ID | 1.85 inch (47 mm) |
| Efficiency Beta 1000 | 6 micron |
| Style | Spin-On |
| Series | HMK03 |
| Brand | Duramax® |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 79.5 mm (3.13 inch)
- Thread Size: 2-12 UN
- Length: 241.81 mm (9.52 inch)
- Gasket OD: 79.5 mm (3.13 inch)
- Gasket ID: 47 mm (1.85 inch)
- Efficiency Beta 1000: 6 micron
- Style: Spin-On
- Series: HMK03
- Brand: Duramax®
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.100 m (4.00 inch)
- Packaged Width: 0.103 m (4.10 inch)
- Packaged Height: 0.258 m (10.30 inch)
- Packaged Weight: 1.051 kg (2.32 lb)
- Packaged Volume: 0.003 m3 (0.10 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-08
- HTS Code: 8421298090
- UPC Code: 742330020012
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BUHLER VERSATILE | 7563220012 | |
| BUHLER VERSATILE | 7563220012 | |
| CATERPILLAR | 1261814 | |
| CATERPILLAR | 3I1766 | |
| CATERPILLAR | 3772873 | |
| CATERPILLAR | 3I1768 | |
| CATERPILLAR | 3I1766 | |
| SUNSOURCE | 1261814 | |
| SUPERPAK COMPACTION | 208151 | |
| VERMEER | 609136003 | |
| VERMEER | 6091360031 | |
| VMC | HF170309 | |
| VME | 208151 | |
| VOLVO | 208151 | |
| VOLVO CONSTRUCTION EQUIPMENT | 208151 | |
| VOLVO PENTA | 208151 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 24H | - | GRADER | 24 SERIES | CATERPILLAR 3412TAE1 | - |
| CATERPILLAR 350 | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3306TA | - |
| CATERPILLAR 350L | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3306 ATAAC | - |
| CATERPILLAR 365B | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3196 | - |
| CATERPILLAR 365BL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3196 | - |
| CATERPILLAR 365BL II | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3196 | - |
| CATERPILLAR 365C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR 374D | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR 375 | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3406C ATAAC | - |
| CATERPILLAR 375L | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3406C ATAAC | - |
| CATERPILLAR 385B | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3456 ATAAC | - |
| CATERPILLAR 385BL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3456 ATAAC | - |
| CATERPILLAR 385C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 385CMHPU | - | POWER UNIT | 300 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 390FL | - | EXCAVATOR TRACKED | - | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 5080 | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3406C ATAAC | - |
| CATERPILLAR 5090B | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3456 | - |
| CATERPILLAR 5110 | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3412E | - |
| CATERPILLAR 5110B | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3412B HEUI | - |
| CATERPILLAR 5130 | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3508B | - |
| CATERPILLAR 5130B | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3508B | - |
| CATERPILLAR 5230 | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 533 | - | FORESTRY EQUIPMENT | - | CATERPILLAR 3126 | - |
| CATERPILLAR 543 | - | FORESTRY EQUIPMENT | - | CATERPILLAR 3126 | - |
| CATERPILLAR 627G | - | SCRAPER | 600 SERIES | CATERPILLAR 3306, C-9 | - |
| CATERPILLAR 631G | - | SCRAPER | - | CATERPILLAR 3408 | - |
| CATERPILLAR 637G | - | SCRAPER | COAL | CATERPILLAR 3408E | - |
| CATERPILLAR 637G | - | SCRAPER | COAL | CATERPILLAR C9 | - |
| CATERPILLAR 637G | - | SCRAPER | COAL | CATERPILLAR 3306 | - |
| CATERPILLAR 638G | - | SCRAPER | - | CATERPILLAR C9 | - |
| CATERPILLAR 769D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3408TAE | - |
| CATERPILLAR 770 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR 771D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3408TAE | - |
| CATERPILLAR 772 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 773D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3412TAE | - |
| CATERPILLAR 773E | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3412TAE | - |
| CATERPILLAR 775D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3412TAE | - |
| CATERPILLAR 775E | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3412TAE | - |
| CATERPILLAR D10T | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C27 ACERT | - |
| CATERPILLAR D11T | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C32 ACERT | - |
| CATERPILLAR RM350 | - | ROAD STABILIZER | RM SERIES | CATERPILLAR 3406C | - |
| CATERPILLAR RM350B | - | ROAD STABILIZER | RM SERIES | CATERPILLAR 3406D DITA | - |
| CATERPILLAR SM350 | - | ROAD STABILIZER | SM SERIES | CATERPILLAR 3406B | - |
| CATERPILLAR TK370 | - | FELLER BUNCHER | - | CATERPILLAR 3126 | - |
| CATERPILLAR TK380 | - | FELLER BUNCHER | - | CATERPILLAR 3126 | - |
