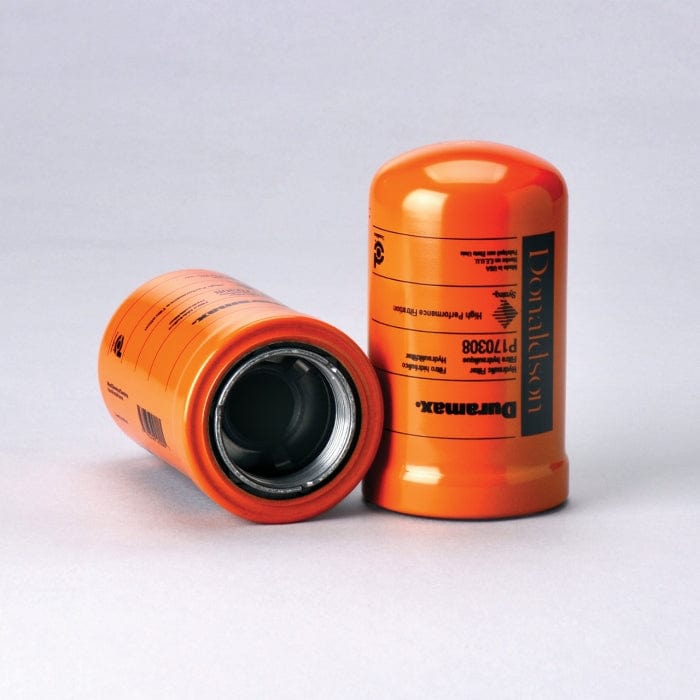

Hydraulic Filter, Spin-On Duramax - Donaldson P170308
Hydraulic Filter, Spin-On Duramax - Donaldson P170308
Regular price
£60.63
Regular price
Sale price
£60.63
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P170308
Hydraulic Filter, Spin-On DuramaxShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 79.5 mm (3.13 inch)
- Thread Size: 2-12 UN
- Length: 140.21 mm (5.52 inch)
- Gasket OD: 79.5 mm (3.13 inch)
- Gasket ID: 47 mm (1.85 inch)
- Efficiency Beta 1000: 6 micron
- Style: Spin-On
- Series: HMK03
- Brand: Duramax®
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.103 m (4.10 inch)
- Packaged Width: 0.103 m (4.10 inch)
- Packaged Height: 0.170 m (6.80 inch)
- Packaged Weight: 0.681 kg (1.50 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330020005
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CATERPILLAR | 1588987 | Filter element only |
| CATERPILLAR | 3I1765 | |
| CATERPILLAR | 1261813 | |
| CATERPILLAR | 3I1767 | |
| CATERPILLAR | 3I1765 | |
| DITCH WITCH | 149939A | |
| DITCH WITCH | 149939 | |
| NILFISK-ADVANCE INCORPORATED | 56679000 | |
| NILFISK-ADVANCE INCORPORATED | 56507781 | |
| VERMEER | 609135003 | |
| VMC | HF170308 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 307D | - | EXCAVATOR TRACKED | 300 SERIES | MITSUBISHI 4M40 | - |
| CATERPILLAR 308D CR | - | EXCAVATOR TRACKED | 300 SERIES | MITSUBISHI 4M40 | - |
| CATERPILLAR 312C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3064T | - |
| CATERPILLAR 312D | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C4.2 ACERT | - |
| CATERPILLAR 315C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3046T | - |
| CATERPILLAR 315D | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C4.2 ACERT | - |
| CATERPILLAR 318C | - | EXCAVATOR TRACKED | - | CATERPILLAR 3066T | - |
| CATERPILLAR 319C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3066T | - |
| CATERPILLAR 319D | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C4.2 ACERT | - |
| CATERPILLAR 320 | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3066T | - |
| CATERPILLAR 320B | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR 320BL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3066T | - |
| CATERPILLAR 320BLN | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR 320BLU | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3066 | - |
| CATERPILLAR 320BN | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3066T | - |
| CATERPILLAR 320BS | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR 320BU | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR 320C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3066T | - |
| CATERPILLAR 320D | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C6.4 ACERT | - |
| CATERPILLAR 320D LRR | - | EXCAVATOR | - | CATERPILLAR C6.4 | - |
| CATERPILLAR 320DL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C6.4 ACERT | - |
| CATERPILLAR 320L | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR 320N | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR 320S | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR 322 | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 322B | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 322BL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 322BLN | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 322C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR 322CL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126B ATAAC | - |
| CATERPILLAR 322L | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR 323DL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C6.4 ACERT | - |
| CATERPILLAR 323DLN | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C6.4 ACERT | - |
| CATERPILLAR 323DMHPU | - | POWER UNIT | 300 SERIES | CATERPILLAR C6.4 ACERT | - |
| CATERPILLAR 324D | - | EXCAVATOR TRACKED | - | CATERPILLAR C7 ACERT | - |
| CATERPILLAR 324DL | - | EXCAVATOR TRACKED | - | CATERPILLAR C7 ACERT | - |
| CATERPILLAR 324DMHPU | - | POWER UNIT | - | CATERPILLAR C7 ACERT | - |
| CATERPILLAR 325 | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 325B | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 325BL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 325BLN | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 325C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR 325CFP | - | FORESTRY EQUIPMENT | - | CATERPILLAR 3116 | - |
| CATERPILLAR 325CL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR 325CMHPU | - | POWER UNIT | 300 SERIES | CATERPILLAR C7 ACERT | - |
| CATERPILLAR 325D | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C7 ACERT | - |
| CATERPILLAR 325DL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C7 ACERT | - |
| CATERPILLAR 325DMHPU | - | POWER UNIT | 300 SERIES | CATERPILLAR C7 ACERT | - |
| CATERPILLAR 325L | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 330 | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3306TA | - |
| CATERPILLAR 330B | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3306TA | - |
| CATERPILLAR 330BL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3306TA | - |
| CATERPILLAR 330BLN | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3306TA | - |
| CATERPILLAR 330C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C9 | - |
| CATERPILLAR 330C | - | EXCAVATOR TRACKED | - | - 330C | - |
| CATERPILLAR 330CFP | - | FORESTRY EQUIPMENT | - | CATERPILLAR 3304B | - |
| CATERPILLAR 330CL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C9 | - |
| CATERPILLAR 330CMHPU | - | POWER UNIT | 300 SERIES | CATERPILLAR C9 | - |
| CATERPILLAR 330D | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR 330DL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR 330DLN | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR 330DMHPU | - | POWER UNIT | 300 SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR 330L | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3306TA | - |
| CATERPILLAR 330LN | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3306TA | - |
| CATERPILLAR 345B | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3176TAA | - |
| CATERPILLAR 345B II | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3176C ATAAC | - |
| CATERPILLAR 345BL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3176TAA | - |
| CATERPILLAR 345BLC | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3176TAA | - |
| CATERPILLAR 345C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13 ACERT | - |
| CATERPILLAR 345CL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13 ACERT | - |
| CATERPILLAR 345CMHPU | - | POWER UNIT | 300 SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR 345D | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13 ACERT | - |
| CATERPILLAR 345DL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13 ACERT | - |
| CATERPILLAR 365BMH | - | MISC EQUIPMENT | - | - 365BMH | - |
| CATERPILLAR 365CMH | - | MISC EQUIPMENT | - | - 365CMH | - |
| CATERPILLAR 769D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3408TAE | - |
| CATERPILLAR 770 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR 771D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3408TAE | - |
| CATERPILLAR 772 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 772 | - | HAUL TRUCK | - | CATERPILLAR C18TAACERT | - |
| CATERPILLAR 773D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3412TAE | - |
| CATERPILLAR 773E | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3412TAE | - |
| CATERPILLAR 773F | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C27TA ACERT | - |
| CATERPILLAR 773G | - | HAUL TRUCK | - | CATERPILLAR C27TAACERT | - |
| CATERPILLAR 775E | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3412TAE | - |
| CATERPILLAR 775F | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C27TA ACERT | - |
| CATERPILLAR 776D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3508TAE | - |
| CATERPILLAR 777E | - | HAUL TRUCK | - | CATERPILLAR C32TAACERT | - |
| CATERPILLAR 950G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126TA | - |
| CATERPILLAR 950G II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126BTA4 | - |
| CATERPILLAR 962G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126TA | - |
| CATERPILLAR 962G II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126BTA4 | - |
| CATERPILLAR 966G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306 DITA | - |
| CATERPILLAR 966G II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3176TAA | - |
| CATERPILLAR 972G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306TA | - |
| CATERPILLAR 972G II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3196TAE | - |
| CATERPILLAR 993K | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C32TA ACERT | - |
| CATERPILLAR D8T | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR D9T | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR M325C | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR 3126B ATAAC | - |
| CATERPILLAR TK711 | - | FELLER BUNCHER | - | CATERPILLAR C9 | - |
| CATERPILLAR TK721 | - | FELLER BUNCHER | - | CATERPILLAR C9 | - |
| CATERPILLAR TK722 | - | FELLER BUNCHER | - | CATERPILLAR C9 | - |
| CATERPILLAR TK732 | - | FELLER BUNCHER | - | CATERPILLAR C9 | - |
| CATERPILLAR W345C | - | EXCAVATOR WHEELED | W SERIES | CATERPILLAR C13 ACERT | - |
