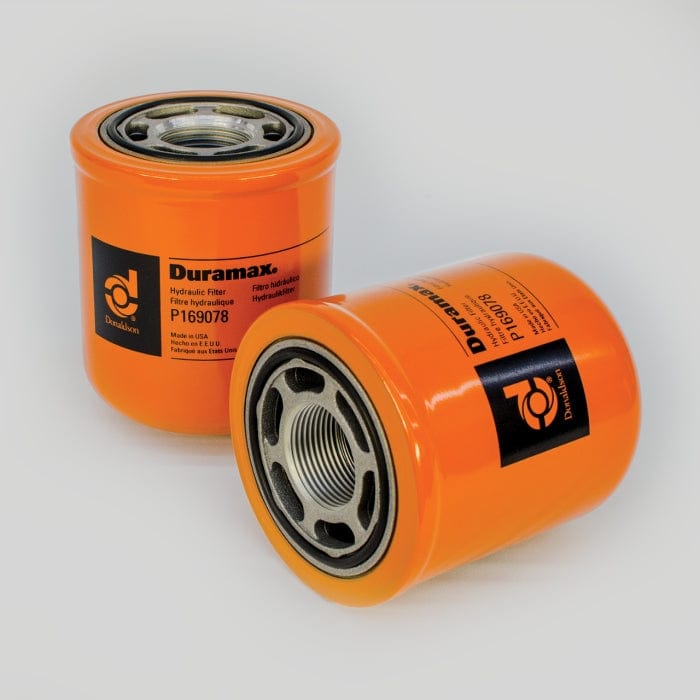

Hydraulic Filter, Spin-On Duramax - Donaldson P169078
Hydraulic Filter, Spin-On Duramax - Donaldson P169078
Regular price
£37.77
Regular price
Sale price
£37.77
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P169078
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 3.82 inch (97 mm) |
| Thread Size | 1 3/8-12 UN |
| Length | 4.47 inch (113.54 mm) |
| Gasket OD | 2.76 inch (70 mm) |
| Gasket ID | 2.48 inch (63 mm) |
| Efficiency Beta 2 | 7 micron |
| Efficiency Beta 1000 | 23 micron |
| Style | Spin-On |
| Media Type | Synthetic |
| Primary Application | JOHN DEERE AM102723 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 97 mm (3.82 inch)
- Thread Size: 1 3/8-12 UN
- Length: 113.54 mm (4.47 inch)
- Gasket OD: 70 mm (2.76 inch)
- Gasket ID: 63 mm (2.48 inch)
- Efficiency Beta 2: 7 micron
- Efficiency Beta 1000: 23 micron
- Style: Spin-On
- Media Type: Synthetic
- Primary Application: JOHN DEERE AM102723
Packaged Dimensions
- Packaged Length: 0.100 m (4.00 inch)
- Packaged Width: 0.100 m (4.00 inch)
- Packaged Height: 0.158 m (6.30 inch)
- Packaged Weight: 0.795 kg (1.75 lb)
- Packaged Volume: 0.002 m3 (0.06 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069095-02
- HTS Code: 8421298090
- UPC Code: 742330018996
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALLMAND BROS | 14722302100 | |
| BIG A | 92586 | |
| BOBCAT | 7319444 | |
| BOBCAT | 6686929 | |
| CATERPILLAR | 3I0743 | |
| JOHN DEERE | AM102723 | |
| JOHN DEERE | AM108613 | |
| KRALINATOR | L586 | |
| LOESING | 020354 | |
| LOESING | 20354 | |
| LONG | LG4235 | |
| STENSELE | 120842 | |
| TORO | 751330 | |
| TORO | 751320 | |
| TORO | 1105446 | |
| TORO | 1085194 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687344 | |
| VMC | HF169078 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| BOBCAT S650 | - | SKID STEER LOADER | S SERIES | KUBOTA V3307DIT | - |
| JOHN DEERE 2500 | - | LAWN EQUIPMENT | - | - 2500 | - |
| JOHN DEERE 2500 | - | LAWN EQUIPMENT | - | YANMAR 3TNE68 | - |
| JOHN DEERE 2500A | - | LAWN EQUIPMENT | - | - 2500A | - |
| JOHN DEERE 2500E | - | LAWN EQUIPMENT | - | - 2500E | - |
| JOHN DEERE 2653A | - | LAWN EQUIPMENT | - | YANMAR 3TNE68 | - |
| JOHN DEERE 4200 | - | TRACTOR | 4000 SERIES | YANMAR 3TNE78 | - |
| JOHN DEERE 4210 | - | TRACTOR | 4000 SERIES | YANMAR 3TNE82 | - |
| JOHN DEERE 4300 | - | TRACTOR | 4000 SERIES | YANMAR 3TNE84 | - |
| JOHN DEERE 4310 | - | TRACTOR | 4000 SERIES | YANMAR 3TNE84 | - |
| JOHN DEERE 4400 | - | TRACTOR | 4000 SERIES | YANMAR 3TNE88 | - |
| JOHN DEERE 4410 | - | TRACTOR | 4000 SERIES | YANMAR 3TNE88 | - |
| JOHN DEERE 4500 | - | TRACTOR | 4000 SERIES | YANMAR 4TNE84 | - |
| JOHN DEERE 4510 | - | TRACTOR | 4000 SERIES | YANMAR 4TNE84 | - |
| JOHN DEERE 4600 | - | TRACTOR | 4000 SERIES | YANMAR 4TNE84 | - |
| JOHN DEERE 4610 | - | TRACTOR | 4000 SERIES | YANMAR 4TNE84 | - |
| JOHN DEERE 4700 | - | TRACTOR | 4000 SERIES | YANMAR 4TNE88 | - |
| JOHN DEERE 655 | - | TRACTOR | 600 SERIES | YANMAR 3TN66E | - |
| JOHN DEERE 655 | - | TRACTOR | - | - 655 | - |
| JOHN DEERE 755 | - | TRACTOR | - | - 755 | - |
| JOHN DEERE 755 | - | TRACTOR | - | YANMAR 3TNA72E | - |
| JOHN DEERE 756 | - | TRACTOR | - | - 756 | - |
| JOHN DEERE 855 | - | TRACTOR | 800 SERIES | - 855 | - |
| JOHN DEERE 855 | - | TRACTOR | - | YANMAR 3TNE78 | - |
| JOHN DEERE 856 | - | TRACTOR | - | - 856 | - |
| JOHN DEERE 955 | - | TRACTOR | 900 SERIES | YANMAR 3TNE84 | - |
| JOHN DEERE F1145 | - | LAWN EQUIPMENT | - | YANMAR 3TN75 | - |
| JOHN DEERE F1145 | - | LAWN EQUIPMENT | - | YANMAR 3TN78 | - |
| TORO REELMASTER 5100D | - | MOWER | - | - REELMASTER 5100D | - |
| TORO REELMASTER 5200D | - | MOWER | - | - REELMASTER 5200D | - |
| TORO REELMASTER 5300D | - | MOWER | - | - REELMASTER 5300D | - |
| TORO REELMASTER 5400D | - | MOWER | - | - REELMASTER 5400D | - |
| TORO REELMASTER 5500D | - | MOWER | - | - REELMASTER 5500D | - |
