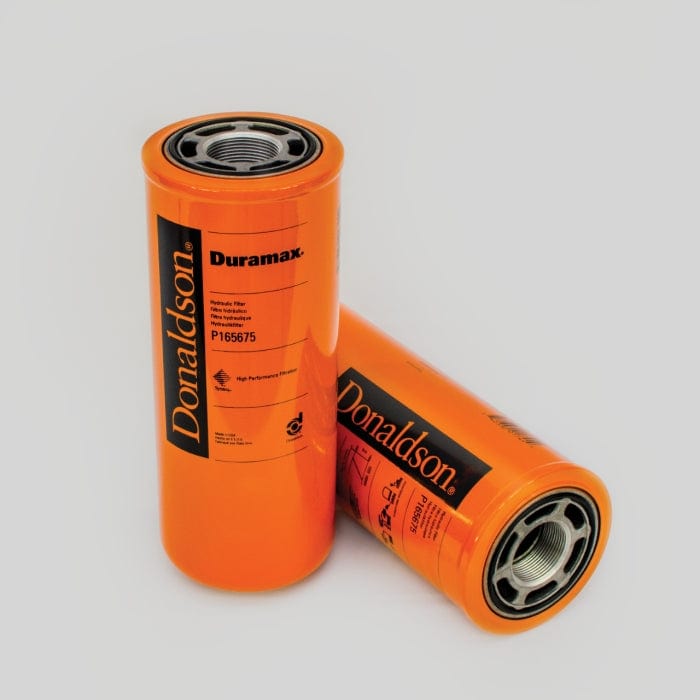

Hydraulic Filter, Spin-On Duramax - Donaldson P165675
Hydraulic Filter, Spin-On Duramax - Donaldson P165675
Regular price
£71.52
Regular price
Sale price
£71.52
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P165675
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 4.76 inch (121 mm) |
| Thread Size | 1 3/4-12 UN |
| Length | 11.63 inch (295.4 mm) |
| Gasket OD | 3.39 inch (86 mm) |
| Gasket ID | 3.11 inch (79 mm) |
| Efficiency Beta 1000 | 5 micron |
| Style | Spin-On |
| Series | HMK05/25 |
| Brand | Duramax® |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 121 mm (4.76 inch)
- Thread Size: 1 3/4-12 UN
- Length: 295.4 mm (11.63 inch)
- Gasket OD: 86 mm (3.39 inch)
- Gasket ID: 79 mm (3.11 inch)
- Efficiency Beta 1000: 5 micron
- Style: Spin-On
- Series: HMK05/25
- Brand: Duramax®
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.135 m (5.40 inch)
- Packaged Width: 0.135 m (5.40 inch)
- Packaged Height: 0.300 m (12.00 inch)
- Packaged Weight: 1.998 kg (4.40 lb)
- Packaged Volume: 0.006 m3 (0.20 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330017449
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ATLAS COPCO | 5541230800 | |
| AVN HYDRAULICS | 138110 | |
| AVN HYDRAULICS | 1000182 | |
| BUHLER VERSATILE | 500386 | |
| CATERPILLAR | 2254118 | |
| CATERPILLAR | 121817 | |
| CATERPILLAR | 3I1911 | |
| CATERPILLAR | 4656505 | |
| CATERPILLAR | 1261817 | |
| CATERPILLAR | 3I1878 | |
| CATERPILLAR | 3I1878 | |
| CHAMPION ROAD | 45543 | |
| F.B.O. | K51301 | |
| FREIGHTLINER | DNP165675 | |
| GEHL | P220700 | |
| GROVE | 1005878 | |
| JOHN DEERE | RE38987 | |
| LOESING | 140554 | |
| MANITOWOC | 1005878 | |
| MARINE TRAVELIFT, INC. | 1005878 | |
| SHUTTLELIFT INC | 1005878 | |
| SULLAIR | 408409 | |
| TORO | 866110 | |
| VMC | HF165675 | |
| VOLVO | 49076 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 414E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 416B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 416C | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 416D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054B | - |
| CATERPILLAR 416E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR C4.4 | - |
| CATERPILLAR 420D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 420D | - | BACKHOE LOADER | - | CATERPILLAR 3054T | - |
| CATERPILLAR 420E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 420E | - | BACKHOE LOADER | - | CATERPILLAR C4.4T | - |
| CATERPILLAR 420E IT | - | BACKHOE LOADER | - | CATERPILLAR C4.4T | - |
| CATERPILLAR 422E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 424D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054B | - |
| CATERPILLAR 426B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 426C | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 428B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 428C | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 428D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 428DNF | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 428E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 430D | - | BACKHOE LOADER | - | CATERPILLAR 3054C | - |
| CATERPILLAR 430D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 430E | - | BACKHOE LOADER | - | CATERPILLAR C4.4 | - |
| CATERPILLAR 430E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 430E | - | BACKHOE LOADER | - | CATERPILLAR C4.4T | - |
| CATERPILLAR 432D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 432E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 434E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 436B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 436C | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 438B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 438C | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 438D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 442D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 442E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 444E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 446 | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3114 | - |
| CATERPILLAR 446B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3114T | - |
| CATERPILLAR 446D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3114T | - |
| CATERPILLAR 561N | - | PIPE LAYER | 500 SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR 65E | - | TRACTOR | - | CATERPILLAR 3176 | - |
| CATERPILLAR 75D | - | TRACTOR | - | CATERPILLAR 3176 | - |
| CATERPILLAR 75E | - | TRACTOR | - | CATERPILLAR 3176 | - |
| CATERPILLAR 784B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512 | - |
| CATERPILLAR 785 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512TA | - |
| CATERPILLAR 785B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512 | - |
| CATERPILLAR 785C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512BTA | - |
| CATERPILLAR 785D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512CTA | - |
| CATERPILLAR 793C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 834G | - | DOZER WHEELED | 800 SERIES | CATERPILLAR 3456CE | - |
| CATERPILLAR 834H | - | DOZER WHEELED | 800 SERIES | CATERPILLAR C18TA ACERT | - |
| CATERPILLAR 836G | - | COMPACTOR | 800 SERIES | CATERPILLAR 3456 | - |
| CATERPILLAR 836H | - | COMPACTOR | 800 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 854G | - | DOZER WHEELED | 800 SERIES | CATERPILLAR 3508TA | - |
| CATERPILLAR 854K | - | DOZER WHEELED | 800 SERIES | CATERPILLAR C32TA ACERT | - |
| CATERPILLAR 85E | - | TRACTOR | - | CATERPILLAR 3196 | - |
| CATERPILLAR 938H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6TA ACERT | - |
| CATERPILLAR 950H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C7TA ACERT | - |
| CATERPILLAR 953C | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR 95E | - | TRACTOR | - | CATERPILLAR 3196 | - |
| CATERPILLAR 962H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C7TA ACERT | - |
| CATERPILLAR 963C | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR 963C II | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3126B ATAAC | - |
| CATERPILLAR 966H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C11TA ACERT | - |
| CATERPILLAR 972H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C13TA ACERT | - |
| CATERPILLAR 973C | - | LOADER TRACKED | 900 SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR 988G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3456CE1 | - |
| CATERPILLAR 988H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C18TA ACERT | - |
| CATERPILLAR 988K | - | LOADER WHEELED | - | CATERPILLAR C18 | - |
| CATERPILLAR 992G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3508TA | - |
| CATERPILLAR 992K | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C32 ACERT | - |
| CATERPILLAR 993K | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C32TA ACERT | - |
| CATERPILLAR 994F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 994G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR CT660 | - | TRUCK | - | CATERPILLAR CT13 | - |
| CATERPILLAR CT660 | - | TRUCK | - | CATERPILLAR CT15 | - |
| CATERPILLAR CT660 | - | TRUCK | - | CATERPILLAR CT11 | - |
| CATERPILLAR D4E | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR D5N LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR D5N XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR D6N LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR D6N XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR IT38H | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 6.6 ACERT | - |
| CATERPILLAR IT62H | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR C7 ACERT | - |
| CATERPILLAR RM500 | - | ROAD STABILIZER | RM SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR TH103 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR TH62 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR TH63 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR TH82 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR TH83 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CHAMPION ROAD 710 | - | GRADER | - | CUMMINS 6BT5.9 | - |
| CHAMPION ROAD 710A | - | GRADER | - | CUMMINS 6BT5.9 | - |
| CHAMPION ROAD 740 | - | GRADER | - | CUMMINS LT10 | - |
| CHAMPION ROAD 740A | - | GRADER | - | CUMMINS LT10 | - |
| CHAMPION ROAD 750 | - | GRADER | - | CUMMINS LT10 | - |
| CHAMPION ROAD 750A | - | GRADER | - | CUMMINS LT10 | - |
| CHAMPION ROAD 780 | - | GRADER | - | CUMMINS LT10 | - |
| CHAMPION ROAD 780A | - | GRADER | - | CUMMINS LT10 | - |
