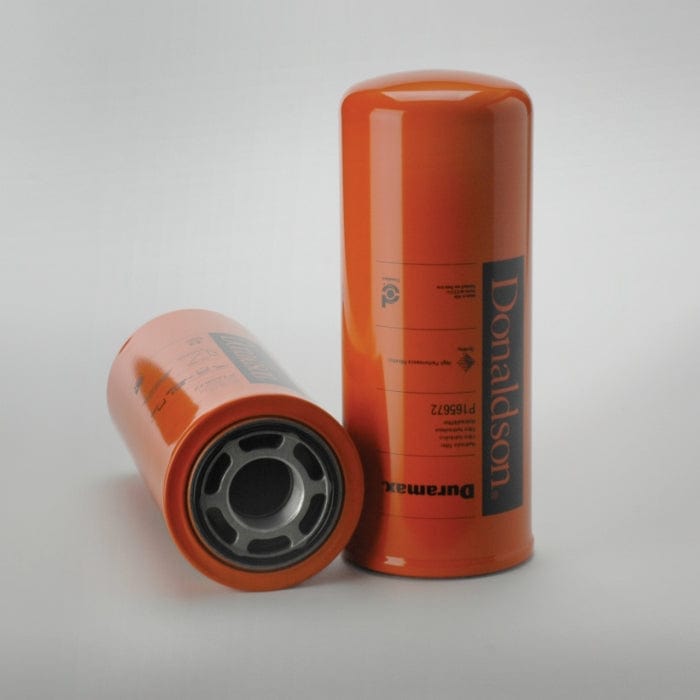

Hydraulic Filter, Spin-On Duramax - Donaldson P165672
Hydraulic Filter, Spin-On Duramax - Donaldson P165672
Regular price
£87.23
Regular price
Sale price
£87.23
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P165672
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 4.76 inch (121 mm) |
| Thread Size | 1 3/4-12 UN |
| Length | 11.63 inch (295.4 mm) |
| Gasket OD | 3.39 inch (86 mm) |
| Gasket ID | 3.11 inch (79 mm) |
| Efficiency Beta 2 | 14 micron |
| Efficiency Beta 1000 | 50 micron |
| Style | Spin-On |
| Series | HMK05/25 |
| Brand | Duramax® |
| Media Type | Synthetic |
| Primary Application | LEROI 438931 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 121 mm (4.76 inch)
- Thread Size: 1 3/4-12 UN
- Length: 295.4 mm (11.63 inch)
- Gasket OD: 86 mm (3.39 inch)
- Gasket ID: 79 mm (3.11 inch)
- Efficiency Beta 2: 14 micron
- Efficiency Beta 1000: 50 micron
- Style: Spin-On
- Series: HMK05/25
- Brand: Duramax®
- Media Type: Synthetic
- Primary Application: LEROI 438931
Packaged Dimensions
- Packaged Length: 0.138 m (5.51 inch)
- Packaged Width: 0.138 m (5.51 inch)
- Packaged Height: 0.315 m (12.60 inch)
- Packaged Weight: 1.998 kg (4.40 lb)
- Packaged Volume: 0.006 m3 (0.22 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069095-02
- HTS Code: 8421298090
- UPC Code: 742330017432
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AIRMAN-HOKUETSU | 3743805400 | |
| ATLAS COPCO | 36860336 | |
| BIG A | 92721 | |
| CATERPILLAR | 3I0695 | |
| COMPAIR | 438931 | |
| DEZZI | 350017 | |
| EPIROC | 2658588642 | |
| F.B.O. | K5133 | |
| FORD | 9576P165672 | |
| FREIGHTLINER | DNP165672 | |
| IMPERIAL | CV102713 | |
| INGERSOLL RAND | 36758613 | |
| INGERSOLL RAND | 36860336 | |
| INGERSOLL RAND | 36860337 | |
| JOY | LT4213817 | |
| KNECHT | HC114 | |
| LEROI | 438931 | |
| LETOURNEAU | 4213817 | |
| LINK BELT | 3J18360 | |
| LOESING | 020314 | |
| LOESING | 20314 | |
| SISU | 00660152 | |
| SISU | 660152 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 919897 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 367204 | |
| VMC | HF165672 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ATLAS COPCO CM760 | - | DRILLING EQUIPMENT | - | CATERPILLAR C10 | - |
| ATLAS COPCO CM765 | - | DRILLING EQUIPMENT | - | CATERPILLAR C11 | - |
| ATLAS COPCO DM30 | - | DRILLING EQUIPMENT | - | CATERPILLAR C15 | - |
| ATLAS COPCO DM45 | - | DRILLING EQUIPMENT | - | CATERPILLAR C18 | - |
| INGERSOLL RAND 1300 SERIES | - | COMPRESSOR | - | - 1300 SERIES | - |
| INGERSOLL RAND HR2.5 | - | COMPRESSOR | - | - HR2.5 | - |
| INGERSOLL RAND P375WCU | - | COMPRESSOR | - | CUMMINS 4BT3.9 | - |
| INGERSOLL RAND XHP600SCAT | - | COMPRESSOR | - | CATERPILLAR 3306TA | - |
| INGERSOLL RAND XHP650WCAT | - | COMPRESSOR | - | CATERPILLAR 3306TA | - |
| INGERSOLL RAND XHP750CM | - | COMPRESSOR | - | - XHP750CM | - |
| INGERSOLL RAND XHP900WCAT | - | COMPRESSOR | - | CATERPILLAR 3406TA | - |
