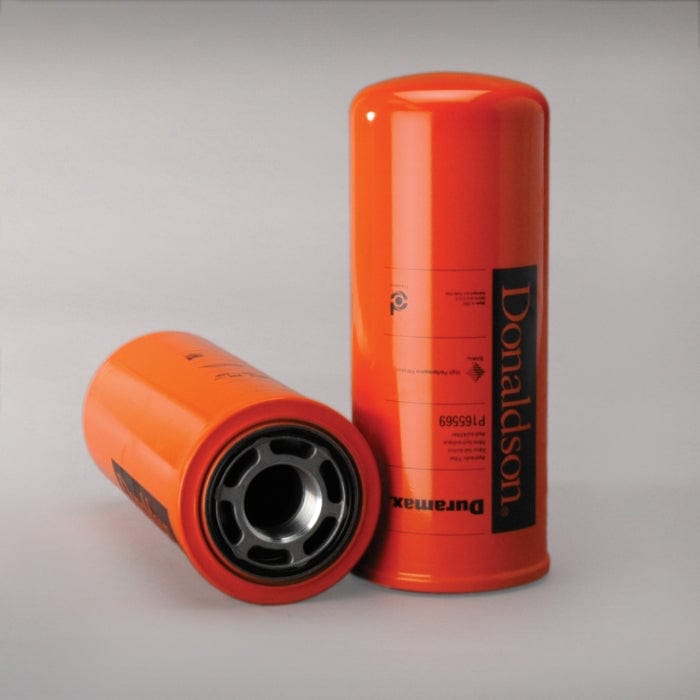

Hydraulic Filter, Spin-On Duramax - Donaldson P165569
Hydraulic Filter, Spin-On Duramax - Donaldson P165569
Regular price
£62.43
Regular price
Sale price
£62.43
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P165569
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 4.76 inch (121 mm) |
| Thread Size | 1 3/4-12 UN |
| Length | 11.63 inch (295.4 mm) |
| Gasket OD | 3.39 inch (86 mm) |
| Gasket ID | 3.11 inch (79 mm) |
| Efficiency Beta 2 | 7 micron |
| Efficiency Beta 200 | 18 micron |
| Efficiency Beta 1000 | 23 micron |
| Style | Spin-On |
| Series | HMK05/25 |
| Brand | Duramax® |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 121 mm (4.76 inch)
- Thread Size: 1 3/4-12 UN
- Length: 295.4 mm (11.63 inch)
- Gasket OD: 86 mm (3.39 inch)
- Gasket ID: 79 mm (3.11 inch)
- Efficiency Beta 2: 7 micron
- Efficiency Beta 200: 18 micron
- Efficiency Beta 1000: 23 micron
- Style: Spin-On
- Series: HMK05/25
- Brand: Duramax®
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.135 m (5.40 inch)
- Packaged Width: 0.135 m (5.40 inch)
- Packaged Height: 0.310 m (12.40 inch)
- Packaged Weight: 1.952 kg (4.30 lb)
- Packaged Volume: 0.006 m3 (0.21 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330017326
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ABAC COMPRESSED AIR | 8973036934 | |
| ABAC COMPRESSED AIR | 9618258 | |
| AGCO | 3632352M1 | |
| AIRMAN-HOKUETSU | 3743803800 | |
| ALLIED SYSTEM | 247429 | |
| ATLAS COPCO | 375711 | |
| ATLAS COPCO | 5537463100 | |
| ATLAS COPCO | 374631 | |
| ATLAS COPCO | 243622 | |
| BARKO HYDRAULICS | 56500119 | |
| BELL | 220945 | |
| BERGERAT MONNOYEUR | E5124 | |
| BIG A | 92730 | |
| BIG A | 92733 | |
| CASE/CASE IH | 84324774 | |
| CASE/CASE IH | 87707946 | |
| CATERPILLAR | 9T0973 | |
| CATERPILLAR | 3I0696 | |
| CATERPILLAR | 3I0687 | |
| CHAMPION ROAD | 37104 | |
| CHAMPION ROAD | 49076 | |
| CLARK | 965899 | |
| CLARK | 2394165 | |
| CLARK | 956899 | |
| CLARK | 243622 | |
| CLARK | 062394165 | |
| CLARK | 290243622 | |
| CLARK | 62394165 | |
| CLARK,J.L. | 965899 | |
| CLARK,J.L. | 243622 | |
| COMPACTION AMERICA | 0398764 | |
| COMPACTION AMERICA | 0398754 | |
| DAEWOO | 44749036S | |
| DAEWOO | 44749036 | |
| DAEWOO | 243622 | |
| DANA | 24362290 | |
| DOOSAN | 46671454 | |
| DRESSER | LK3008 | |
| DRESSER | 31478131200 | |
| DRILTECH | 4698884 | |
| DRILTECH | 04698884 | |
| DYNAPAC | 196444 | |
| DYNAPAC | 196446 | |
| EIMCO | 04698884 | |
| EIMCO | 4698884 | |
| EIMCO | CL243622 | |
| EPIROC | 6060008040 | |
| EUCLID | M0965899 | |
| EUCLID | 965899 | |
| EUCLID | 9658998 | |
| F.B.O. | K51303 | |
| FERMEL | 45402606 | |
| FIAT | 73154094 | |
| FORD | 9576P165569 | |
| FORD | 9576P165705 | |
| FPC | DDP165569 | |
| FREIGHTLINER | DNP165569 | |
| FREIGHTLINER | DNP165705 | |
| FURUKAWA | 31478131200 | |
| FUSHENG AIRMAN | 374803800 | |
| GILLIG | 8232725000 | |
| GROVE | 1003152 | |
| GROVE | 9437100555 | |
| HAVAM | HD8822 | |
| HAVAM | HD5569 | |
| HIGHPOWEREQUIPMENT | HF6586 | |
| HOUGH | 1282320C1 | |
| HURRICANE COMPRESSOR | 62272 | |
| HYSTER | 398754 | |
| HYSTER | 1392399 | |
| HYSTER | 1469258 | |
| INGERSOLL RAND | 51302214 | |
| INTRUPA | 83432 | |
| JOHN DEERE | RE25045 | |
| JOY | 1023685 | |
| KALMAR | 9231090717 | |
| KOMATSU | LK3008 | |
| KRALINATOR | L1730 | |
| KRALINATOR | L255 | |
| LETOURNEAU | 4186037 | |
| LINK BELT | E1A0080 | |
| LOESING | 20038 | |
| LOESING | 021920 | |
| LOESING | 21920 | |
| MANITOWOC | 1003152 | |
| MARINE TRAVELIFT, INC. | 1003152 | |
| MASSEY FERGUSON | 3632352M1 | |
| MICHIGAN | 965899 | |
| MOUVEX | 50451312 | |
| MOUVEX | 219612 | |
| NACCO MATERIALS | 1392399 | |
| NEOPLAN | DONP165569 | |
| NEW HOLLAND | 87707945 | |
| NEW HOLLAND | 87588813 | |
| NEW HOLLAND | 73154094 | |
| ORENSTEIN & KOPPEL | 7384996 | |
| OSHKOSH | 3HB243 | |
| POWERLINK | P0179245 | |
| SANDVIK | 04698884 | |
| SANDVIK | 4698884 | |
| SANY | B222100000106 | |
| SHUTTLELIFT INC | 1003152 | |
| SISU | 800820026 | |
| SULLIVAN PALATEK | 19005200036 | |
| TAMROCK | 4698884 | |
| TAMROCK | 04698884 | |
| TAYLOR | 4404454 | |
| TAYLOR | 4044454 | |
| TELEDYNE | 26110159 | |
| TEREX | B6150592 | |
| TIMBERJACK | 549739 | |
| TROJAN | 7384996 | |
| TROJAN | 738499600 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 905796 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687252 | |
| UP LIFTING VERTICAL S.A. | 54900A60000070 | |
| VMC | HF165569 | |
| VMC | HF165705 | |
| VME | 965899 | |
| VME | 9658998 | |
| VOLVO | M0965899 | |
| VOLVO | 49076 | |
| VOLVO | 965899 | |
| VOLVO | 9658998 | |
| VOLVO CONSTRUCTION EQUIPMENT | MI965899 | |
| WAGNER | 5537463100 | |
| WAGNER MINING EQUIPMENT | 243622 | |
| WAGNER MINING EQUIPMENT | 374631 | |
| WALGAHN-MOTORENTECHN | 811016 | |
| WALGAHN-MOTORENTECHN | 811018 | |
| WESTERN STAR TRUCK | 196446 | |
| ZANOTTI | 1978 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ATLAS COPCO ST8C | - | DRILLING EQUIPMENT | - | - ST8C | - |
| CASE/CASE IH 165CVT | - | TRACTOR | PUMA | - 165CVT | - |
| CASE/CASE IH 195CVT | - | TRACTOR | PUMA | - 195CVT | - |
| CASE/CASE IH 6165 CVT | - | TRACTOR | CVT SERIES - STEYR | - 6165 CVT | - |
| CASE/CASE IH 6180 CVT | - | TRACTOR | CVT SERIES - STEYR | - 6180 CVT | - |
| CASE/CASE IH 6200 CVT | - | TRACTOR | CVT SERIES - STEYR | - 6200 CVT | - |
| CASE/CASE IH 6210 CVT | - | TRACTOR | CVT SERIES - STEYR | - 6210 CVT | - |
| CASE/CASE IH MAGNUM 180 | - | TRACTOR | FWD | CASE/CASE IH 6.7L | - |
| CASE/CASE IH PUMA 195 CVX | - | TRACTOR | PUMA | - PUMA 195 CVX | - |
| CASE/CASE IH PUMA 210 CVX | - | TRACTOR | PUMA | - PUMA 210 CVX | - |
| CATERPILLAR 416B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 416C | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 426B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 426C | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 428B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 428C | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 436B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 436C | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 438B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 438C | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 446 | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3114 | - |
| CATERPILLAR 627F | - | SCRAPER | - | - 627F | - |
| CATERPILLAR 627G | - | SCRAPER | 600 SERIES | CATERPILLAR 3306, C-9 | - |
| CATERPILLAR 631G | - | SCRAPER | - | CATERPILLAR 3408 | - |
| CATERPILLAR 633E | - | SCRAPER | - | CATERPILLAR 3408TAE | - |
| CATERPILLAR 637G | - | SCRAPER | COAL | CATERPILLAR 3408E | - |
| CATERPILLAR 637G | - | SCRAPER | COAL | CATERPILLAR C9 | - |
| CATERPILLAR 637G | - | SCRAPER | COAL | CATERPILLAR 3306 | - |
| CATERPILLAR 638G | - | SCRAPER | - | CATERPILLAR C9 | - |
| CATERPILLAR 65B | - | TRACTOR | - | CATERPILLAR 3306 | - |
| CATERPILLAR 65E | - | TRACTOR | - | CATERPILLAR 3176 | - |
| CATERPILLAR 70C | - | TRACTOR | - | CATERPILLAR 3176 | - |
| CATERPILLAR 70C | - | TRACTOR | - | CATERPILLAR 3306 | - |
| CATERPILLAR 75D | - | TRACTOR | - | CATERPILLAR 3176 | - |
| CATERPILLAR 75D US | - | TRACTOR | - | CATERPILLAR 3176 | - |
| CATERPILLAR 75E | - | TRACTOR | - | CATERPILLAR 3176 | - |
| CATERPILLAR 75E US | - | TRACTOR | - | CATERPILLAR 3176 | - |
| CATERPILLAR 85C | - | TRACTOR | - | CATERPILLAR 3176 | - |
| CATERPILLAR 85E | - | TRACTOR | - | CATERPILLAR 3196 | - |
| CATERPILLAR 95E | - | TRACTOR | - | CATERPILLAR 3196 | - |
| CATERPILLAR 988G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3456CE1 | - |
| CATERPILLAR AD45B | - | DUMP TRUCK ARTICULATED | - | - AD45B | - |
| CATERPILLAR AD55 | - | MINING EQUIPMENT | - | CATERPILLAR 3406E | - |
| CATERPILLAR CHALLENGER 65 | - | TRACTOR | - | - CHALLENGER 65 | - |
| CATERPILLAR CHALLENGER 65B | - | TRACTOR | - | CATERPILLAR 3306TA | - |
| CATERPILLAR CHALLENGER 65C | - | TRACTOR | - | - CHALLENGER 65C | - |
| CATERPILLAR CHALLENGER 65D | - | TRACTOR | - | - CHALLENGER 65D | - |
| CATERPILLAR CHALLENGER 65E | - | TRACTOR | - | - CHALLENGER 65E | - |
| CATERPILLAR CHALLENGER 70 | - | TRACTOR | - | - CHALLENGER 70 | - |
| CATERPILLAR CHALLENGER 75 | - | TRACTOR | - | - CHALLENGER 75 | - |
| CATERPILLAR CHALLENGER 75C | - | TRACTOR | - | - CHALLENGER 75C | - |
| CATERPILLAR CHALLENGER 75D | - | TRACTOR | - | - CHALLENGER 75D | - |
| CATERPILLAR CHALLENGER 75E | - | TRACTOR | - | - CHALLENGER 75E | - |
| CATERPILLAR CHALLENGER 85 | - | TRACTOR | - | - CHALLENGER 85 | - |
| CATERPILLAR CHALLENGER 85C | - | TRACTOR | - | - CHALLENGER 85C | - |
| CATERPILLAR CHALLENGER 85E | - | TRACTOR | - | - CHALLENGER 85E | - |
| CATERPILLAR CHALLENGER 95E | - | TRACTOR | - | - CHALLENGER 95E | - |
| CATERPILLAR D4E | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR D6G | - | DOZER TRACKED | - | CATERPILLAR 3306 | - |
| CATERPILLAR PM465 | - | PLANER | - | CATERPILLAR 3406 | - |
| CATERPILLAR SPF343 | - | GENERATOR SET | - | - SPF343 | - |
| CHAMPION ROAD 710 | - | GRADER | - | CUMMINS 6BT5.9 | - |
| CHAMPION ROAD 710A | - | GRADER | - | CUMMINS 6BT5.9 | - |
| CHAMPION ROAD 740 | - | GRADER | - | CUMMINS LT10 | - |
| CHAMPION ROAD 740A | - | GRADER | - | CUMMINS LT10 | - |
| CHAMPION ROAD 750 | - | GRADER | - | CUMMINS LT10 | - |
| CHAMPION ROAD 750A | - | GRADER | - | CUMMINS LT10 | - |
| CHAMPION ROAD 780 | - | GRADER | - | CUMMINS LT10 | - |
| CHAMPION ROAD 780A | - | GRADER | - | CUMMINS LT10 | - |
| CLARK 275C | - | LOADER WHEELED | - | CUMMINS KT1150 | - |
| CLARK 280C | - | DOZER WHEELED | - | - 280C | - |
| CLARK 35C | - | LOADER WHEELED | - | PERKINS 4.58A | - |
| CLARK 380B | - | DOZER WHEELED | - | CUMMINS VT1710 | - |
| CLARK 380B | - | DOZER WHEELED | - | DETROIT DIESEL 16V-71N | - |
| CLARK 45C | - | LOADER WHEELED | - | - 45C | - |
| CLARK 45C | - | LOADER WHEELED | - | DETROIT DIESEL 3-53T | - |
| CLARK 45C | - | LOADER WHEELED | - | PERKINS 4.59A | - |
| CLARK 475C | - | LOADER WHEELED | - | CUMMINS VTA1710 | - |
| CLARK 55C | - | LOADER WHEELED | - | CUMMINS V378 | - |
| CLARK 55C | - | LOADER WHEELED | - | DETROIT DIESEL 4-53N | - |
| CLARK L190 | - | FORKLIFT | - | - L190 | - |
| DOOSAN MEGA 400-III | - | LOADER WHEELED | MEGA SERIES | DOOSAN D2366T | - |
| EPIROC MT65 | - | HAUL TRUCK | - | CUMMINS QSK19 | - |
| INGERSOLL RAND ECM370 | - | DRILLING EQUIPMENT | - | - ECM370 | - |
| INGERSOLL RAND ECM375D | - | DRILLING EQUIPMENT | - | - ECM375D | - |
| INGERSOLL RAND ECM490 | - | DRILLING EQUIPMENT | - | - ECM490 | - |
| INGERSOLL RAND ECM590 | - | DRILLING EQUIPMENT | - | - ECM590 | - |
| INGERSOLL RAND ECM680 | - | DRILLING EQUIPMENT | - | CUMMINS 6CT8.3 | - |
| NEW HOLLAND T7070 | - | TRACTOR | T7000 SERIES | NEW HOLLAND NEF | - |
