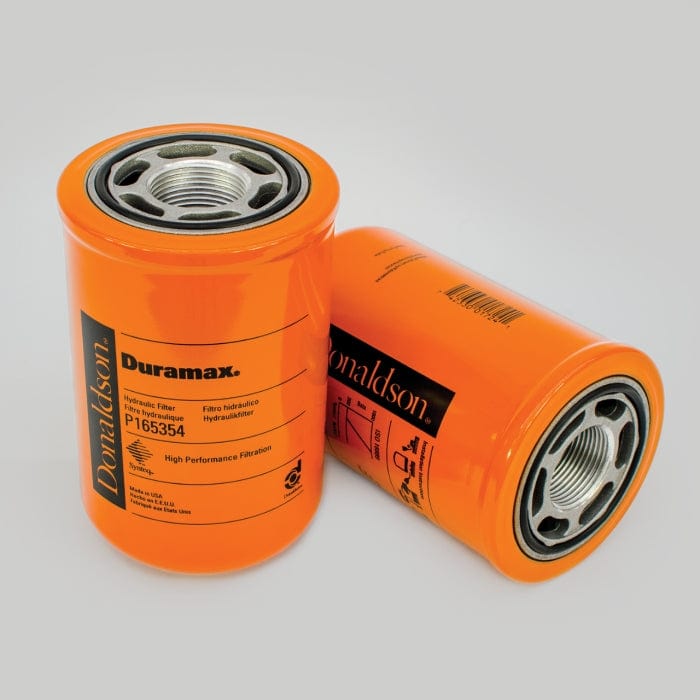

Hydraulic Filter, Spin-On Duramax - Donaldson P165354
Hydraulic Filter, Spin-On Duramax - Donaldson P165354
Regular price
£47.91
Regular price
Sale price
£47.91
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P165354
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 3.82 inch (97 mm) |
| Thread Size | 1 3/8-12 UN |
| Length | 5.97 inch (151.64 mm) |
| Gasket OD | 2.76 inch (70 mm) |
| Gasket ID | 2.48 inch (63 mm) |
| Efficiency Beta 2 | 4 micron |
| Efficiency Beta 1000 | 6 micron |
| Efficiency Test Std | ISO 16889 |
| Style | Spin-On |
| Series | HMK04/24 |
| Brand | Duramax® |
| Media Type | Synteq XP |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 97 mm (3.82 inch)
- Thread Size: 1 3/8-12 UN
- Length: 151.64 mm (5.97 inch)
- Gasket OD: 70 mm (2.76 inch)
- Gasket ID: 63 mm (2.48 inch)
- Efficiency Beta 2: 4 micron
- Efficiency Beta 1000: 6 micron
- Efficiency Test Std: ISO 16889
- Style: Spin-On
- Series: HMK04/24
- Brand: Duramax®
- Media Type: Synteq XP
Packaged Dimensions
- Packaged Length: 0.103 m (4.10 inch)
- Packaged Width: 0.103 m (4.10 inch)
- Packaged Height: 0.160 m (6.40 inch)
- Packaged Weight: 0.890 kg (1.96 lb)
- Packaged Volume: 0.002 m3 (0.06 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069095-02
- HTS Code: 8421298090
- UPC Code: 742330017241
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | 1R61709 | |
| ALLMAND BROS | 920788 | |
| AMERICAN PARTS | 92457 | |
| BELL | 221669 | |
| BIG A | 92457 | |
| CASE/CASE IH | 222759A1 | |
| CASE/CASE IH | 22759A1 | |
| CATERPILLAR | 3I1909 | |
| CATERPILLAR | 1261815 | |
| DITCH WITCH | KCY068A | |
| DITCH WITCH | 149874 | |
| DITCH WITCH | 149874A | |
| DITCH WITCH | TST006600118 | |
| DITCH WITCH | 5001784 | |
| ELEMENTSIX | 6201041064 | |
| FARMHAND | 1R61709 | |
| FORD | 3576P165354 | |
| FORD | 9576P165454 | |
| FORD | 9576P165354 | |
| FORD | E8NN6A692AA | |
| GEHL | L99440 | |
| JCB | 58118000 | |
| JLG | 7025028 | |
| JLG | 7041595 | |
| KRALINATOR | L457 | |
| LOESING | 20452 | |
| LOESING | 020452 | |
| MCNEILUS | 12KP854 | |
| NEW HOLLAND | E8NN6A692AA | |
| OTTAWA TRUCK | 207102 | |
| PRINCETON DELIVERY SYSTEMS | 207102 | |
| SKYJACK | 08333 | |
| SKYJACK | 708333 | |
| SKYJACK | 138398A | |
| TESMEC | V006600025 | |
| THERMO KING | 664917 | |
| TORO | 751310 | |
| TORO | 1104146 | |
| VERMEER | 296257496 | |
| VERSATILE | E8NN6A692AA | |
| VMC | HF165354 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 85XT | - | SKID STEER LOADER | - | CUMMINS 4B3.9 | - |
| CASE/CASE IH 90XT | - | SKID STEER LOADER | - | CUMMINS 4BT3.9 | - |
| CASE/CASE IH 95XT | - | SKID STEER LOADER | - | CUMMINS 4BT3.9 | - |
| CATERPILLAR 725 | - | DUMP TRUCK ARTICULATED | 700 SERIES | CATERPILLAR 3176C | - |
| CATERPILLAR 730 | - | DUMP TRUCK ARTICULATED | 700 SERIES | CATERPILLAR 3196TAE | - |
| CATERPILLAR 740 | - | DUMP TRUCK ARTICULATED | 700 SERIES | CATERPILLAR 3406E | - |
| CATERPILLAR AP1000 | - | PAVER | AP SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR AP1000B | - | PAVER | AP SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR AP1050 | - | PAVER | AP SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR AP1050B | - | PAVER | AP SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR AP1055B | - | PAVER | AP SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR AP650B | - | PAVER | AP SERIES | CATERPILLAR 3054TA | - |
| CATERPILLAR AP800B | - | PAVER | AP SERIES | PERKINS T4.236 | - |
| CATERPILLAR AP800C | - | PAVER | AP SERIES | CATERPILLAR 3054 DIT | - |
| CATERPILLAR AP800D | - | PAVER | AP SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR AP900B | - | PAVER | AP SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR BG225C | - | PAVER | BG SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR BG230 | - | PAVER | BG SERIES | CATERPILLAR 3054 DIT | - |
| CATERPILLAR BG230D | - | PAVER | BG SERIES | CATERPILLAR 3054C ATAAC | - |
| CATERPILLAR BG240C | - | PAVER | BG SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR BG2455C | - | PAVER | BG SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR BG245C | - | PAVER | BG SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR BG260C | - | PAVER | BG SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR CB14 | - | COMPACTOR | CB SERIES | CATERPILLAR C1.1 | - |
| CATERPILLAR CB214C | - | COMPACTOR | CB SERIES | HATZ 2M40L | - |
| CATERPILLAR CB214D | - | COMPACTOR | CB SERIES | CATERPILLAR 3013 | - |
| CATERPILLAR CB214E | - | COMPACTOR | CB SERIES | CATERPILLAR 3013 | - |
| CATERPILLAR CB22 | - | COMPACTOR | CB SERIES | CATERPILLAR C1.5 | - |
| CATERPILLAR CB224D | - | COMPACTOR | CB SERIES | CATERPILLAR 3013 | - |
| CATERPILLAR CB224E | - | COMPACTOR | CB SERIES | CATERPILLAR 3013 | - |
| CATERPILLAR CB225D | - | COMPACTOR | CB SERIES | CATERPILLAR 3013 | - |
| CATERPILLAR CB225E | - | COMPACTOR | CB SERIES | CATERPILLAR 3013 | - |
| CATERPILLAR CB24 | - | COMPACTOR | CB SERIES | CATERPILLAR C1.5 | - |
| CATERPILLAR CB32 | - | COMPACTOR | CB SERIES | CATERPILLAR C1.5 | - |
| CATERPILLAR CB334D | - | COMPACTOR | CB SERIES | CATERPILLAR 3014 | - |
| CATERPILLAR CB334E | - | COMPACTOR | CB SERIES | CATERPILLAR 3024C | - |
| CATERPILLAR CB334E II | - | COMPACTOR | CB SERIES | CATERPILLAR 3024C | - |
| CATERPILLAR CB335D | - | COMPACTOR | CB SERIES | CATERPILLAR 3013 | - |
| CATERPILLAR CB335E | - | COMPACTOR | CB SERIES | CATERPILLAR 3024C | - |
| CATERPILLAR CB335E II | - | COMPACTOR | CB SERIES | CATERPILLAR 3024C | - |
| CATERPILLAR CB34 | - | COMPACTOR | CB SERIES | CATERPILLAR C1.5 | - |
| CATERPILLAR CB34XW | - | COMPACTOR | CB SERIES | CATERPILLAR C1.5 | - |
| CATERPILLAR CC24 | - | COMPACTOR | CC SERIES | CATERPILLAR C1.5 | - |
| CATERPILLAR CC34 | - | COMPACTOR | CC SERIES | CATERPILLAR C2.2 | - |
| CATERPILLAR D3G LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046T | TIER 2 |
| CATERPILLAR D3G LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046T | - |
| CATERPILLAR D3G XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046T | TIER 2 |
| CATERPILLAR D3G XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046T | - |
| CATERPILLAR D3K | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C4.4 ACERT | - |
| CATERPILLAR D4G LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046T | TIER 2 |
| CATERPILLAR D4G LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046T | - |
| CATERPILLAR D4G XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046T | TIER 2 |
| CATERPILLAR D4G XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046T | - |
| CATERPILLAR D4K LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C4.4 ACERT | - |
| CATERPILLAR D4K XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C4.4 ACERT | - |
| CATERPILLAR D5G LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046T | TIER 2 |
| CATERPILLAR D5G LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046T | - |
| CATERPILLAR D5G XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046T | TIER 2 |
| CATERPILLAR D5G XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046T | - |
| CATERPILLAR D5K | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C4.4 ACERT | - |
| CATERPILLAR D5N LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR D5N XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR D6N LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR D6N XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR M325B | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR RM250C | - | ROAD STABILIZER | RM SERIES | CATERPILLAR 3406C DITA | - |
| CATERPILLAR RM300 | - | ROAD STABILIZER | RM SERIES | CATERPILLAR C11 ACERT | - |
| CATERPILLAR RM350 | - | ROAD STABILIZER | RM SERIES | CATERPILLAR 3406C | - |
| CATERPILLAR RM350B | - | ROAD STABILIZER | RM SERIES | CATERPILLAR 3406D DITA | - |
| CATERPILLAR RM500 | - | ROAD STABILIZER | RM SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR RR250 | - | ROAD STABILIZER | RR SERIES | CATERPILLAR 3406 DITA | - |
| CATERPILLAR RR250B | - | ROAD STABILIZER | RR SERIES | CATERPILLAR 3406C | - |
| CATERPILLAR SM350 | - | ROAD STABILIZER | SM SERIES | CATERPILLAR 3406B | - |
| CATERPILLAR SS250 | - | ROAD STABILIZER | SS SERIES | CATERPILLAR 3406B | - |
| CATERPILLAR SS250B | - | ROAD STABILIZER | SS SERIES | CATERPILLAR 3406C | - |
| DITCH WITCH HT220 | - | TRENCHER | - | CUMMINS QSB5.9 | - |
| GEHL AL730 | - | TELEHANDLER | - | JOHN DEERE 4045 | - |
| GEHL DL10 DYNALIFT | - | TELEHANDLER | - | JOHN DEERE 4045 | - |
| GEHL DL10 DYNALIFT | - | TELEHANDLER | - | PERKINS 4.0L | - |
| GEHL DL12 DYNALIFT | - | TELEHANDLER | - | PERKINS 4.0L | - |
| GEHL DL12 DYNALIFT | - | TELEHANDLER | - | JOHN DEERE 4045 | - |
| GEHL DL6 DYNALIFT | - | TELEHANDLER | - | JOHN DEERE 4045 | - |
| GEHL DL6 DYNALIFT | - | TELEHANDLER | - | PERKINS 4.0L | - |
| GEHL DL8 DYNALIFT | - | TELEHANDLER | - | JOHN DEERE 4045 | - |
| GEHL DL8 DYNALIFT | - | TELEHANDLER | - | PERKINS 4.0L | - |
| THERMO KING SB-II | - | REFRIGERATION UNIT | - | MERCEDES-BENZ OM 636 | - |
| THERMO KING SB-II | - | REFRIGERATION UNIT | - | ISUZU C201 | - |
| THERMO KING SB-III | - | REFRIGERATION UNIT | - | ISUZU 2.2L | - |
| THERMO KING SB-III | - | REFRIGERATION UNIT | - | ISUZU SE2.2 | - |
| THERMO KING SENTRY | - | REFRIGERATION UNIT | - | ISUZU C201 | - |
| THERMO KING SENTRY | - | REFRIGERATION UNIT | - | MERCEDES-BENZ OM 636 | - |
| THERMO KING SUPER II | - | REFRIGERATION UNIT | - | ISUZU 4FE1T | - |
| THERMO KING SUPER II | - | REFRIGERATION UNIT | - | ISUZU 4JC1 | - |
| TORO GREEENMASTER 3200D | - | TRACTOR | - | - GREEENMASTER 3200D | - |
| TORO GROUNDSMASTER 4100D | - | MOWER | - | - GROUNDSMASTER 4100D | - |
| TORO GROUNDSMASTER 4500D | - | MOWER | - | KUBOTA V2003-TE | - |
| TORO REELMASTER 5100D | - | MOWER | - | - REELMASTER 5100D | - |
| TORO REELMASTER 5200D | - | MOWER | - | - REELMASTER 5200D | - |
| TORO REELMASTER 5300D | - | MOWER | - | - REELMASTER 5300D | - |
| TORO REELMASTER 5400D | - | MOWER | - | - REELMASTER 5400D | - |
