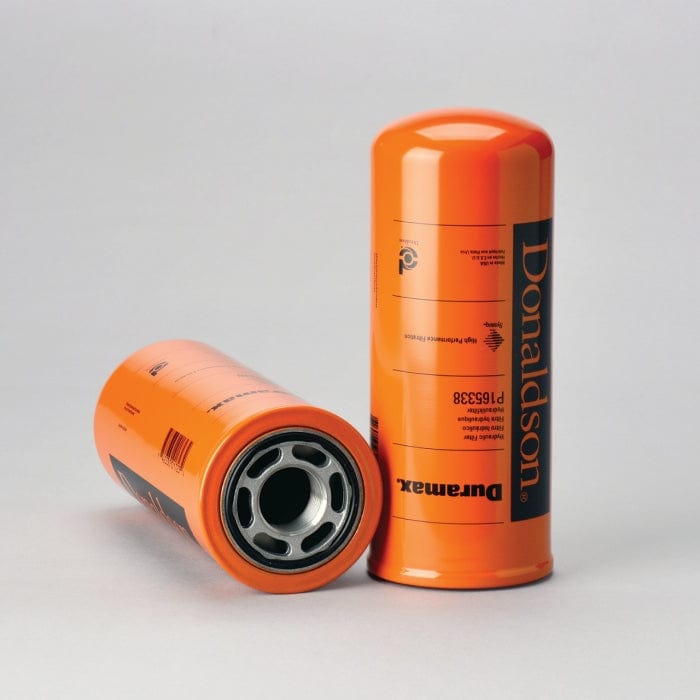

Hydraulic Filter, Spin-On Duramax - Donaldson P165338
Hydraulic Filter, Spin-On Duramax - Donaldson P165338
Regular price
£38.53
Regular price
Sale price
£38.53
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P165338
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 3.82 inch (97 mm) |
| Thread Size | 1 3/8-12 UN |
| Length | 9.44 inch (239.78 mm) |
| Gasket OD | 2.76 inch (70.15 mm) |
| Gasket ID | 2.48 inch (63 mm) |
| Efficiency Beta 2 | 14 micron |
| Efficiency Beta 1000 | 50 micron |
| Efficiency Test Std | ISO 16889 |
| Style | Spin-On |
| Series | HMK04/24 |
| Brand | Duramax® |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 97 mm (3.82 inch)
- Thread Size: 1 3/8-12 UN
- Length: 239.78 mm (9.44 inch)
- Gasket OD: 70.15 mm (2.76 inch)
- Gasket ID: 63 mm (2.48 inch)
- Efficiency Beta 2: 14 micron
- Efficiency Beta 1000: 50 micron
- Efficiency Test Std: ISO 16889
- Style: Spin-On
- Series: HMK04/24
- Brand: Duramax®
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.246 m (9.84 inch)
- Packaged Weight: 1.180 kg (2.60 lb)
- Packaged Volume: 0.003 m3 (0.09 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069095-02
- HTS Code: 8421298090
- UPC Code: 742330017234
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BERGERAT MONNOYEUR | E5148 | |
| BIG A | 92484 | |
| BIG A | 92488 | |
| BIG A | 92498 | |
| CARBOCOL | 001127349 | |
| CASE/CASE IH | 76042658 | |
| CASE/CASE IH | L36242 | |
| CASE/CASE IH | 84476010 | |
| CATERPILLAR | 3I0569 | |
| CATERPILLAR | 4W4810 | |
| CATERPILLAR | 3I0552 | |
| CATERPILLAR | M1X9562 | |
| COMPACTION AMERICA | 031252006 | |
| DAEWOO | D141096 | |
| FORD | 9576P163425 | |
| FORD | 9576P1634252 | |
| FRANKLIN | 30972 | |
| HAVAM | HD3425 | |
| HAWKER SIDDELEY | 10030972 | |
| HAWKER SIDDELEY | 30972 | |
| HITACHI | L76042658 | |
| JOY | LT4116679 | |
| KOEHRING | 31252006 | |
| KRALINATOR | L488 | |
| LETOURNEAU | 4116679 | |
| LOESING | 20775 | |
| LOESING | 020775 | |
| MORBARK | 24517024 | |
| TIGERCAT | AY075 | |
| TORQUIP | 76042658 | |
| TWIN DISC | B3614B | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687140 | |
| VERMEER | 3I1908 | |
| VMC | HF165338 | |
| VMC | AF163558 | |
| VMC | HF163558 | |
| WABCO | 4116679 | |
| WALGAHN-MOTORENTECHN | 00810945 | |
| WALGAHN-MOTORENTECHN | 810945 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH W20C | - | LOADER WHEELED | - | - W20C | - |
| HITACHI D180 | - | DOZER TRACKED | - | CUMMINS 6CT8.3 | - |
| HITACHI DX175 | - | DOZER TRACKED | DX SERIES | FIAT 8365T | - |
| HITACHI DX195L | - | DOZER TRACKED | DX SERIES | FIAT 8365T | - |
| NEW HOLLAND D150 | - | DOZER TRACKED | D SERIES | CUMMINS 6BTAA5.9 | - |
| NEW HOLLAND D180 | - | DOZER TRACKED | D SERIES | CUMMINS 6CTAA8.3 | - |
