• Donaldson Hydraulic Filter, Spin-On Duramax - Donaldson P165185
1 1

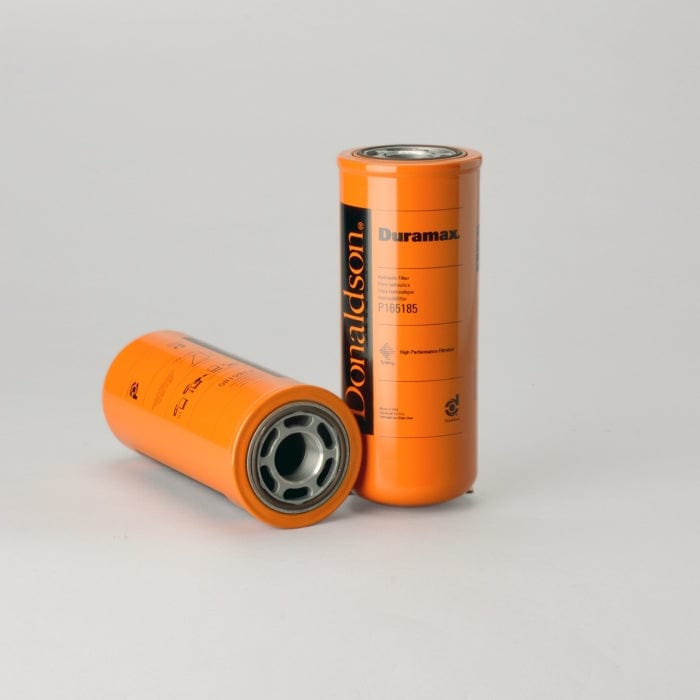

Hydraulic Filter, Spin-On Duramax - Donaldson P165185

Hydraulic Filter, Spin-On Duramax - Donaldson P165185

£64.36
£64.36
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P165185

Hydraulic Filter, Spin-On Duramax
Outer Diameter 3.82 inch (97 mm)
Thread Size 1 3/8-12 UN
Length 9.44 inch (239.78 mm)
Gasket OD 2.76 inch (70 mm)
Gasket ID 2.48 inch (63 mm)
Efficiency Beta 1000 4 micron
Efficiency Test Std ISO 16889
Style Spin-On
Series HMK04/24
Brand Duramax®
Media Type Synthetic
View full details

Specifications

Attributes

  • Filter Note: Water Glycol Compatibility with Fluorocarbon Seals
  • Outer Diameter: 97 mm (3.82 inch)
  • Thread Size: 1 3/8-12 UN
  • Length: 239.78 mm (9.44 inch)
  • Gasket OD: 70 mm (2.76 inch)
  • Gasket ID: 63 mm (2.48 inch)
  • Efficiency Beta 1000: 4 micron
  • Efficiency Test Std: ISO 16889
  • Style: Spin-On
  • Series: HMK04/24
  • Brand: Duramax®
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.103 m (4.10 inch)
  • Packaged Width: 0.105 m (4.20 inch)
  • Packaged Height: 0.253 m (10.10 inch)
  • Packaged Weight: 1.360 kg (3.00 lb)
  • Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421298090
  • UPC Code: 742330017005

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 84475949
GROVE 376023
TIGERCAT AY088

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CASE/CASE IH 420 - SKID STEER LOADER - CASE/CASE IH 422TM2 -
NEW HOLLAND L175 - SKID STEER LOADER - NEW HOLLAND N844LT -
