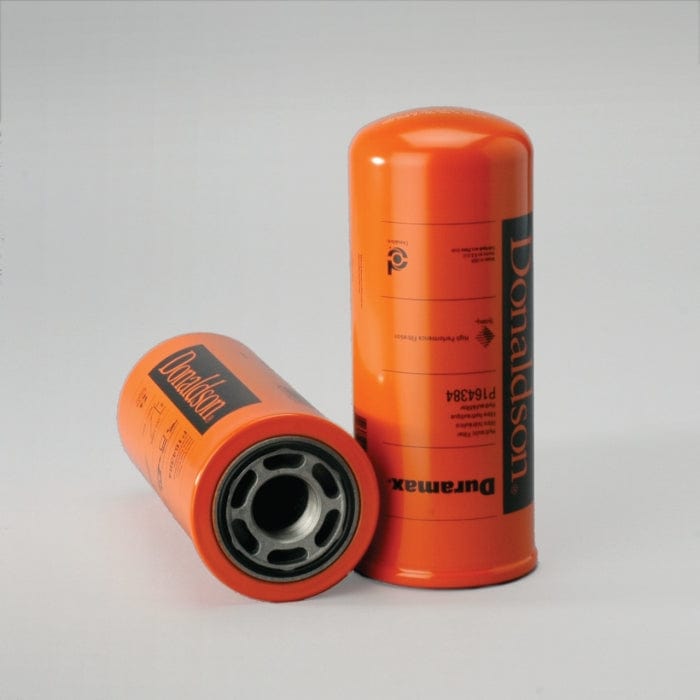

Hydraulic Filter, Spin-On Duramax - Donaldson P164384
Hydraulic Filter, Spin-On Duramax - Donaldson P164384
Regular price
£32.83
Regular price
Sale price
£32.83
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P164384
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 3.82 inch (97 mm) |
| Thread Size | 1 3/8-12 UN |
| Length | 9.44 inch (239.78 mm) |
| Gasket OD | 2.76 inch (70 mm) |
| Gasket ID | 2.48 inch (63 mm) |
| Efficiency Beta 2 | 7 micron |
| Efficiency Beta 1000 | 23 micron |
| Efficiency Test Std | ISO 16889 |
| Style | Spin-On |
| Series | HMK04/24 |
| Brand | Duramax® |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 97 mm (3.82 inch)
- Thread Size: 1 3/8-12 UN
- Length: 239.78 mm (9.44 inch)
- Gasket OD: 70 mm (2.76 inch)
- Gasket ID: 63 mm (2.48 inch)
- Efficiency Beta 2: 7 micron
- Efficiency Beta 1000: 23 micron
- Efficiency Test Std: ISO 16889
- Style: Spin-On
- Series: HMK04/24
- Brand: Duramax®
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.100 m (4.00 inch)
- Packaged Width: 0.100 m (4.00 inch)
- Packaged Height: 0.240 m (9.60 inch)
- Packaged Weight: 1.249 kg (2.75 lb)
- Packaged Volume: 0.002 m3 (0.09 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069095-02
- HTS Code: 8421298090
- UPC Code: 742330016206
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ABAC COMPRESSED AIR | 8973036933 | |
| ABAC COMPRESSED AIR | 9618257 | |
| AC DELCO | PF2152 | |
| AGCO | TRA8320047 | |
| AMERICAN PARTS | 92495 | |
| AMERICAN PARTS | 92485 | |
| AMERICAN PARTS | 92483 | |
| AMTRAK | 2209000369 | |
| AMTRAK | 119644802B | |
| ARGO | TRA8320047 | |
| ASTEC UNDERGROUND | 308105163 | |
| ATLAS COPCO | 1604694401 | |
| ATLAS COPCO | 1604694491 | |
| ATLAS COPCO | 1604694490 | |
| BADGER | 76092861 | |
| BADGER | LG774011 | |
| BERGERAT MONNOYEUR | E5116 | |
| BIG A | 91095 | |
| BIG A | 92495 | |
| BIG A | 92494 | |
| BIG A | 92483 | |
| BIG A | 92481 | |
| BLOUNT | 842808800 | |
| BLOUNT | 10061101 | |
| BLOUNT | 841152800 | |
| BLOUNT | 811583800 | |
| BLOUNT | 61101 | |
| BLOUNT | 0061101 | |
| BOBCAT | 6598903 | |
| BUHLER VERSATILE | 00079446 | |
| CAMECO | RE349588 | |
| CAMECO | 00633016 | |
| CAMECO | 633016 | |
| CAMECO | 0033016 | |
| CAMECO | 33016 | |
| CAMECO | AH114973 | |
| CAMECO | 60033016 | |
| CAMECO | 0060033016J | |
| CAMECO | 0060033016 | |
| CASE/CASE IH | 1346028C1 | |
| CASE/CASE IH | 47917358 | |
| CASE/CASE IH | 89909 | |
| CASE/CASE IH | 84239751 | |
| CASE/CASE IH | 1971727C1 | |
| CASE/CASE IH | D94236 | |
| CASE/CASE IH | 3515328M92 | |
| CASE/CASE IH | N9025 | |
| CASE/CASE IH | D89909 | |
| CASE/CASE IH | N7332 | |
| CASE/CASE IH | 431587A1 | |
| CASE/CASE IH | 1272063X1 | |
| CASE/CASE IH | 94236 | |
| CASE/CASE IH | NP84074777 | |
| CATERPILLAR | 9T5916 | |
| CATERPILLAR | 1353155 | |
| CATERPILLAR | 3I2046 | |
| CATERPILLAR | 3I0612 | |
| CATERPILLAR | 870895 | |
| CATERPILLAR | 3I0549 | |
| CATERPILLAR | 3I0547 | |
| CATERPILLAR | 0870895 | |
| CEDARAPIDS | 0420030078 | |
| CENTURY II | 46Z460 | |
| CHAMPION ROAD | 44419 | |
| CLARK | 2394166 | |
| CLARK | 6630816 | |
| COMPACTION AMERICA | 0398865 | |
| COMPACTION AMERICA | 398865 | |
| CUB CADET | 1272063X1 | |
| DEZZI | 350058 | |
| DYNAPAC | 359552 | |
| FIAT | 76042658 | |
| FIAT | 73148373 | |
| FIAT | 73144499 | |
| FIAT | 84031880 | |
| FIAT | 76076923 | |
| FIATALLIS | 73148373 | |
| FMC | 2263898 | |
| FODEN | Y05787602 | |
| FORD | 9576P163324 | |
| FORD | 9576P164384 | |
| FORD | 9576P171298 | |
| FRANKLIN | 1505682 | |
| FREIGHTLINER | DNP163324 | |
| FREIGHTLINER | DNP164384 | |
| FURUKAWA | 3098170340 | |
| GILLIG | 8238150000 | |
| GRADALL | VA31160020 | |
| GREYFRIARS | HS7607 | |
| GREYFRIARS | HS7646 | |
| GREYFRIARS | HS7644 | |
| GROVE | 9437100385 | |
| GT PIECES ET SERVICES | 2243010 | |
| HAVAM | HD8805 | |
| HITACHI | 76040367 | |
| HYSTER | 0398865 | |
| HYSTER | 398865 | |
| IMPERIAL | CV102720 | |
| IMPERIAL | CV123738 | |
| INGERSOLL RAND | 50995034 | |
| INGERSOLL RAND | 50955034 | |
| INGERSOLL RAND | 57341125 | |
| INTERNATIONAL | 1272063X1 | |
| INTERNATIONAL | 1346028C1 | |
| INTERNATIONAL | 128132H1 | |
| INTERNATIONAL | 1281327H1 | |
| INTRUPA | 83431 | |
| JACOBSEN | 5003691 | |
| JCB | 32910601 | |
| JOHN DEERE | RE34958B | |
| JOHN DEERE | RE34958 | |
| JOHN DEERE | AH114973 | |
| JOHN DEERE | 842808800 | |
| JOHN DEERE | F435202 | |
| JOHN DEERE | F435510 | |
| JOY | 853531220 | |
| KAWASAKI | ZZP171298 | |
| KAWASAKI | 3098170340 | |
| KAWASAKI | 3098170080 | |
| KAWASAKI | 3098170350 | |
| KAWASAKI | 3098170200 | |
| KAWASAKI | 4034470060 | |
| KOBELCO | KL3098170200 | |
| KOBELCO | KL3098170340 | |
| KOEHRING | 853531220 | |
| KOMATSU | 1281327H1 | |
| KOMATSU | 5044291 | |
| KRALINATOR | L252 | |
| KUKJE | TY6207A4 | |
| KUKJE | TY62070000A4 | |
| KUKJE | RE34958 | |
| LOESING | 020416 | |
| LOESING | 20416 | |
| LOESING | 21078 | |
| LOESING | 020926 | |
| LOESING | 20926 | |
| LOESING | 21076 | |
| LOESING | 021078 | |
| LOESING | 021076 | |
| LOGSET | 450628 | |
| M.D.F. SARL | MDH0194 | |
| MACDON | 42025 | |
| MANITOWOC | 427252 | |
| MANITOWOC | 4272520 | |
| MASSEY FERGUSON | 3621281M1 | |
| MASSEY FERGUSON | 3515328M92 | |
| MASSEY FERGUSON | 3515328M91 | |
| MASSEY FERGUSON | TRA8320047 | |
| MASSEY FERGUSON | 303506819 | |
| MCCORMICK | N7332 | |
| MCCORMICK | D94236 | |
| MCCORMICK | D89909 | |
| MORBARK | 26838669 | |
| MORBARK | 26838185 | |
| NABI BUS | 6301452 | |
| NEOPLAN | DON163324 | |
| NEOPLAN | DONP163324 | |
| NEW HOLLAND | 84074777 | |
| NEW HOLLAND | NP84074777 | |
| NEW HOLLAND | 76076923 | |
| NEW HOLLAND | 84239751 | |
| NEW HOLLAND | TRA8320047 | |
| NEW HOLLAND | L76076923 | |
| NEW HOLLAND | 76042658 | |
| NEW HOLLAND | 84031880 | |
| NEW HOLLAND | 75267485 | |
| OLSSONS I ELLOS AB | RE34958 | |
| P & H | P146Z460 | |
| P & H | 46Z460 | |
| PETTIBONE | TJ822808800 | |
| PETTIBONE | TJ841152800 | |
| PETTIBONE | TJ842808800 | |
| RAYGO | 0870895 | |
| REICHDRILL | PS624752 | |
| ROSCO | 34464 | |
| STEIGER | N9025 | |
| STEIGER | 906602T1 | |
| TAYLOR | 4044444 | |
| TEREX | 3515328M92 | |
| TEREX | 6100361M91 | |
| TIMBERJACK | 842808800 | |
| TIMBERJACK | 8428088 | |
| TIMBERJACK | 8411528 | |
| TIMBERJACK | 841152800 | |
| TIMBERJACK | 411528 | |
| TRACKMOBILE | 1060532 | |
| TROJAN | 460793100 | |
| TWIN DISC | 9400RM002 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 365722 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687212 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 924070 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 918802 | |
| VAPORMATIC | VPK1532 | |
| VAPORMATIC | VPK1556 | |
| VERSATILE | 00079446 | |
| VERSATILE | 79446 | |
| VERSATILE | V79446 | |
| VMC | HF164384 | |
| VMC | HF171298 | |
| WALGAHN-MOTORENTECHN | 00810983 | |
| WALGAHN-MOTORENTECHN | 00810942 | |
| WALGAHN-MOTORENTECHN | 00810940 | |
| WALGAHN-MOTORENTECHN | 810942 | |
| WALGAHN-MOTORENTECHN | 810940 | |
| WALGAHN-MOTORENTECHN | 810983 |
