• Donaldson Hydraulic Filter, Spin-On Duramax - Donaldson P164056
1 1

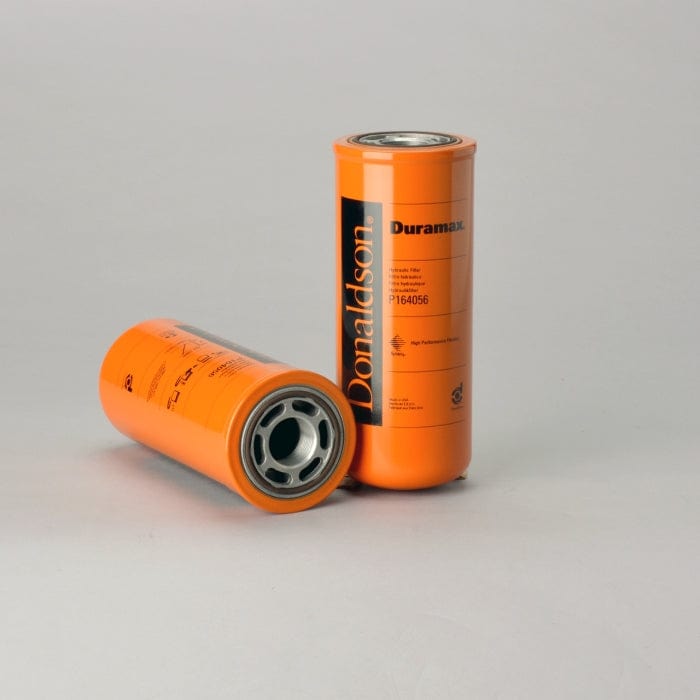

Hydraulic Filter, Spin-On Duramax - Donaldson P164056

Hydraulic Filter, Spin-On Duramax - Donaldson P164056

£81.85
£81.85
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P164056

Hydraulic Filter, Spin-On Duramax
View full details

Specifications

Attributes

  • Filter Note: Water Glycol Compatibility with Fluorocarbon Seals
  • Outer Diameter: 97 mm (3.82 inch)
  • Thread Size: 1 3/8-12 UN
  • Length: 239.78 mm (9.44 inch)
  • Gasket OD: 70 mm (2.76 inch)
  • Gasket ID: 63 mm (2.48 inch)
  • Efficiency Beta 1000: 13 micron
  • Efficiency Test Std: ISO 16889
  • Style: Spin-On
  • Series: HMK04/24
  • Brand: Duramax®
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.105 m (4.20 inch)
  • Packaged Width: 0.105 m (4.20 inch)
  • Packaged Height: 0.255 m (10.20 inch)
  • Packaged Weight: 1.269 kg (2.80 lb)
  • Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-10
  • HTS Code: 8421298090
  • UPC Code: 742330015797

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 92491
BLOUNT 10013529
CATERPILLAR 1560214
CATERPILLAR 3I0579
CATERPILLAR 1219868
HYDRO-AX 10013529
INGERSOLL RAND 39856844
INGERSOLL RAND 39911615
INGERSOLL RAND 39796974
KRALINATOR L491
OMARK MATERIAL HANDLING 10013529
PETTIBONE HY10013529
SULLAIR 02250154508
TIM 1219868
VERMEER 503125001
VMC HF164056
