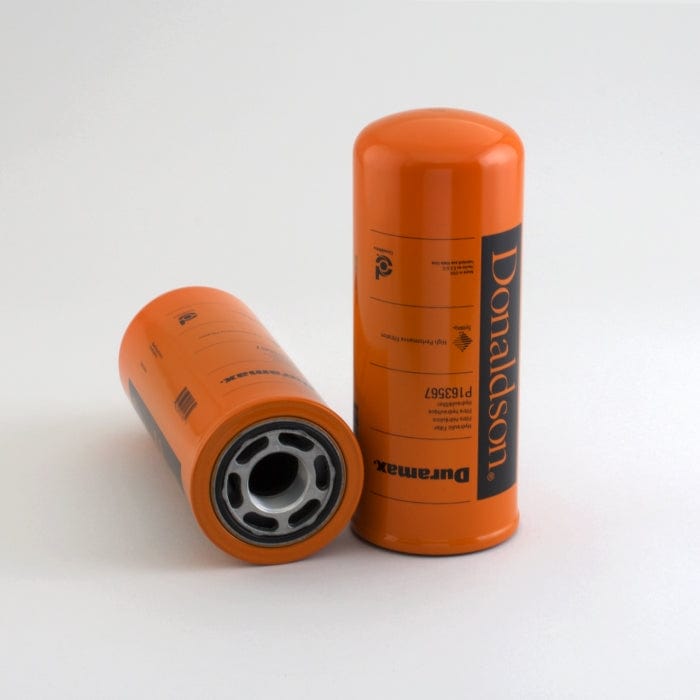

Hydraulic Filter, Spin-On Duramax - Donaldson P163567

Attributes

• Outer Diameter: 97 mm (3.82 inch)
• Thread Size: 1 3/8-12 UN
• Length: 239.78 mm (9.44 inch)
• Gasket OD: 70 mm (2.76 inch)
• Gasket ID: 63 mm (2.48 inch)
• Efficiency Beta 2: 7 micron
• Efficiency Beta 1000: 23 micron
• Efficiency Test Std: ISO 16889
• Collapse Burst: 34.5 bar (500 psi)
• Style: Spin-On
• Series: HMK04/24
• Brand: Duramax®
• Media Type: Synthetic
• Primary Application: HYSTER 398886

Packaged Dimensions

• Packaged Length: 0.103 m (4.10 inch)
• Packaged Width: 0.105 m (4.20 inch)
• Packaged Height: 0.255 m (10.20 inch)
• Packaged Weight: 1.283 kg (2.83 lb)
• Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330015650
