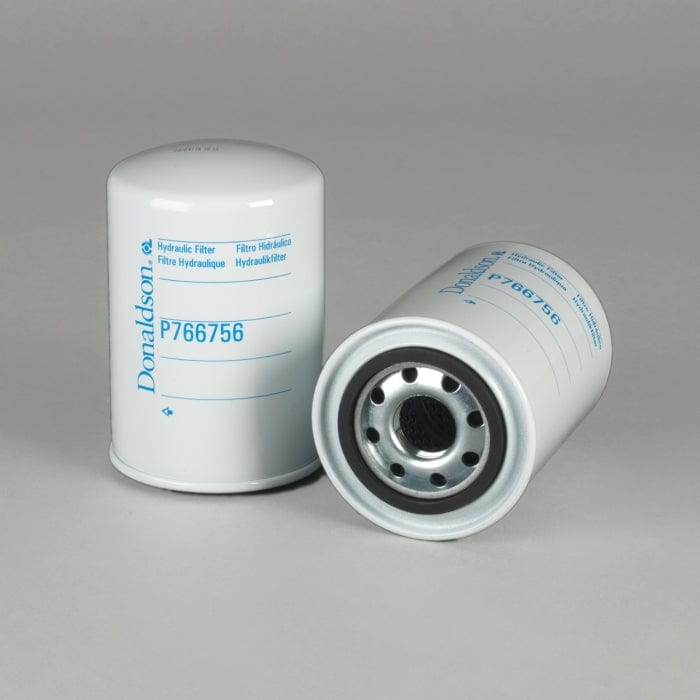

Hydraulic Filter, Spin-On - Donaldson P766756
Hydraulic Filter, Spin-On - Donaldson P766756
Regular price
£35.55
Regular price
Sale price
£35.55
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P766756
Hydraulic Filter, Spin-OnShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 96 mm (3.78 inch)
- Thread Size: 1 1/8-16 UN
- Length: 144 mm (5.67 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency Beta 200: 18 micron
- Efficiency Test Std: ISO 16889
- Collapse Burst: 15 bar (218 psi)
- Type: Full-Flow
- Style: Spin-On
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.108 m (4.33 inch)
- Packaged Width: 0.108 m (4.33 inch)
- Packaged Height: 0.158 m (6.30 inch)
- Packaged Weight: 0.860 kg (1.90 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069095-08
- HTS Code: 8421298090
- UPC Code: 742330969915
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| VOLVO | 14750657 | |
| VOLVO | 14533498 | |
| VOLVO | 20801559 | |
| WISMET | WHS104486 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| HYUNDAI HX140LC | - | EXCAVATOR | - | CUMMINS QSF3.8 | - |
| HYUNDAI HX330L | - | EXCAVATOR | - | CUMMINS QSL9 | - |
| HYUNDAI R140W9A | - | EXCAVATOR | - | CUMMINS QSB6.7-146 | - |
| HYUNDAI R220LC9A | - | EXCAVATOR | - | CUMMINS QSB6.7 | - |
| HYUNDAI R235LCR9A | - | EXCAVATOR | - | CUMMINS QSB6.7 | - |
| HYUNDAI R480LC9A | - | EXCAVATOR | - | CUMMINS QSX11.9 | - |
| VOLVO B12B | - | BUS | - | VOLVO DH12C | - |
| VOLVO B12M | - | BUS | B 12 SERIES | VOLVO DH12C | - |
| VOLVO B9L | - | BUS | - | VOLVO D9B | - |
| VOLVO B9R ELEGANCE | - | BUS | B 9 SERIES | VOLVO D9A | - |
| VOLVO B9TL | - | BUS | B 9 SERIES | VOLVO D9A | - |
| VOLVO CONSTRUCTION EQUIPMENT EC220EL | 2016 | EXCAVATOR | - | VOLVO D6J | - |
| VOLVO CONSTRUCTION EQUIPMENT EC250D | - | EXCAVATOR TRACKED | - | VOLVO D8H | - |
| VOLVO CONSTRUCTION EQUIPMENT EC300DL | - | EXCAVATOR | - | VOLVO D8HIIIB | - |
| VOLVO CONSTRUCTION EQUIPMENT EC300ENL | - | EXCAVATOR | - | VOLVO D8J | - |
| VOLVO CONSTRUCTION EQUIPMENT ECR145CL | - | EXCAVATOR | - | VOLVO D4EEAE3 | - |
| VOLVO CONSTRUCTION EQUIPMENT ECR145DL | 2014 | EXCAVATOR | - | VOLVO D4H | - |
| VOLVO CONSTRUCTION EQUIPMENT ECR235C | - | EXCAVATOR | - | VOLVO D6EAEA3 | - |
| VOLVO CONSTRUCTION EQUIPMENT ECR235D | 2013 | EXCAVATOR | - | VOLVO D6H | - |
| VOLVO CONSTRUCTION EQUIPMENT ECR235E/EL | 2016 | EXCAVATOR | - | VOLVO D6J | - |
| VOLVO CONSTRUCTION EQUIPMENT EW160C | - | EXCAVATOR WHEELED | EW SERIES | VOLVO D6E | - |
| VOLVO CONSTRUCTION EQUIPMENT EW160E | 2017 | EXCAVATOR | - | VOLVO D6J | - |
| VOLVO CONSTRUCTION EQUIPMENT EW180C | - | EXCAVATOR WHEELED | EW SERIES | VOLVO D6E | - |
| VOLVO CONSTRUCTION EQUIPMENT EW210C | - | EXCAVATOR WHEELED | EW SERIES | VOLVO D6E | - |
| VOLVO CONSTRUCTION EQUIPMENT EWR150E | - | EXCAVATOR | - | VOLVO D4J | - |
| VOLVO CONSTRUCTION EQUIPMENT EWR170E | - | EXCAVATOR | - | VOLVO D4J | - |
