• Donaldson Hydraulic Filter, Spin-On - Donaldson P765075
1 1

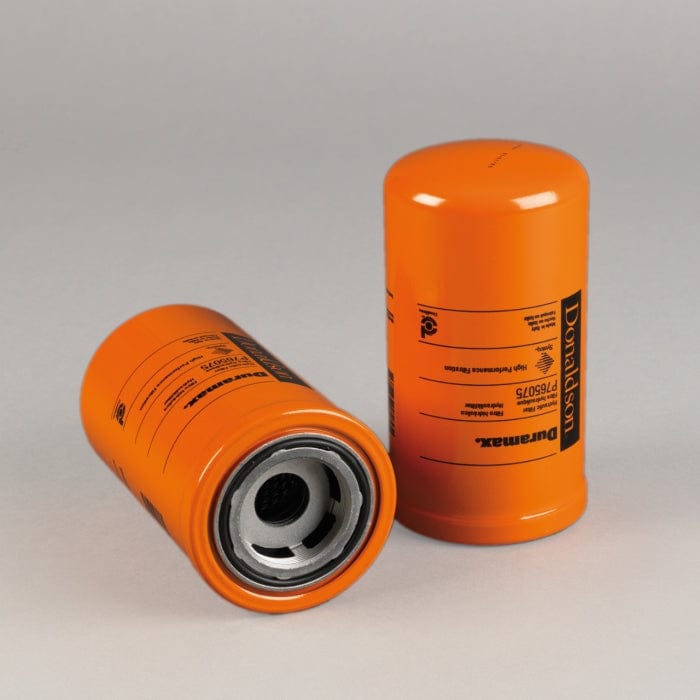

Hydraulic Filter, Spin-On - Donaldson P765075

Hydraulic Filter, Spin-On - Donaldson P765075

£40.56
£40.56
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P765075

Hydraulic Filter, Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 97 mm (3.82 inch)
  • Thread Size: 2-16 UN
  • Length: 181 mm (7.13 inch)
  • Gasket OD: 70.15 mm (2.76 inch)
  • Gasket ID: 63.1 mm (2.48 inch)
  • Efficiency Beta 200: 9 micron
  • Efficiency Beta 1000: 11 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 2.8 bar (41 psi)
  • Style: Spin-On
  • Media Type: Synthetic
  • Primary Application: DANA 4209440

Packaged Dimensions

  • Packaged Length: 0.100 m (4.00 inch)
  • Packaged Width: 0.103 m (4.10 inch)
  • Packaged Height: 0.245 m (9.80 inch)
  • Packaged Weight: 0.998 kg (2.20 lb)
  • Packaged Volume: 0.003 m3 (0.09 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-05
  • HTS Code: 84212980 90
  • UPC Code: 742330182369

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 76086226
DANA 4209440
DANA D4209440
HYSTER 1556992
JLG 8008101
KALMAR 9210280007
KALMAR 4258178279
LOESING 140522
TEREX TFC45H
TEREX Z6550537
TEREX 10035430
TOTAL SOURCE 9364243
YALE 580048036

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
HYSTER H700FT - FORKLIFT - CUMMINS - -
KALMAR DRF450-60S5 - FORKLIFT - VOLVO TAD1360VE -
KALMAR DRF450-60S5 - FORKLIFT - VOLVO TWD1240VE -
NEW HOLLAND LM1333 - TELEHANDLER - IVECO - -
NEW HOLLAND LM1440 - TELEHANDLER - IVECO - -
YALE GDP 120 DB - FORKLIFT GDP SERIES - GDP 120 DB -
