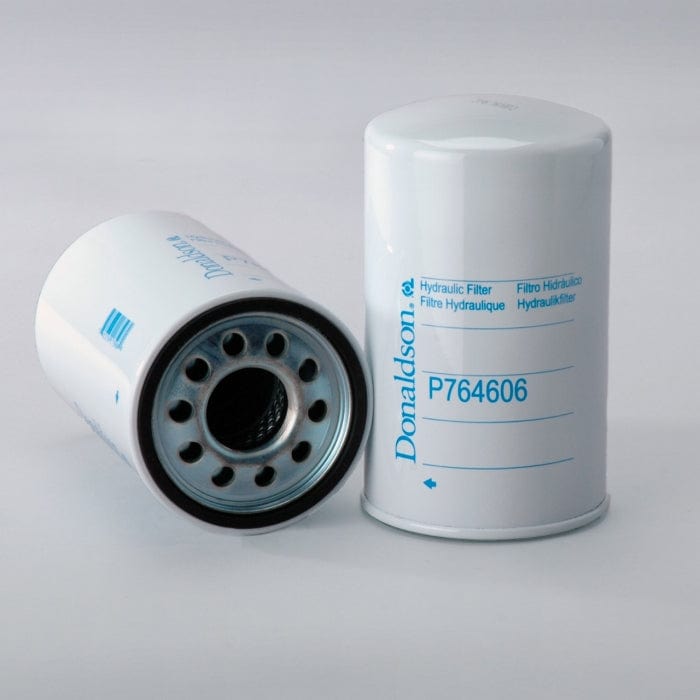

Hydraulic Filter, Spin-On - Donaldson P764606
Hydraulic Filter, Spin-On - Donaldson P764606
Regular price
£21.69
Regular price
Sale price
£21.69
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P764606
Hydraulic Filter, Spin-OnShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 108 mm (4.25 inch)
- Thread Size: M40 x 2
- Length: 183 mm (7.20 inch)
- Gasket OD: 103 mm (4.06 inch)
- Gasket ID: 93 mm (3.66 inch)
- Efficiency Beta 2: 27 micron
- Collapse Burst: 10 bar (145 psi)
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: SAME 244193500
Packaged Dimensions
- Packaged Length: 0.118 m (4.72 inch)
- Packaged Width: 0.118 m (4.72 inch)
- Packaged Height: 0.197 m (7.87 inch)
- Packaged Weight: 0.980 kg (2.16 lb)
- Packaged Volume: 0.003 m3 (0.10 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069100-05
- HTS Code: 8421298090
- UPC Code: 742330175989
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | 3551956M91 | |
| FIAAM | FT4944 | |
| MASSEY FERGUSON | 3551956M91 | |
| SAME | 244193500 | |
| SAME | 24419350010 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CARRARO 501.2 | - | TRACTOR | 500 SERIES | PERKINS 3.152 | - |
| CARRARO 520.2 | - | TRACTOR | 500 SERIES | PERKINS D3.152 | - |
| CARRARO 520.2FV | - | TRACTOR | 500 SERIES | PERKINS D3.152 | - |
| CARRARO 520.2FVR | - | TRACTOR | 500 SERIES | PERKINS D3.152 | - |
| CARRARO 520.2V | - | TRACTOR | 500 SERIES | PERKINS D3.152 | - |
| CARRARO 520.2VB | - | TRACTOR | 500 SERIES | PERKINS D3.152 | - |
| CARRARO 520.4 | - | TRACTOR | 500 SERIES | PERKINS D3.152 | - |
| CARRARO 520.4FV | - | TRACTOR | 500 SERIES | PERKINS D3.152 | - |
| CARRARO 520.4V | - | TRACTOR | 500 SERIES | PERKINS D3.152 | - |
| CARRARO 520.V | - | TRACTOR | 500 SERIES | - 520.V | - |
| CARRARO 601.2 | - | TRACTOR | 600 SERIES | PERKINS D4.203 | - |
| CARRARO 601.4 | - | TRACTOR | 600 SERIES | PERKINS D4.203 | - |
| CARRARO 620.2 | - | TRACTOR | 600 SERIES | PERKINS D4.203 | - |
| CARRARO 620.2F | - | TRACTOR | 600 SERIES | PERKINS D4.203 | - |
| CARRARO 620.2FV | - | TRACTOR | 600 SERIES | PERKINS D4.203 | - |
| CARRARO 620.4 | - | TRACTOR | 600 SERIES | PERKINS D4.203 | - |
| CARRARO 620.4F | - | TRACTOR | 600 SERIES | PERKINS D4.203 | - |
| CARRARO 620.4FV | - | TRACTOR | 600 SERIES | PERKINS D4.203 | - |
| CARRARO 720.2 | - | TRACTOR | 700 SERIES | PERKINS 4.236DR | - |
| CARRARO 720.2F | - | TRACTOR | 700 SERIES | PERKINS 4.236DR | - |
| CARRARO 720.2FV | - | TRACTOR | 700 SERIES | PERKINS 4.236DR | - |
| CARRARO 820.2 | - | TRACTOR | 800 SERIES | PERKINS 4.236 | - |
| CARRARO 820.2FV | - | TRACTOR | 800 SERIES | PERKINS 4.236 | - |
| CARRARO 820.4 | - | TRACTOR | 800 SERIES | PERKINS 4.236 | - |
| CARRARO 820.4FV | - | TRACTOR | 800 SERIES | PERKINS 4.236 | - |
| CARRARO 920.2 | - | TRACTOR | 900 SERIES | PERKINS 4.248 | - |
| CARRARO 920.4 | - | TRACTOR | 900 SERIES | PERKINS 4.248 | - |
| DEUTZ-FAHR AGROLUX 90 | - | TRACTOR | - | DEUTZ F4L913T | - |
| DEUTZ-FAHR AGROTRON 100 | - | TRACTOR | - | DEUTZ BF4M1012EC | - |
| DEUTZ-FAHR AGROTRON 105 | - | TRACTOR | - | DEUTZ BF4M2012C | - |
| DEUTZ-FAHR AGROTRON 106 | - | TRACTOR | - | DEUTZ BF6M1012E | - |
| DEUTZ-FAHR AGROTRON 1160 | - | TRACTOR | - | DEUTZ BF6M1013EC | - |
| DEUTZ-FAHR AGROTRON 118 | - | TRACTOR | - | DEUTZ BF6M2012C | - |
| DEUTZ-FAHR AGROTRON 120 | - | TRACTOR | - | DEUTZ BF6M1013E | - |
| DEUTZ-FAHR AGROTRON 128 | - | TRACTOR | - | DEUTZ BF6M1013E | - |
| DEUTZ-FAHR AGROTRON 130 | - | TRACTOR | - | DEUTZ BF6M1013EC | - |
| DEUTZ-FAHR AGROTRON 135 | - | TRACTOR | - | DEUTZ BF6M1013E | - |
| DEUTZ-FAHR AGROTRON 140 | - | TRACTOR | - | DEUTZ BF6M1013EC | - |
| DEUTZ-FAHR AGROTRON 150 | - | TRACTOR | - | DEUTZ BF6M2012C | - |
| DEUTZ-FAHR AGROTRON 155 | - | TRACTOR | - | DEUTZ BF6M1013EC | - |
| DEUTZ-FAHR AGROTRON 165.7 | - | TRACTOR | - | DEUTZ BF6M1013EC | - |
| DEUTZ-FAHR AGROTRON 610 | - | TRACTOR | - | DEUTZ TCD 2012 L6 V4 | - |
| DEUTZ-FAHR AGROTRON 620 | - | TRACTOR | - | DEUTZ TCD 2012 L6 | - |
| DEUTZ-FAHR AGROTRON M600 | - | TRACTOR | - | DEUTZ TCD 2012 L6 | - |
| DEUTZ-FAHR AGROTRON M640 | - | TRACTOR | - | DEUTZ TCD 2012 L06 V4 | - |
| HUERLIMANN TRACTORS H 358 PRESTIGE | - | TRACTOR | - | SAME - | - |
| HUERLIMANN TRACTORS H 4105 DT | - | TRACTOR | - | - H 4105 DT | - |
| HUERLIMANN TRACTORS H 468.4 | - | TRACTOR | H 400 SERIES | - H 468.4 | - |
| HUERLIMANN TRACTORS H 488 | - | TRACTOR | - | - H 488 | - |
| HUERLIMANN TRACTORS XA 656 | - | TRACTOR | XA SERIES | PERKINS 1000.3W1 | - |
| HUERLIMANN TRACTORS XT 908 | - | TRACTOR | XT SERIES | PERKINS 1000.4WT3 | - |
| HUERLIMANN TRACTORS XT 910.4 | - | TRACTOR | XT SERIES | PERKINS 1000.4WT1 | - |
| HUERLIMANN TRACTORS XT 910.6 | - | TRACTOR | XT SERIES | PERKINS 1000.6W1 | - |
| LAMBORGHINI PREMIUM 1060DTA | - | TRACTOR | - | PERKINS 1000.6W1 | - |
| LAMBORGHINI PREMIUM 950DTA | - | TRACTOR | - | PERKINS 1000.4WT2 | - |
| LANDINI 130 | - | TRACTOR | LEGEND II | PERKINS 1006.60 T | - |
| MCCORMICK V60 | - | TRACTOR | V SERIES | PERKINS 903.27 | - |
| MCCORMICK V65 | - | TRACTOR | V SERIES | PERKINS 903.27 | - |
| MCCORMICK V70 | - | TRACTOR | V SERIES | PERKINS 1004.40 | - |
| MCCORMICK V75 | - | TRACTOR | V SERIES | PERKINS 1104C-44 | - |
| MCCORMICK V80 | - | TRACTOR | V SERIES | PERKINS 1004.42 | - |
| MCCORMICK V85 | - | TRACTOR | V SERIES | PERKINS 1104C-44 | - |
| SAME DORODO 60 | - | TRACTOR | - | SAME 1000.3A5 | - |
| SAME EXPLORER 70 C | - | TRACTOR | - | SAME 1000.4A | - |
| SAME EXPLORER 90 | - | TRACTOR | - | SAME 1000.4A | - |
| SAME EXPLORER 90 C | - | TRACTOR | - | SAME 1000.4A | - |
| SAME EXPLORER II 90 SP | - | TRACTOR | - | - EXPLORER II 90 SP | - |
| SAME SILVER 80 DTA | - | TRACTOR | - | SAME 1000.4A4 | - |
| SAME TITAN 145 DT | - | TRACTOR | - | SAME 1000.6ATI | - |
