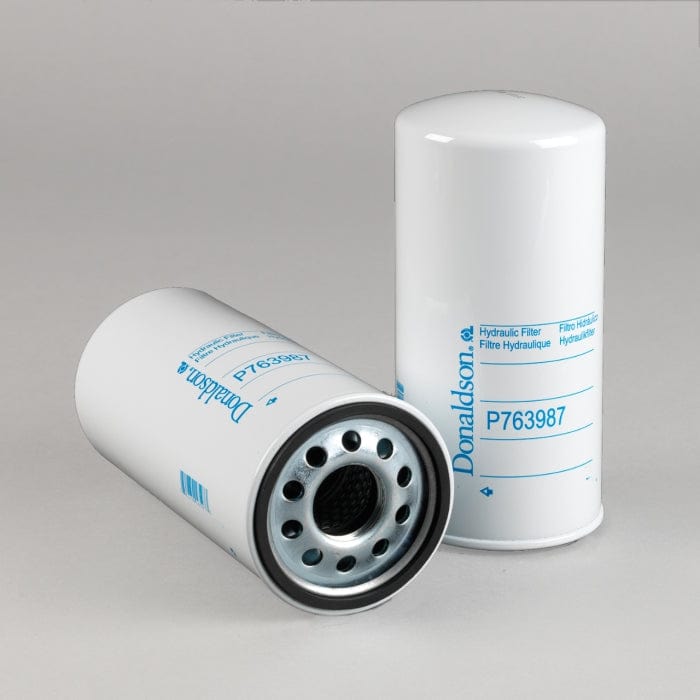

Hydraulic Filter, Spin-On - Donaldson P763987

Hydraulic Filter, Spin-On - Donaldson P763987

£23.06
£23.06
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P763987

Hydraulic Filter, Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 108 mm (4.25 inch)
  • Thread Size: M40 x 2
  • Length: 230 mm (9.06 inch)
  • Gasket OD: 103 mm (4.06 inch)
  • Gasket ID: 93 mm (3.66 inch)
  • Efficiency Beta 200: 27 micron
  • Style: Spin-On
  • Media Type: Cellulose
  • Primary Application: SAME 244192800

Packaged Dimensions

  • Packaged Length: 0.128 m (5.12 inch)
  • Packaged Width: 0.128 m (5.12 inch)
  • Packaged Height: 0.315 m (12.60 inch)
  • Packaged Weight: 1.190 kg (2.62 lb)
  • Packaged Volume: 0.005 m3 (0.19 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069095-02
  • HTS Code: 8421298090
  • UPC Code: 742330165973

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AGCO 72257931
AGCO 72270891
AGCO 72270894
NEW HOLLAND MT40347273
NEW HOLLAND MT40007638
SAME 244193900
SAME 244192600
SAME 244192800
SAME 24419280010
SAME 244191800

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
AGCO 4650 - TRACTOR 4000 SERIES SAME 3 CYL -
AGCO 4660 - TRACTOR 4000 SERIES SAME 3 CYL -
AGCO 5650 - TRACTOR 5000 SERIES SAME 3 CYL -
AGCO 5680 - TRACTOR 5000 SERIES SAME 4 CYL -
AGCO 6670 - TRACTOR 6000 SERIES SAME 4 CYL -
AGCO 6690 - TRACTOR 6000 SERIES SAME 4 CYL -
AGCO 7630 - TRACTOR 7000 SERIES SAME 6 CYL -
CARRARO 501.4 - TRACTOR 500 SERIES PERKINS 3.152 -
CARRARO 68.2 - TRACTOR 60 SERIES PERKINS 4.236 -
CARRARO 68.3 - TRACTOR 60 SERIES PERKINS 4.236 -
CARRARO 720.4 - TRACTOR 700 SERIES PERKINS 4.236DR -
CARRARO 720.4F - TRACTOR 700 SERIES PERKINS 4.236DR -
CARRARO 720.4FV - TRACTOR 700 SERIES PERKINS 4.236DR -
CARRARO 78.2 - TRACTOR 70 SERIES - 78.2 -
CARRARO 78.4 - TRACTOR 70 SERIES - 78.4 -
CARRARO 88.2 - TRACTOR 80 SERIES PERKINS 4.248 -
CARRARO 88.4 - TRACTOR 80 SERIES PERKINS 4.248 -
CARRARO 98.2 - TRACTOR 90 SERIES PERKINS 4.318 -
CARRARO 98.4 - TRACTOR 90 SERIES PERKINS 4.318 -
DEUTZ-FAHR AGROLUX 90 - TRACTOR - DEUTZ F4L913T -
HUERLIMANN TRACTORS H 307 XE - TRACTOR - PERKINS 1000.3TAT -
HUERLIMANN TRACTORS H 496 - TRACTOR H 400 SERIES - H 496 -
HUERLIMANN TRACTORS H 5116 - TRACTOR H 5000 SERIES - H 5116 -
HUERLIMANN TRACTORS H 6136 - TRACTOR H 6000 SERIES - H 6136 -
HUERLIMANN TRACTORS H 6170 - TRACTOR H 6000 SERIES - H 6170 -
HUERLIMANN TRACTORS XA 656 - TRACTOR XA SERIES PERKINS 1000.3W1 -
HUERLIMANN TRACTORS XT 105 - TRACTOR XT SERIES - XT 105 -
HUERLIMANN TRACTORS XT 908 - TRACTOR XT SERIES PERKINS 1000.4WT3 -
HUERLIMANN TRACTORS XT 910.4 - TRACTOR XT SERIES PERKINS 1000.4WT1 -
HUERLIMANN TRACTORS XT 910.6 - TRACTOR XT SERIES PERKINS 1000.6W1 -
HUERLIMANN TRACTORS XT 911 - TRACTOR - PERKINS 1000.6WT -
HUERLIMANN TRACTORS XT 913 - TRACTOR - PERKINS 1000.6WT -
HUERLIMANN TRACTORS XT 95 - TRACTOR - PERKINS 1000.4WT8 -
LAMBORGHINI CRONO 564-60DTA - TRACTOR - PERKINS 1000.3A4 -
LAMBORGHINI PREMIUM 1060DTA - TRACTOR - PERKINS 1000.6W1 -
LAMBORGHINI PREMIUM 950DTA - TRACTOR - PERKINS 1000.4WT2 -
SAME 60 II - TRACTOR - SAME 1000.3A2 -
SAME DORODO 60 - TRACTOR - SAME 1000.3A5 -
SAME EXPLORER 90 - TRACTOR - SAME 1000.4A -
SAME EXPLORER II 90 SP - TRACTOR - - EXPLORER II 90 SP -
SAME SILVER 80 DTA - TRACTOR - SAME 1000.4A4 -
