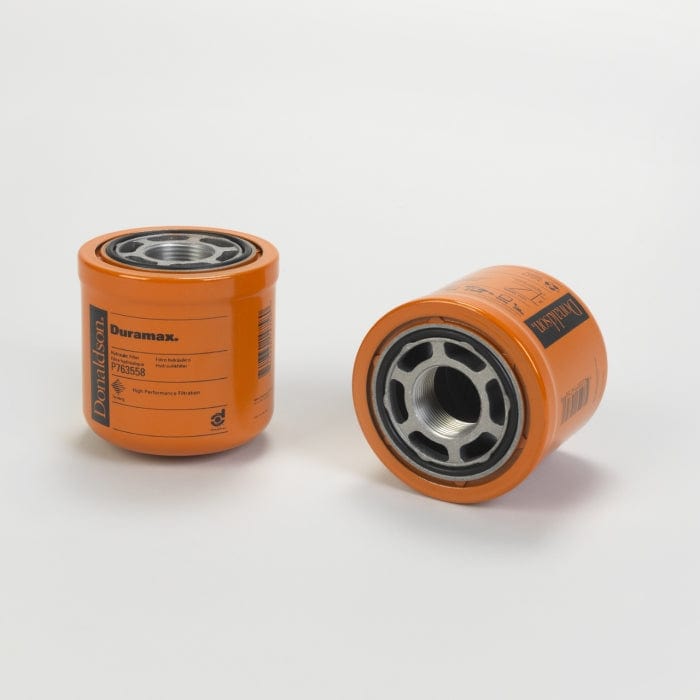

Hydraulic Filter, Spin-On - Donaldson P763558

Hydraulic Filter, Spin-On - Donaldson P763558

£25.46
£25.46
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P763558

Hydraulic Filter, Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 94.6 mm (3.72 inch)
  • Thread Size: 1 3/8-12 UN
  • Length: 100 mm (3.94 inch)
  • Gasket OD: 70.15 mm (2.76 inch)
  • Gasket ID: 63.1 mm (2.48 inch)
  • Efficiency Beta 200: 18 micron
  • Efficiency Beta 1000: 23 micron
  • Style: Spin-On
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.167 m (6.69 inch)
  • Packaged Weight: 0.756 kg (1.67 lb)
  • Packaged Volume: 0.002 m3 (0.06 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069095-08
  • HTS Code: 8421298090
  • UPC Code: 742330147580

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ARAMINE 7785653
CATERPILLAR 2678552
ILVA 6739284
LOESING 140365
MCCORMICK 3666256M1

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
MCCORMICK GX40-H - TRACTOR GX SERIES YANMAR 3TNE88-ELAN -
MCCORMICK GX45-H - TRACTOR GX SERIES YANMAR 4TNE84 -
MCCORMICK GX50-H - TRACTOR GX SERIES YANMAR 4TNE88-ELAN -
MCCORMICK GX55-H - TRACTOR GX SERIES YANMAR 4TNV84T -
