• Donaldson Hydraulic Filter, Spin-On - Donaldson P569381
1 1

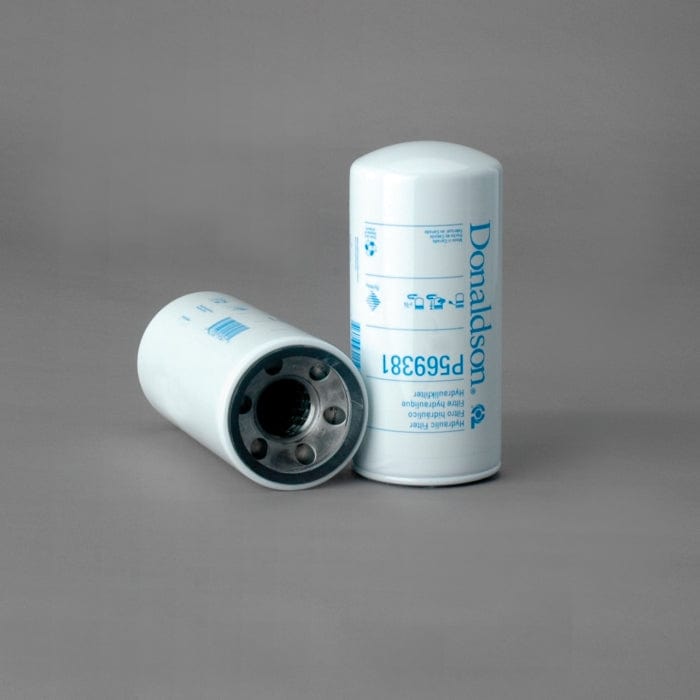

Hydraulic Filter, Spin-On - Donaldson P569381

Hydraulic Filter, Spin-On - Donaldson P569381

£54.85
£54.85
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P569381

Hydraulic Filter, Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 92.96 mm (3.66 inch)
  • Thread Size: 1 1/2-16 UN
  • Length: 204.72 mm (8.06 inch)
  • Gasket OD: 86.1 mm (3.39 inch)
  • Gasket ID: 73.4 mm (2.89 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 17 bar (250 psi)
  • Style: Spin-On
  • Media Type: Synthetic
  • Primary Application: PALL HC7400SKN8H

Packaged Dimensions

  • Packaged Length: 0.108 m (4.33 inch)
  • Packaged Width: 0.108 m (4.33 inch)
  • Packaged Height: 0.256 m (10.24 inch)
  • Packaged Weight: 0.872 kg (1.92 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330195215

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 3I1509
EAGLE PICHER 60367
FORD 9576P169392
FPC FPF4003N
FPC FPF4010G
GENIE 46014
GILLIG 8249025000
GRAINGER 1XPW4
GRAINGER 52YT33
INGERSOLL RAND 59336131
PREVOST CAR 19500583
PTI F4F040HCB
PTI F4F040GCB
PTI F4F040BCB
SWIFT SF740083UM
SWIFT SF740086UM
VICKERS V0201B2R05
VMC HF569381
Y2K FLUID POWER P1011
