• Donaldson Hydraulic Filter, Spin-On - Donaldson P565149
1 1

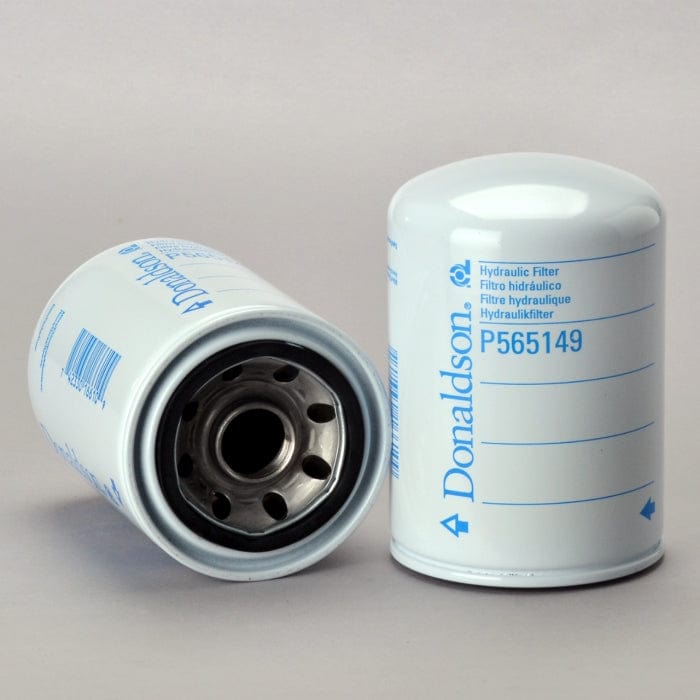

Hydraulic Filter, Spin-On - Donaldson P565149

Hydraulic Filter, Spin-On - Donaldson P565149

£21.20
£21.20
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P565149

Hydraulic Filter, Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 93 mm (3.66 inch)
  • Thread Size: 31/32-20 UN
  • Length: 136 mm (5.35 inch)
  • Gasket OD: 71.5 mm (2.81 inch)
  • Gasket ID: 61.5 mm (2.42 inch)
  • Efficiency Beta 1000: 14 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.6 bar (23 psi)
  • Style: Spin-On
  • Media Type: Synthetic
  • Primary Application: SULLAIR 250026982

Packaged Dimensions

  • Packaged Length: 0.100 m (4.00 inch)
  • Packaged Width: 0.095 m (3.80 inch)
  • Packaged Height: 0.143 m (5.70 inch)
  • Packaged Weight: 0.588 kg (1.30 lb)
  • Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330166109

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 92631
SULLAIR 250028032
SULLAIR 250040596
SULLAIR 2250050602
SULLAIR 250025524
SULLAIR 250025938
SULLAIR 250026982
SULLIVAN PALATEK 00520017
VMC HF565149

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
SULLAIR 185 - COMPRESSOR - CATERPILLAR 3054 -
SULLAIR 185 - COMPRESSOR - JOHN DEERE 4239 -
SULLAIR 185 - COMPRESSOR - GMC - -
SULLAIR 185DUQ - COMPRESSOR - JOHN DEERE 4045D -
SULLAIR 185Q - COMPRESSOR - JOHN DEERE 4239 -
