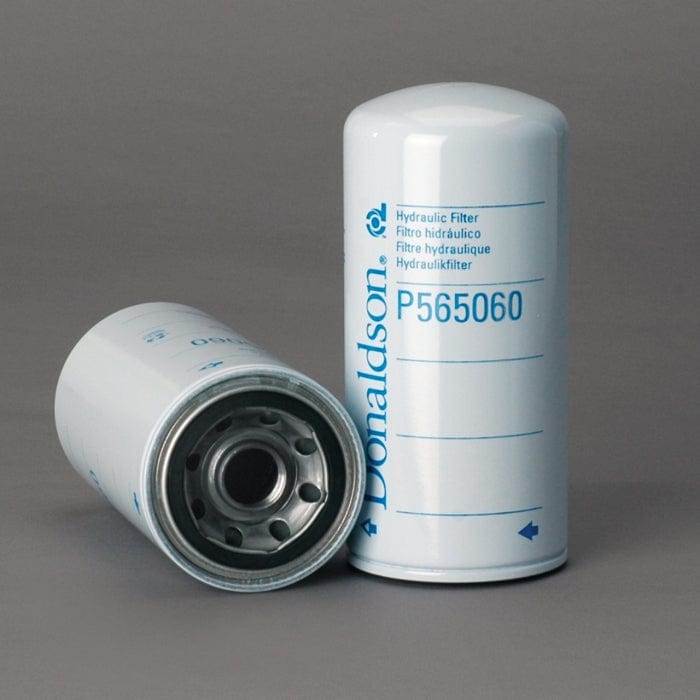

Hydraulic Filter, Spin-On - Donaldson P565060

Hydraulic Filter, Spin-On - Donaldson P565060

£11.83
£11.83
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P565060

Hydraulic Filter, Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 93 mm (3.66 inch)
  • Thread Size: 1-12 UN
  • Length: 200 mm (7.87 inch)
  • Gasket OD: 71.5 mm (2.81 inch)
  • Gasket ID: 61.5 mm (2.42 inch)
  • Efficiency Beta 2: 17 micron
  • Efficiency Beta 200: 32 micron
  • Style: Spin-On
  • Series: SP15/25
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.108 m (4.30 inch)
  • Packaged Width: 0.108 m (4.30 inch)
  • Packaged Height: 0.215 m (8.60 inch)
  • Packaged Weight: 0.674 kg (1.49 lb)
  • Packaged Volume: 0.003 m3 (0.09 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-03
  • HTS Code: 8421298090
  • UPC Code: 742330165942

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CAN-FLO RSE4025N
CATERPILLAR 3I1668
CLARK 3918336
COOPERS HSM6007
CURTIS TOLEDO RN28201
DAVIS 5381318
DENISON DE0121B2P20
DMIC DMS07BN
FPC FPE4025N
INGERSOLL RAND 59026500
JOHN DEERE AL56469
LHA SPE2525
MASSEY FERGUSON TRA5715132
MP FILTRI CSG070P25A
MP FILTRI CSG70P25A
NORMAN ULTRAPOROUS 425
PTI F4E040DCB
VAPORMATIC VPK1521
VICKERS V0121B2P20
VMC HF565060

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
INGERSOLL RAND DD-34HF - COMPACTOR - - DD-34HF -
INGERSOLL RAND R8 - COMPRESSOR - - R8 -
JOHN DEERE 2155 - TRACTOR 2000 SERIES JOHN DEERE 3179D -
JOHN DEERE 2355N - TRACTOR 2000 SERIES - 2355N -
JOHN DEERE 2555 - TRACTOR 2000 SERIES JOHN DEERE 4239T -
JOHN DEERE 2855N - TRACTOR 2000 SERIES - 2855N -
JOHN DEERE 2955 - TRACTOR 2000 SERIES - 2955 -
JOHN DEERE 3055 - TRACTOR 3000 SERIES JOHN DEERE 6359T -
JOHN DEERE 3155 - TRACTOR 3000 SERIES - 3155 -
