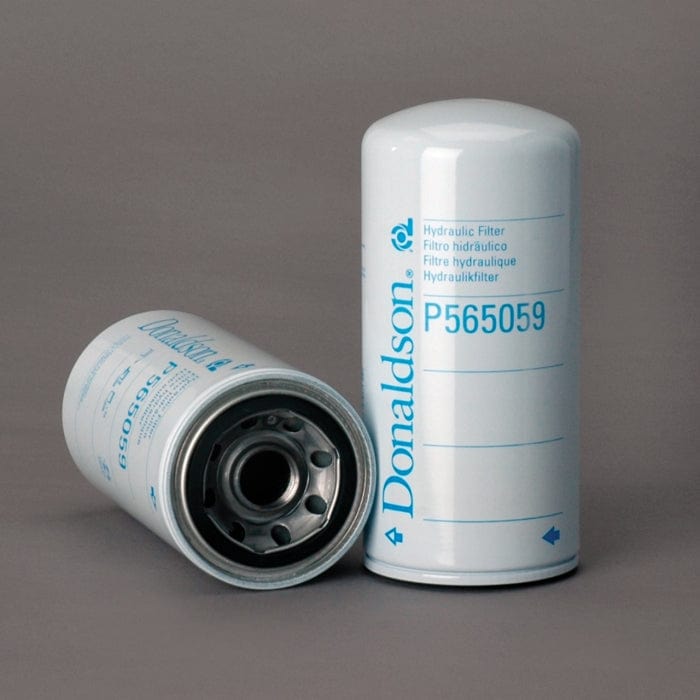

Hydraulic Filter, Spin-On - Donaldson P565059
Hydraulic Filter, Spin-On - Donaldson P565059
Regular price
£11.96
Regular price
Sale price
£11.96
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P565059
Hydraulic Filter, Spin-OnShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 91.69 mm (3.61 inch)
- Thread Size: 1-12 UN
- Length: 199.89 mm (7.87 inch)
- Gasket OD: 71.5 mm (2.81 inch)
- Gasket ID: 61.5 mm (2.42 inch)
- Efficiency Beta 2: 7 micron
- Efficiency Beta 1000: 23 micron
- Style: Spin-On
- Series: SP15/25
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.105 m (4.20 inch)
- Packaged Width: 0.103 m (4.10 inch)
- Packaged Height: 0.218 m (8.70 inch)
- Packaged Weight: 0.674 kg (1.49 lb)
- Packaged Volume: 0.002 m3 (0.09 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-09
- HTS Code: 8421298090
- UPC Code: 742330165935
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF2027 | |
| AMERICAN PARTS | 92628 | |
| BOBCAT | 6660509 | |
| BOBCAT | 6559458 | |
| BOSS INDUSTRIES | 12428093 | |
| CAN-FLO | RSE4010N | |
| CASE/CASE IH | TRA5715132 | |
| CATERPILLAR | 3I1667 | |
| CLARK | 3778897 | |
| CLARK | 6559458 | |
| CLARK,J.L. | 6559458 | |
| CLARK,J.L. | 3778897 | |
| DENISON | DE0121B2P10 | |
| DMIC | DMS07AN | |
| FPC | FPE4010N | |
| GRESEN | K22017 | |
| JACOBSEN | 557772 | |
| JLG | 7041559 | |
| JOHN DEERE | AT182209 | |
| JOHN DEERE | AT193114 | |
| LHA | SPE2510 | |
| LOESING | 25097 | |
| LOESING | 025097 | |
| MASSEY FERGUSON | 3322234M1 | |
| MCNEILUS | C6229 | |
| MP FILTRI | CSG070P10A | |
| MP FILTRI | CSG70P10A | |
| NORMAN ULTRAPOROUS | 410 | |
| PTI | F4E040CCB | |
| VICKERS | V0121B2P10 | |
| VMC | HF565059 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CLARK DPM30M | - | FORKLIFT | DPM SERIES | - DPM30M | - |
| GENIE GS-2668RT | - | SCISSOR LIFT | - | KUBOTA D905-E | - |
| GENIE GS-3268RT | - | SCISSOR LIFT | - | KUBOTA D905-B-22 | - |
| JOHN DEERE 460DC | - | SKIDDER | - | JOHN DEERE 6068H | - |
| JOHN DEERE 460DG | - | SKIDDER | - | JOHN DEERE 6068T | - |
| JOHN DEERE 540G II | - | SKIDDER | - | JOHN DEERE 6068T | - |
| JOHN DEERE 540G III | - | SKIDDER | - | JOHN DEERE 6068 | - |
| JOHN DEERE 548G II | - | SKID STEER LOADER | - | JOHN DEERE 6068T | - |
| JOHN DEERE 548G III | - | SKID STEER LOADER | - | JOHN DEERE 6068 | - |
| JOHN DEERE 560D | - | SKIDDER | - | - 560D | - |
| JOHN DEERE 560D | - | SKIDDER | - | JOHN DEERE 6081 | - |
| JOHN DEERE 640G II | - | SKIDDER | - | JOHN DEERE 6068H | - |
| JOHN DEERE 640G III | - | SKIDDER | - | - 640G III | - |
| JOHN DEERE 640G III | - | SKIDDER | - | JOHN DEERE 6081H | - |
| JOHN DEERE 640H | - | SKIDDER | - | JOHN DEERE 6068H | - |
| JOHN DEERE 648G II | - | SKIDDER | - | - 648G II | - |
| JOHN DEERE 648G III | - | SKIDDER | - | - 648G III | - |
| JOHN DEERE 648G III | - | SKIDDER | 600 SERIES | JOHN DEERE 6068H | - |
| JOHN DEERE 648G III | - | SKIDDER | - | JOHN DEERE 6081H | - |
| JOHN DEERE 748G II | - | SKIDDER | - | JOHN DEERE 6081T | - |
| JOHN DEERE 748G III | - | LOADER | - | JOHN DEERE 6081T | - |
| JOHN DEERE 748G III | - | SKIDDER | - | JOHN DEERE 6081H | - |
| JOHN DEERE 748G III | - | SKIDDER | 700 SERIES | - 748G III | - |
| JOHN DEERE 748H | - | SKIDDER | 700 SERIES | JOHN DEERE 6068H | - |
| JOHN DEERE 848H | - | SKIDDER | - | JOHN DEERE 6068H | - |
