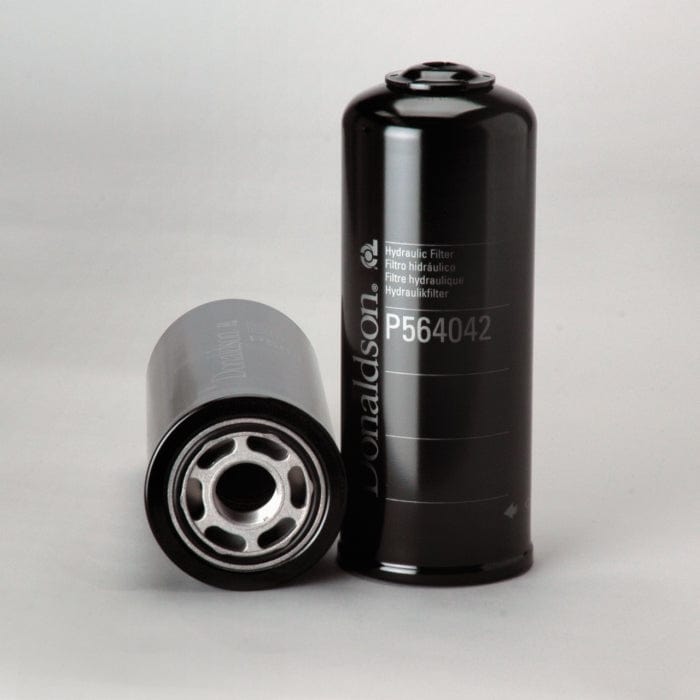

Hydraulic Filter, Spin-On - Donaldson P564042

Hydraulic Filter, Spin-On - Donaldson P564042

£59.03
£59.03
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P564042

Hydraulic Filter, Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 94 mm (3.70 inch)
  • Thread Size: 1 1/4-12 UN
  • Length: 245.36 mm (9.66 inch)
  • Gasket OD: 70.15 mm (2.76 inch)
  • Gasket ID: 63.1 mm (2.48 inch)
  • Efficiency Beta 1000: 14 micron
  • Style: Spin-On
  • Media Type: Synthetic
  • Primary Application: JOHN DEERE RE161181

Packaged Dimensions

  • Packaged Length: 0.111 m (4.45 inch)
  • Packaged Width: 0.105 m (4.21 inch)
  • Packaged Height: 0.252 m (10.08 inch)
  • Packaged Weight: 1.279 kg (2.82 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330147139

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
JOHN DEERE RE161181

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
JOHN DEERE 7630 - TRACTOR 7030 SERIES JOHN DEERE 6068H -
JOHN DEERE 7710 - TRACTOR 7000 SERIES JOHN DEERE 6081H -
JOHN DEERE 7720 - TRACTOR 7020 SERIES JOHN DEERE 6068H -
JOHN DEERE 7730 - TRACTOR 7030 SERIES JOHN DEERE 6068H -
JOHN DEERE 7810 - TRACTOR 7000 SERIES JOHN DEERE 6081H -
JOHN DEERE 7820 - TRACTOR 7020 SERIES JOHN DEERE 6081H -
JOHN DEERE 7830 - TRACTOR 7030 SERIES JOHN DEERE 6068H -
JOHN DEERE 7920 - TRACTOR 7020 SERIES JOHN DEERE 6081H -
JOHN DEERE 7930 - TRACTOR 7030 SERIES JOHN DEERE 6068H -
