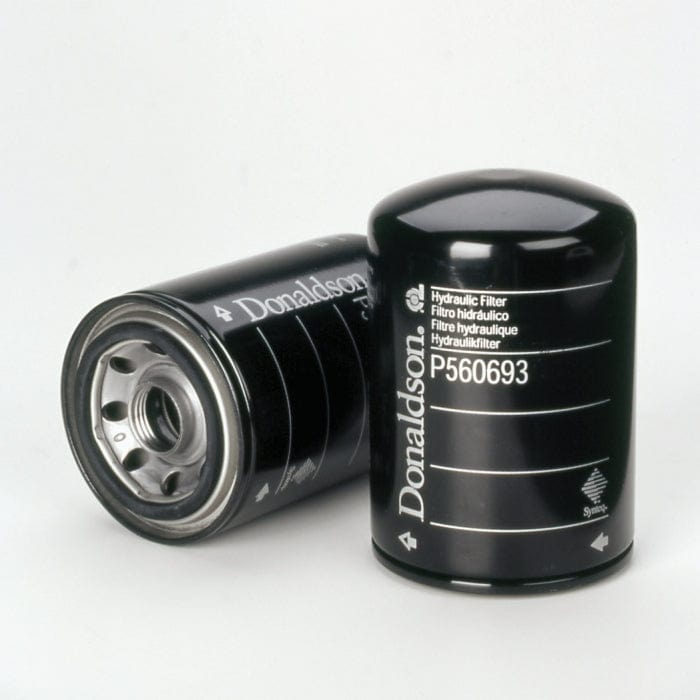

Hydraulic Filter, Spin-On - Donaldson P560693

Hydraulic Filter, Spin-On - Donaldson P560693

£22.15
£22.15
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P560693

Hydraulic Filter, Spin-On
Outer Diameter 3.66 inch (93 mm)
Thread Size 1-12 UN
Length 5.35 inch (136 mm)
Gasket OD 2.81 inch (71.5 mm)
Gasket ID 2.42 inch (61.5 mm)
Efficiency Beta 1000 11 micron
Style Spin-On
Series SP15/25
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 93 mm (3.66 inch)
  • Thread Size: 1-12 UN
  • Length: 136 mm (5.35 inch)
  • Gasket OD: 71.5 mm (2.81 inch)
  • Gasket ID: 61.5 mm (2.42 inch)
  • Efficiency Beta 1000: 11 micron
  • Style: Spin-On
  • Series: SP15/25
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.30 FT
  • Packaged Width: 0.30 FT
  • Packaged Height: 0.44 FT
  • Packaged Weight: 0.518 kg (1.14 lb)
  • Packaged Volume: 0.001 m3 (0.04 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-02
  • HTS Code: 8421298090
  • UPC Code: 742330125953

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ALLMAND BROS 920335
DITCH WITCH 1504388
GRAINGER 52YT72
INGERSOLL RAND 39359825
JLG 7041586
LHA SPE15BTA10
MP FILTRI CSG050A10A
MP FILTRI CG050A10A
THOMAS 5053576
THOMAS 053576
VERMEER 163733191
VICKERS V0121B1R10
