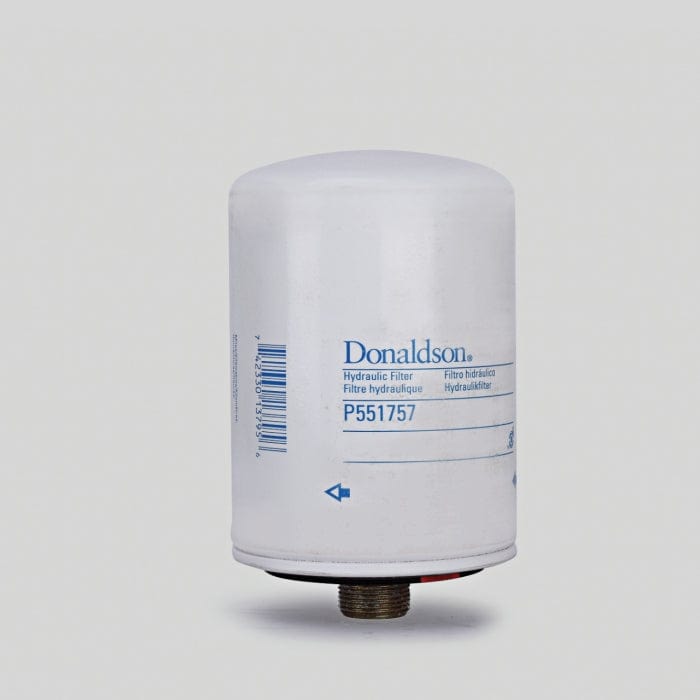

Hydraulic Filter, Spin-On - Donaldson P551757
Hydraulic Filter, Spin-On - Donaldson P551757
Regular price
£30.47
Regular price
Sale price
£30.47
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551757
Hydraulic Filter, Spin-On| Outer Diameter | 3.70 inch (93.98 mm) |
| Thread Size | M24 x 1.5 |
| Length | 5.96 inch (151.38 mm) |
| Gasket OD | 2.81 inch (71.37 mm) |
| Gasket ID | 2.46 inch (62.48 mm) |
| Efficiency Beta 2 | 19 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 30 psi (2.1 bar) |
| Style | Spin-On |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93.98 mm (3.70 inch)
- Thread Size: M24 x 1.5
- Length: 151.38 mm (5.96 inch)
- Gasket OD: 71.37 mm (2.81 inch)
- Gasket ID: 62.48 mm (2.46 inch)
- Efficiency Beta 2: 19 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 2.1 bar (30 psi)
- Style: Spin-On
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.100 m (4.00 inch)
- Packaged Width: 0.098 m (3.90 inch)
- Packaged Height: 0.188 m (7.50 inch)
- Packaged Weight: 0.749 kg (1.65 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330137956
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | 30732000 | |
| BIG A | 91201 | |
| CASE/CASE IH | 2601831 | |
| CASE/CASE IH | 47549811 | |
| COOPERS | HSM6008 | |
| COOPERS | HSM6183 | |
| FAUN | 7381004 | |
| IVECO | 42530441 | |
| JCB | 04802409 | |
| JCB | 4802409 | |
| JCB | 55030954 | |
| JLG | 1319726 | |
| JOHN DEERE | AT466863 | |
| JOHN DEERE | AT179323 | |
| KNECHT | HC10 | |
| KOEHRING | 8320103 | |
| KOMATSU | 42Y15H0592 | |
| LIEBHERR | 6425728 | |
| MANITOWOC | 01686383 | |
| OMNIQUIP PARTS WORLD WIDE | 1319726 | |
| OMNIQUIP PARTS WORLD WIDE | 1319726 | |
| ORENSTEIN & KOPPEL | 149940100 | |
| ORENSTEIN & KOPPEL | 1499401 | |
| SOPARIS | HC10 | |
| TATA | 750131056 | |
| TELCO | AT179323 | |
| VMC | HF551757 | |
| ZF | 50131012 | |
| ZF | 501232665 | |
| ZF | 750131032 | |
| ZF | 0750131032 | |
| ZF | 750131056 | |
| ZF | 750131012 | |
| ZF | 0750131012 | |
| ZF | 0750131056 | |
| ZF | 501209384 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH Farmlift 632 | 2014 | TELEHANDLER | - | FPT INDUSTRIAL - | T4 |
| CASE/CASE IH Farmlift 635 | 2014 | TELEHANDLER | - | FPT INDUSTRIAL - | T4 |
| CASE/CASE IH Farmlift 735 | 2014 | TELEHANDLER | - | FPT INDUSTRIAL - | T4 |
| CASE/CASE IH Farmlift 742 | 2014 | TELEHANDLER | - | FPT INDUSTRIAL - | T4 |
| CASE/CASE IH Farmlift 935 | 2014 | TELEHANDLER | - | FPT INDUSTRIAL - | T4 |
| JOHN DEERE 210 LE | - | BACKHOE LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 210E | - | BACKHOE LOADER | - | JOHN DEERE 4045 | - |
| JOHN DEERE 210ELL | - | BACKHOE LOADER | - | - 210ELL | - |
| JOHN DEERE 210LJ | - | LOADER | 200 SERIES | JOHN DEERE 4045H | - |
| JOHN DEERE 310 SE | - | BACKHOE LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 310E | - | BACKHOE LOADER | - | JOHN DEERE 4045D | - |
| JOHN DEERE 310G | - | BACKHOE LOADER | - | JOHN DEERE 4045D | - |
| JOHN DEERE 310G | - | BACKHOE LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 310G | - | BACKHOE LOADER | - | - 310G | - |
| JOHN DEERE 310J | - | BACKHOE LOADER | - | JOHN DEERE 4045D | - |
| JOHN DEERE 310SG | - | BACKHOE LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 310SG | - | BACKHOE LOADER | - | JOHN DEERE 4045D | - |
| JOHN DEERE 310SG | - | BACKHOE LOADER | - | - 310SG | - |
| JOHN DEERE 310SJ | - | BACKHOE LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 315 SE | - | BACKHOE LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 315S | - | BACKHOE LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 315SG | - | BACKHOE LOADER | - | JOHN DEERE 4045D | - |
| JOHN DEERE 315SG | - | BACKHOE LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 410E | - | BACKHOE LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 410G | - | BACKHOE LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 410J | - | TRACTOR | 400 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 485E | - | FORKLIFT | - | JOHN DEERE 4045DT | - |
| JOHN DEERE 485E | - | FORKLIFT | 400 SERIES | JOHN DEERE 4045D | - |
| JOHN DEERE 486E | - | FORKLIFT | - | JOHN DEERE 4045DT | - |
| JOHN DEERE 488E | - | FORKLIFT | - | JOHN DEERE 4045DT | - |
| JOHN DEERE 710D | - | BACKHOE LOADER | - | JOHN DEERE 6059T | - |
| JOHN DEERE 710G | - | BACKHOE LOADER | - | JOHN DEERE 4045 | - |
| JOHN DEERE 710G | - | BACKHOE LOADER | - | JOHN DEERE 6068T | - |
| JOHN DEERE 710J | - | BACKHOE LOADER | - | JOHN DEERE 6068T | - |
| JOHN DEERE 710J | - | BACKHOE LOADER | - | JOHN DEERE 6068T | - |
| JOHN DEERE 710K | - | BACKHOE LOADER | - | JOHN DEERE 6068H | - |
