• Donaldson Hydraulic Filter, Spin-On - Donaldson P550605
1 1

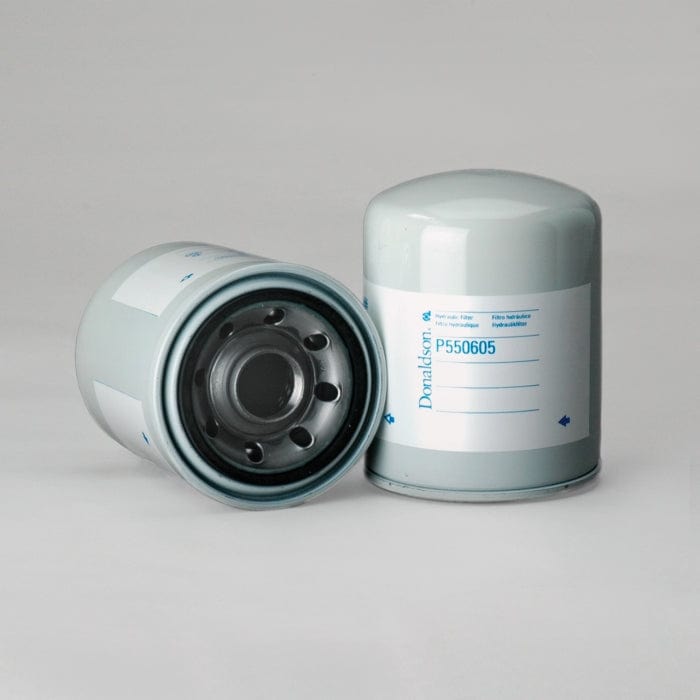

Hydraulic Filter, Spin-On - Donaldson P550605

Hydraulic Filter, Spin-On - Donaldson P550605

£152.53
£152.53
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550605

Hydraulic Filter, Spin-On
Outer Diameter 5.50 inch (139.7 mm)
Thread Size 1 1/2-16 UN
Length 7.00 inch (177.8 mm)
Gasket OD 4.36 inch (110.74 mm)
Gasket ID 3.96 inch (100.58 mm)
Efficiency Beta 2 17 micron
Bypass Valve Yes
Bypass Valve Setting LR 22 psi (1.5 bar)
Style Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 139.7 mm (5.50 inch)
  • Thread Size: 1 1/2-16 UN
  • Length: 177.8 mm (7.00 inch)
  • Gasket OD: 110.74 mm (4.36 inch)
  • Gasket ID: 100.58 mm (3.96 inch)
  • Efficiency Beta 2: 17 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Style: Spin-On

Packaged Dimensions

  • Packaged Length: 0.148 m (5.91 inch)
  • Packaged Width: 0.148 m (5.91 inch)
  • Packaged Height: 0.187 m (7.48 inch)
  • Packaged Weight: 1.641 kg (3.62 lb)
  • Packaged Volume: 0.004 m3 (0.15 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330143117

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO C451
AMERICAN PARTS 741
BIG A 91405
BOSCH-REXROTH 1457434129
CHAMP 167
DEMAG 10656774
GREYFRIARS HS7698
JOHN DEERE DQ12161
KNECHT HC18
KNECHT HC27
KRALINATOR K895
KRALINATOR 4K895
LEROI MD15071
MAN 51055040092
MERCEDES-BENZ 2771295
NEOPART NEOH7946
NEW HOLLAND 80447407
PERMATIC FH401V
RENAULT VI 5010113235
SOPARIS HC27
SOPARIS HC18
UNIVERSAL COACH PARTS 90439911CG
VMC HF550605
VOITH 90402010
VOITH 6770859226
VOITH 90403010
VOITH 9043311
VOITH 90439910
VOITH 9043911
VOITH 90439911
VOKES 90403010
VOKES 90439910

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
JOHN DEERE 1175 - COMBINE - JOHN DEERE 6059T -
JOHN DEERE 1175 - COMBINE - JOHN DEERE 6068T -
NEW HOLLAND TF42 - COMBINE - IVECO 8361T -
NEW HOLLAND TF44 - COMBINE - - TF44 -
