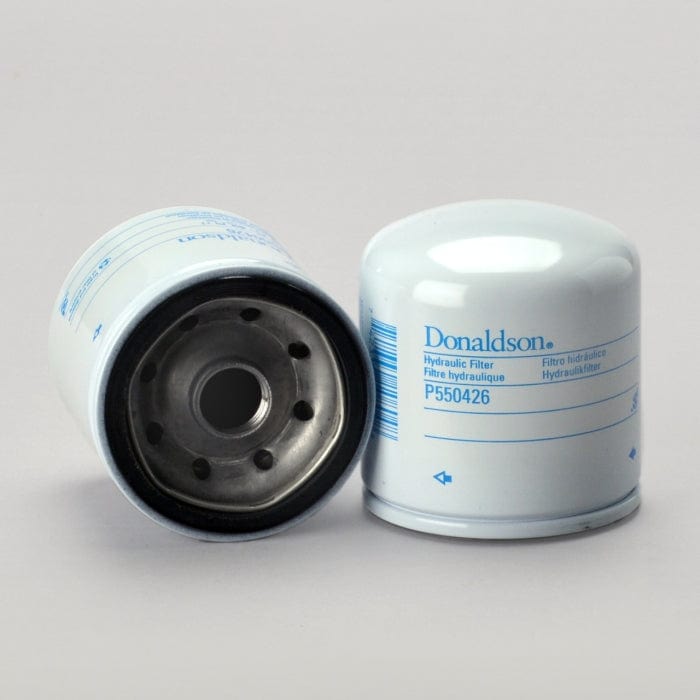

Hydraulic Filter, Spin-On - Donaldson P550426

Hydraulic Filter, Spin-On - Donaldson P550426

£9.44
£9.44
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550426

Hydraulic Filter, Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 76.8 mm (3.02 inch)
  • Thread Size: 3/4-16 UN
  • Length: 82.8 mm (3.26 inch)
  • Gasket OD: 70.2 mm (2.76 inch)
  • Gasket ID: 60.5 mm (2.38 inch)
  • Efficiency Beta 2: 7 micron
  • Efficiency Beta 1000: 23 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.2 bar (17 psi)
  • Bypass Valve Setting HR: 1.6 bar (23 psi)
  • Style: Spin-On
  • Media Type: Cellulose
  • Primary Application: ZINGA BE1018

Packaged Dimensions

  • Packaged Length: 0.076 m (3.05 inch)
  • Packaged Width: 0.081 m (3.25 inch)
  • Packaged Height: 0.084 m (3.35 inch)
  • Packaged Weight: 0.306 kg (0.68 lb)
  • Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-10
  • HTS Code: 8421298090
  • UPC Code: 742330108048

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AGCO AG121778
AMERICAN PARTS 92269
BIG A 92269
BUHLER VERSATILE M330576
LHA SPE0710C
PETTIBONE LP39022A
TORO 1633750
VMC HF550426

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
AG CHEM EQUIPMENT 1064 - SPRAYER - CATERPILLAR 3126 -
